SERVICE MANUAL –Post eVolve Smart
7 - CHARGE POINT SLAVE DEVICES
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 27
Web: www.circontrol.com – E-mail: circontrol@circontrol.com

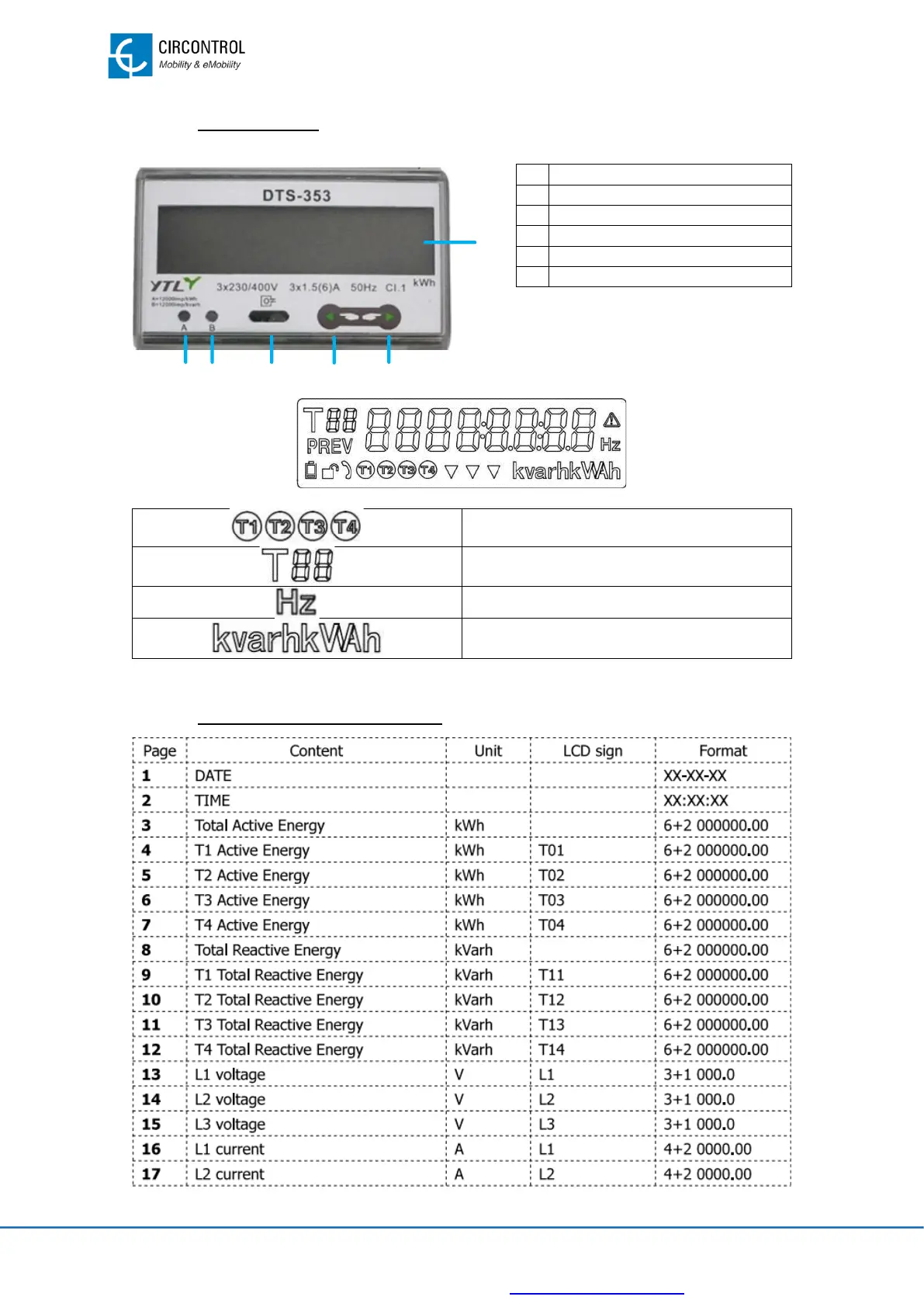

7.2.4.1 LCD DISPLAY
Present tariff indicator
Content indicate, it can be shown T1/ T2/
T3/ T4, L1/ L2/ L3
Frequency display
kWh unit display, it can be shown kW,
kWh, Kvarh, V, A and kVA
7.2.4.2 ENERGY METER CONTENT
A
Active pulse LED
B
Reactive pulse LED
C
Near infrared communication
D
Reverse page button
E
Forward page button
F
LCD Display
A B C D E
F
