SERVICE MANUAL –Post eVolve Smart
7 - CHARGE POINT SLAVE DEVICES
CIRCONTROL, S.A. – Innovació, 3 – 08232 – Viladecavalls (Barcelona)
Tel.: +34 937 362 940 – Fax: +34 937 362 941 32
Web: www.circontrol.com – E-mail: circontrol@circontrol.com

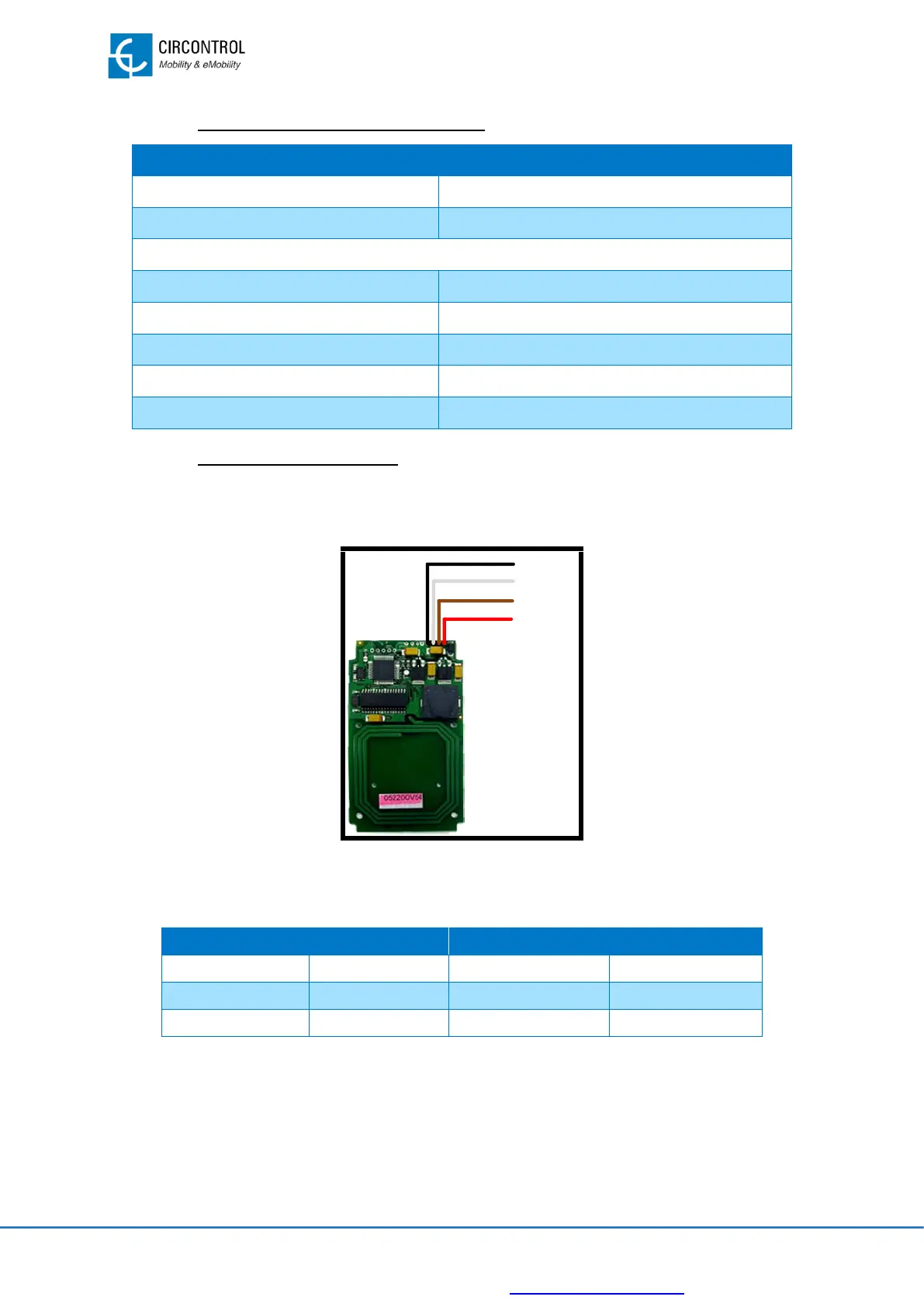

7.4.1.2 TECHNICAL CHARACTERISTICS
POWER SUPPLY
Voltage
12V DC
Working temperature
-10…+60ºC
SERIAL
Type
RS-485
Baud rate supported
4800, 9600, 19200 bps
Default peripheral number
1
Default baud rate
9600 bps
Standards
ISO 14443 A & B
7.4.1.3 WIRING CONNECTION
Following image shows a detailed schematic of the connections in the CCL1-MINI PCB
and to the 12 V Power Supply device (8).
-VDC
+VDC
RS485 -B
RS485 +A
Following image shows a detailed schematic of the connections in the CCL1-MINI PCB.
Please, refer to “ TECHNICAL DATA” section for more details.
POWER SUPPLY
RS-485 COMMUNICATIONS
WIRE COLOUR
SIGNAL
WIRE COLOUR
SIGNAL
Red
V+ (12V)
Brown
A (+)
Black
V- (GND)
White
B (-)
