Appendix B Transceivers, Module Connectors, and Cable Specifications
Transceivers

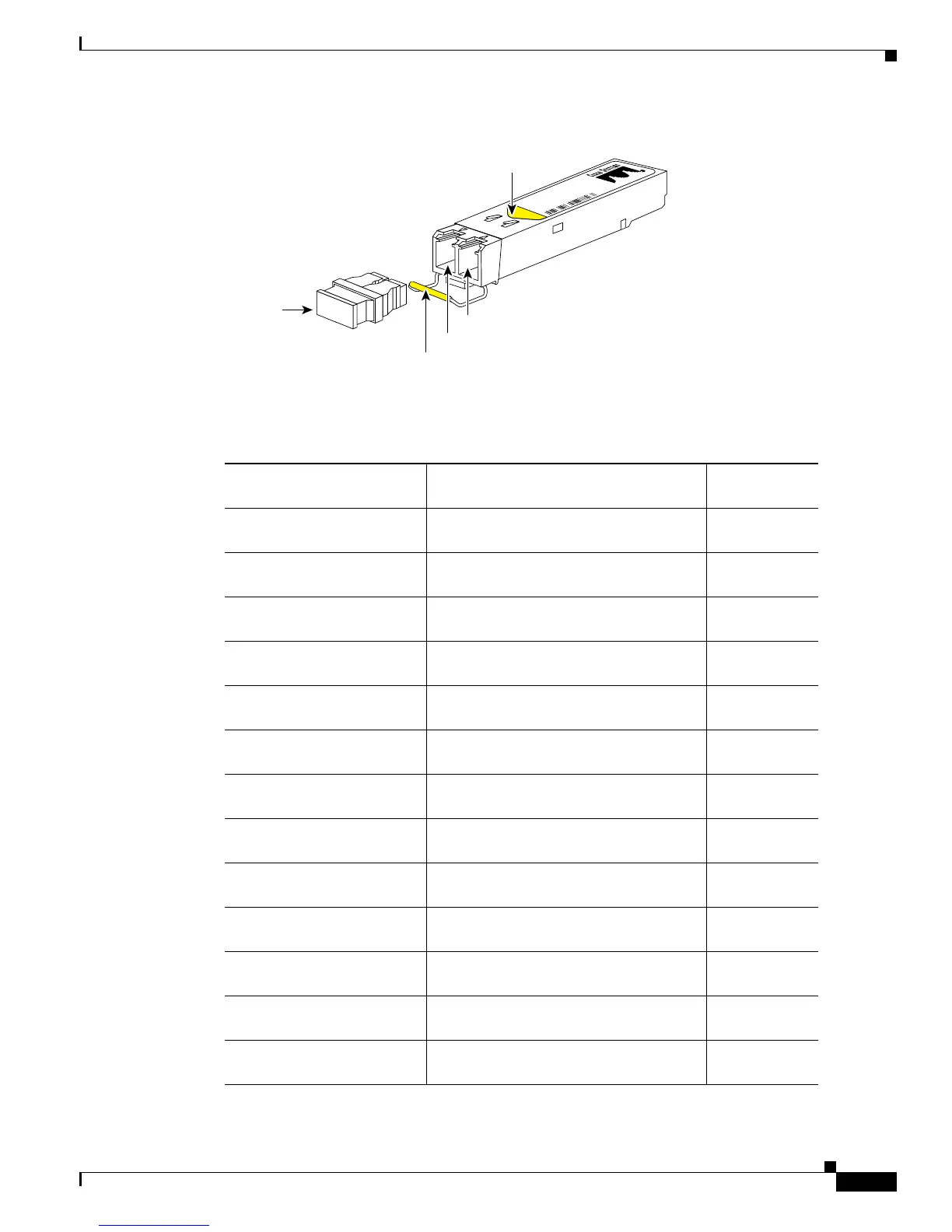

Figure B-9 CWDM SFP Transceiver
Table B-11 DWDM XENPAK Transceiver Module Product Numbers and
ITU Channel Numbers
DWDM XENPAK
Product Number Description ITU Channel
DWDM-XENPAK-60.61 1000BASE-DWDM 1560.61 nm
XENPAK
21
DWDM-XENPAK-59.79 1000BASE-DWDM 1559.79 nm
XENPAK
22
DWDM-XENPAK-58.98 1000BASE-DWDM 1558.98 nm
XENPAK
23
DWDM-XENPAK-58.17 1000BASE-DWDM 1558.17 nm
XENPAK
24
DWDM-XENPAK-56.55 1000BASE-DWDM 1556.55 nm
XENPAK
26
DWDM-XENPAK-55.75 1000BASE-DWDM 1555.75 nm
XENPAK
27
DWDM-XENPAK-54.94 1000BASE-DWDM 1554.94 nm
XENPAK
28
DWDM-XENPAK-54.13 1000BASE-DWDM 1554.13 nm
XENPAK
29
DWDM-XENPAK-52.52 1000BASE-DWDM 1552.52 nm
XENPAK
31
DWDM-XENPAK-51.72 1000BASE-DWDM 1551.72 nm
XENPAK
32
DWDM-XENPAK-50.92 1000BASE-DWDM 1550.92 nm
XENPAK
33
DWDM-XENPAKXENPAK-
50.12
1000BASE-DWDM 1550.12 nm
XENPAK
34
DWDM-XENPAK-48.51 1000BASE-DWDM 1548.51 nm
XENPAK
36
113753
CW
DM
-SFP-1470-2G
Class 1 21CFR1040.10
LN#50 7/01 03-13
S/N: OH1233456
Color arrow on label
Receive optical bore
Transmit optical bore
Bail clasp
Dustplug
