B-14
Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix B Transceivers, Module Connectors, and Cable Specifications
Transceivers

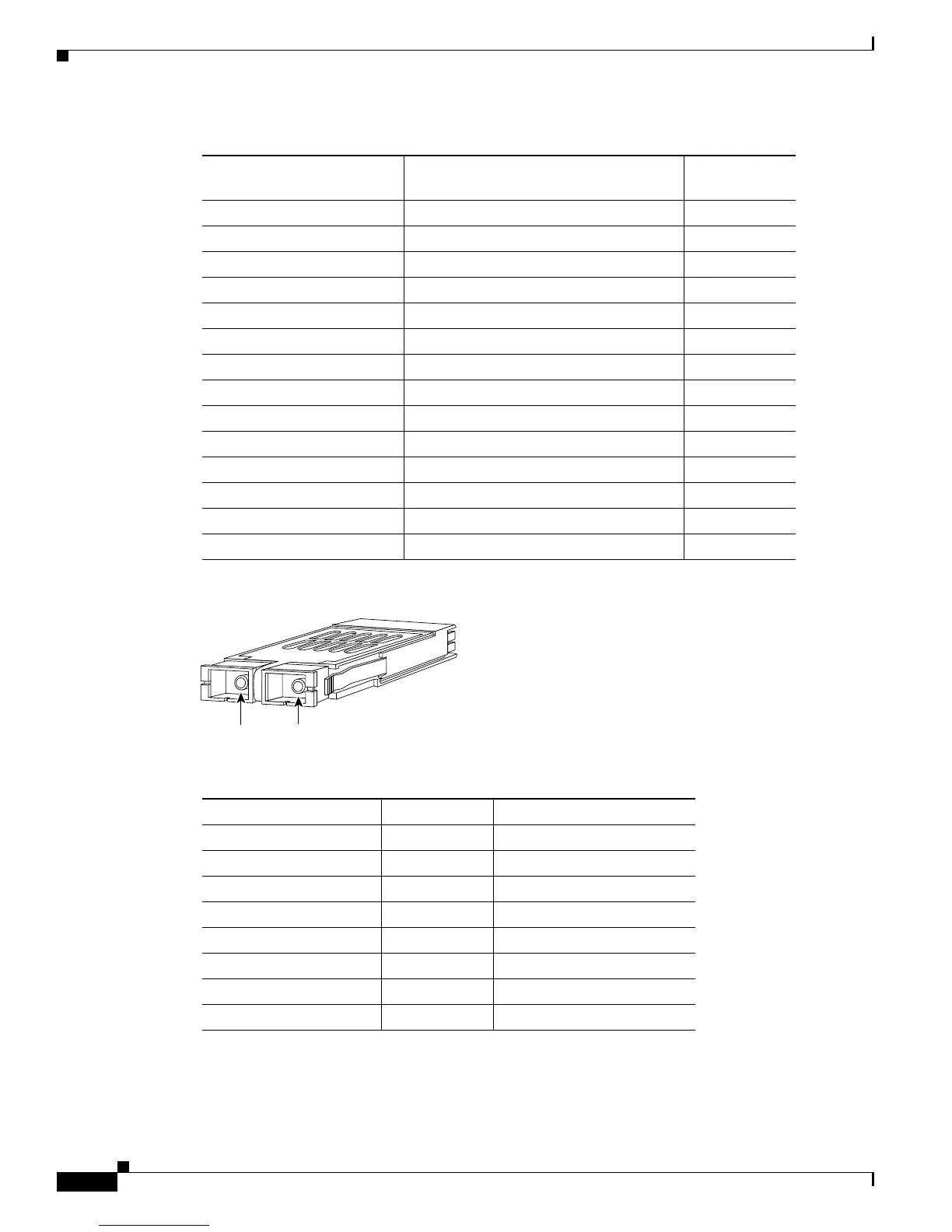

Figure B-8 DWDM GBIC Transceiver Module
DWDM-GBIC-42.94 1000BASE-DWDM 1542.94 nm GBIC 43
DWDM-GBIC-42.14 1000BASE-DWDM 1542.14 nm GBIC 44
DWDM-GBIC-40.56 1000BASE-DWDM 1540.56 nm GBIC 46
DWDM-GBIC-39.77 1000BASE-DWDM 1539.77 nm GBIC 47
DWDM-GBIC-39.98 1000BASE-DWDM 1539.98 nm GBIC 48
DWDM-GBIC-38.19 1000BASE-DWDM 1538.19 nm GBIC 49
DWDM-GBIC-36.61 1000BASE-DWDM 1536.61 nm GBIC 51
DWDM-GBIC-35.82 1000BASE-DWDM 1535.82 nm GBIC 52
DWDM-GBIC-35.04 1000BASE-DWDM 1535.04 nm GBIC 53
DWDM-GBIC-34.25 1000BASE-DWDM 1534.25 nm GBIC 54
DWDM-GBIC-32.68 1000BASE-DWDM 1532.68 nm GBIC 56
DWDM-GBIC-31.90 1000BASE-DWDM 1531.90 nm GBIC 57
DWDM-GBIC-31.12 1000BASE-DWDM 1531.12 nm GBIC 58
DWDM-GBIC-30.33 1000BASE-DWDM 1530.33 nm GBIC 59
Table B-9 DWDM GBIC Transceiver Module Product Numbers and ITU Channel Numbers (continued)
DWDM GBIC
Product Number Description ITU Channel
Table B-10 CWDM SFP Transceiver Modules
Model Number Color Code CWDM GBIC Wavelength
CWDM-SFP-1470= Gray 1470 nm laser, single-mode
CWDM-SFP-1490= Violet 1490 nm laser, single-mode
CWDM-SFP-1510= Blue 1510 nm laser, single-mode
CWDM-SFP-1530= Green 1530 nm laser, single-mode
CWDM-SFP-1550= Yellow 1550 nm laser, single-mode
CWDM-SFP-1570= Orange 1570 nm laser, single-mode
CWDM-SFP-1590= Red 1590 nm laser, single-mode
CWDM-SFP-1610= Brown 1610 nm laser, single-mode
36494
Receiver Transmitter
