Cisco 6509 - Catalyst Chassis Switch - Page 285

B-13
Catalyst 6500 Series Switches Installation Guide
OL-5781-04
Appendix B Transceivers, Module Connectors, and Cable Specifications
Transceivers

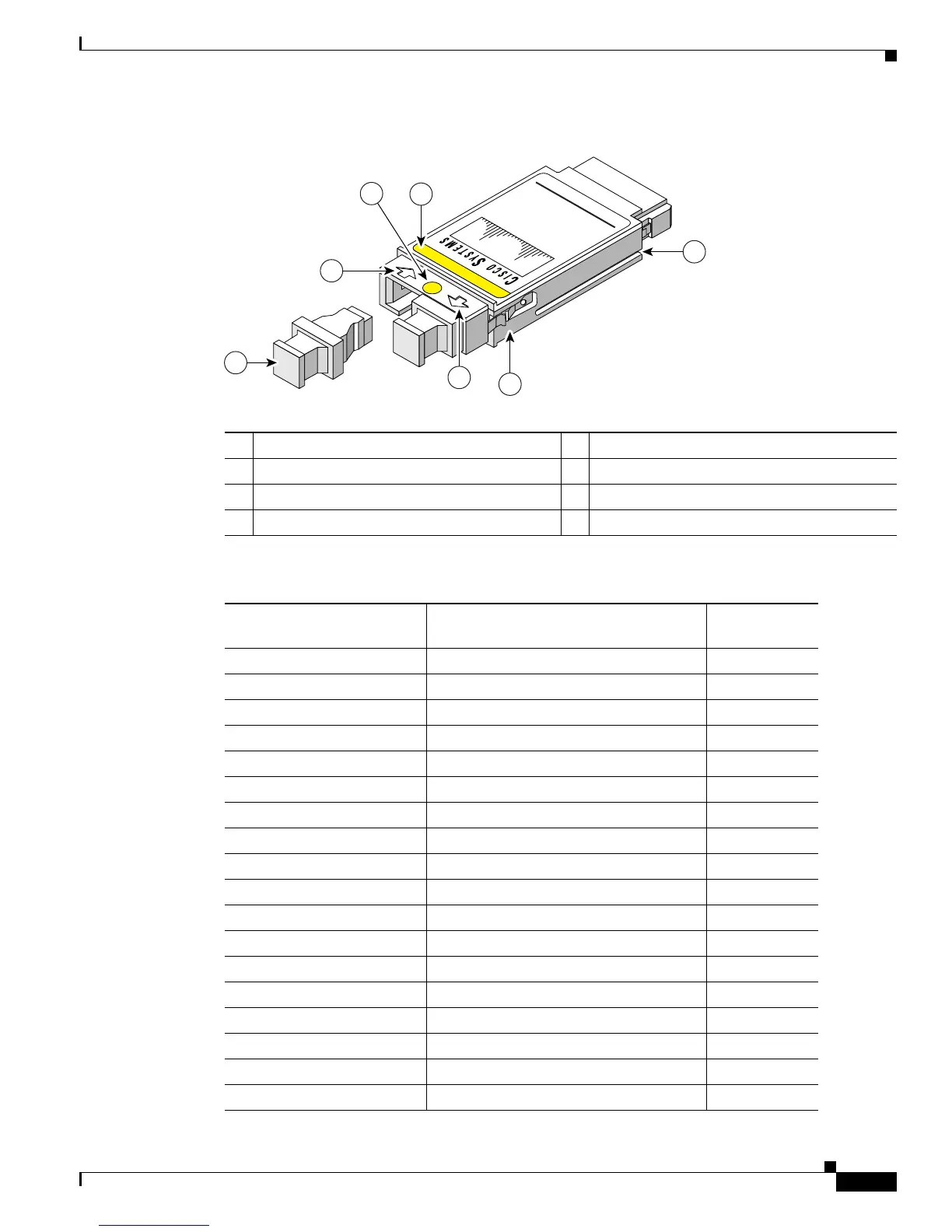

Figure B-7 CWDM GBIC Transceiver
1 Color arrow on label 5 Optical bore dust plug
2 Alignment groove 6 Receive optical bore
3 Spring clip 7 Color dot
4 Transmit optical bore
Table B-9 DWDM GBIC Transceiver Module Product Numbers and ITU Channel Numbers
DWDM GBIC
Product Number Description ITU Channel
DWDM-GBIC-60.61 1000BASE-DWDM 1560.61 nm GBIC 21
DWDM-GBIC-59.79 1000BASE-DWDM 1559.79 nm GBIC 22
DWDM-GBIC-58.98 1000BASE-DWDM 1558.98 nm GBIC 23
DWDM-GBIC-58.17 1000BASE-DWDM 1558.17 nm GBIC 24
DWDM-GBIC-56.55 1000BASE-DWDM 1556.55 nm GBIC 26
DWDM-GBIC-55.75 1000BASE-DWDM 1555.75 nm GBIC 27
DWDM-GBIC-54.94 1000BASE-DWDM 1554.94 nm GBIC 28
DWDM-GBIC-54.13 1000BASE-DWDM 1554.13 nm GBIC 29
DWDM-GBIC-52.52 1000BASE-DWDM 1552.52 nm GBIC 31
DWDM-GBIC-51.72 1000BASE-DWDM 1551.72 nm GBIC 32
DWDM-GBIC-50.92 1000BASE-DWDM 1550.92 nm GBIC 33
DWDM-GBIC-50.12 1000BASE-DWDM 1550.12 nm GBIC 34
DWDM-GBIC-48.51 1000BASE-DWDM 1548.51 nm GBIC 36
DWDM-GBIC-47.72 1000BASE-DWDM 1547.72 nm GBIC 37
DWDM-GBIC-46.92 1000BASE-DWDM 1546.92 nm GBIC 38
DWDM-GBIC-46.12 1000BASE-DWDM 1546.12 nm GBIC 39
DWDM-GBIC-44.53 1000BASE-DWDM 1544.53 nm GBIC 41
DWDM-GBIC-43.73 1000BASE-DWDM 1543.73 nm GBIC 42
SINGLE-MODE
1000BASE-CWDM GBIC
CWDM-GBIC-1550=
2
5
6
1
7
3
4
84472
