Catalyst 6500 Series Switch Module Installation Guide
78-15725-02
Chapter 1 Product Overview
Voice-Related Modules

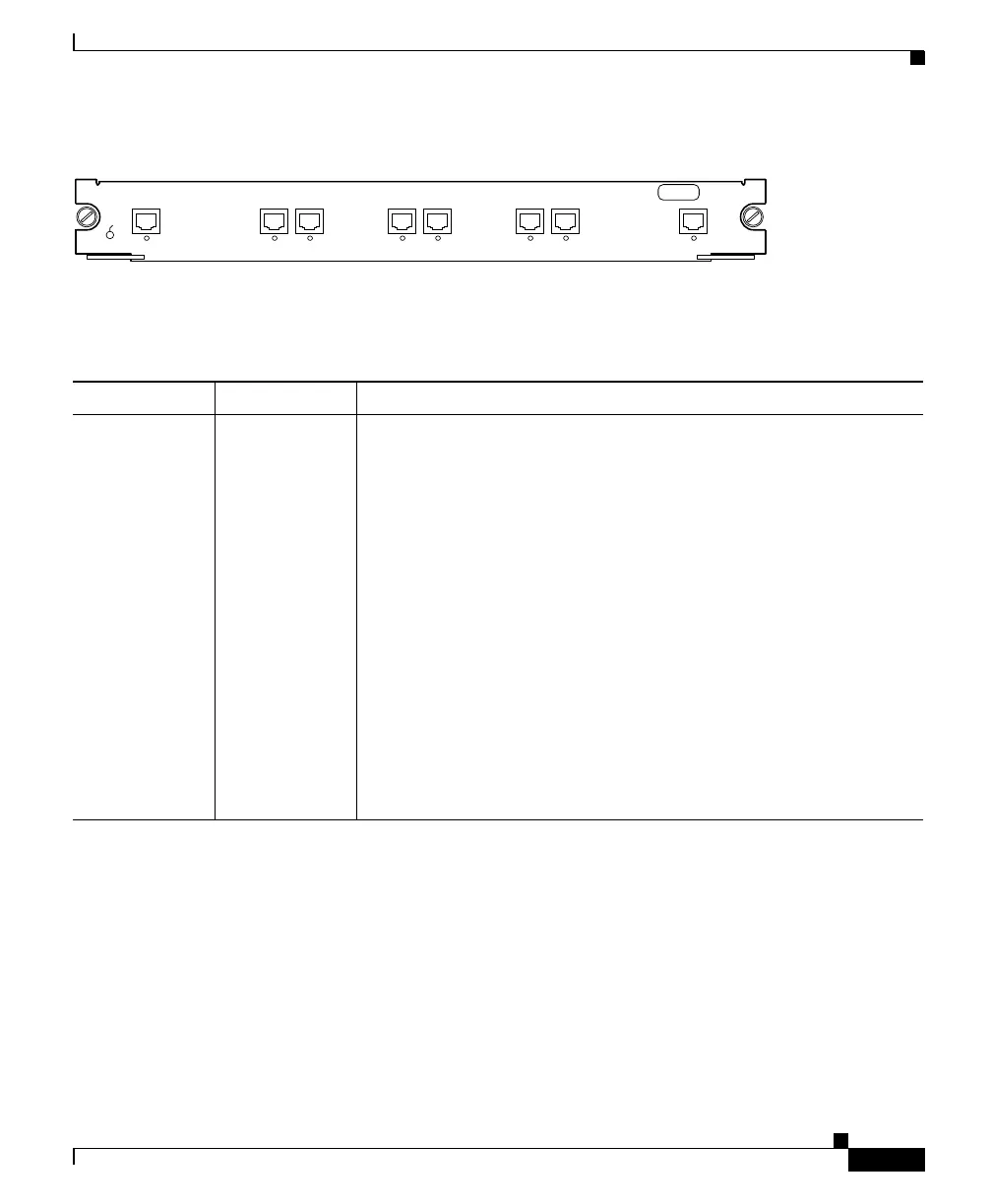

Figure 1-52 8-Port T1/E1 PSTN Interface Module (WS-X6608-T1/E1)
The front panel LED operation is described in Table 1-21.
33430
WS-6608-E1
8 PORT VOICE E1
1
LINK
STATUS
2
LINK
3
LINK
4
LINK
5
LINK
6
LINK
7
LINK
8
LINK
Table 1-21 8-Port PSTN Interface Module LEDs
LED Color/State Description
STATUS Green The module is operational. The supervisor engine has granted the
module online status.
Orange The module is booting or running diagnostics.
The supervisor engine has disabled the module.
An overtemperature condition has occurred. (A minor temperature
threshold has been exceeded during environmental monitoring.)
Red The module is resetting. (The switch has just been powered on or the
module has been hot inserted.)
The module processor detected a fatal error during its diagnostics.
An overtemperature condition has occurred. (A major temperature
threshold has been exceeded during environmental monitoring.)
Off The module is not receiving power. The module was powered down
due to lack of power. (The module is listed as power-deny in the
show module status field.)
