Chapter 1 Product Overview
Firewall Services Module (WS-SVC-FWM-1-K9)
The front panel LEDs are shown in Figure 1-43 and described in Table 1-14.

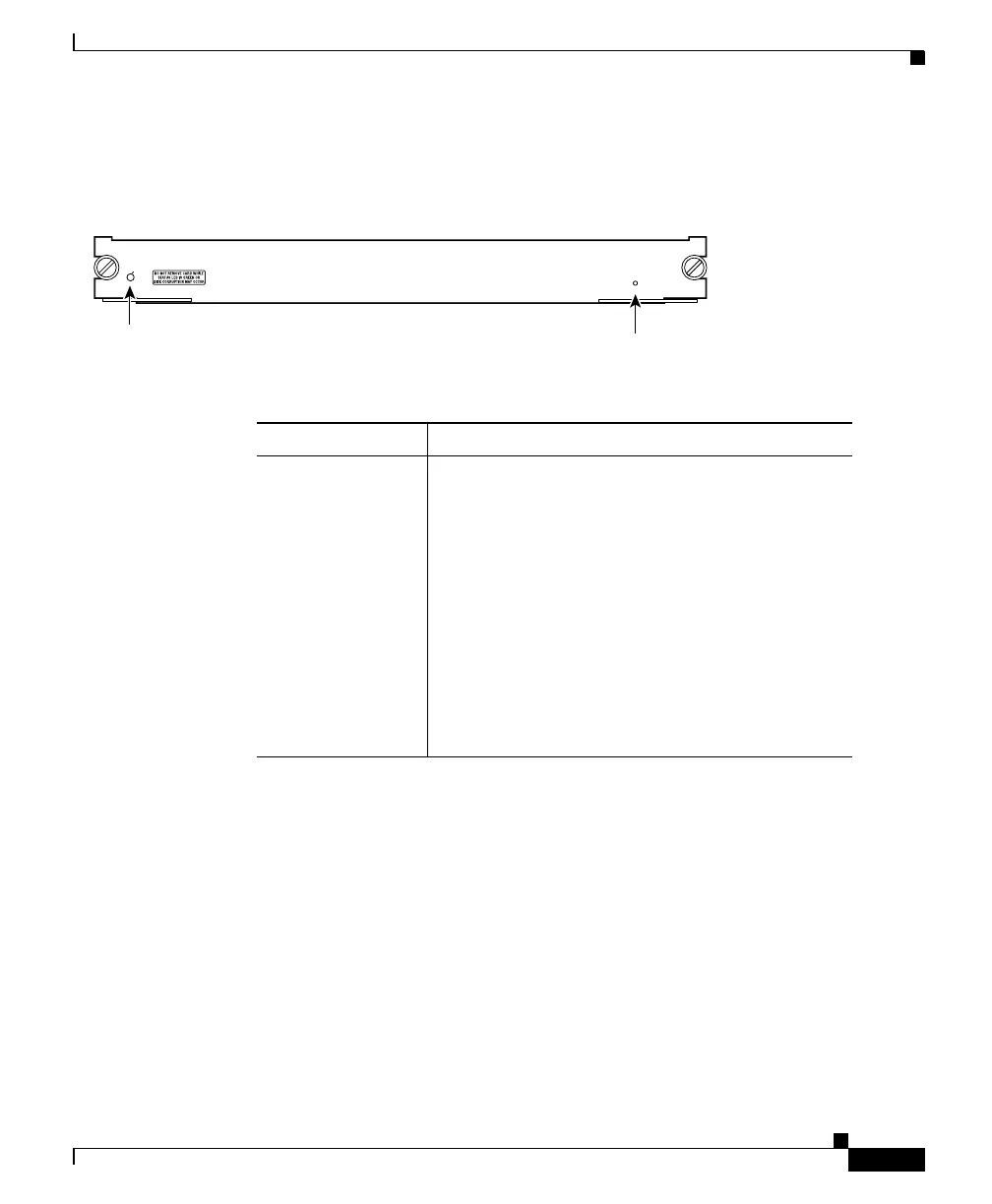

Figure 1-43 Firewall Services Module (WS-SVC-FWM-1-K9)
The SHUTDOWN button is used to manually shut down the Firewall Services
Module. To prevent corruption of the module, it is critical that the module run
through the shutdown procedure before shutting off. If the module fails to respond
to CLI or NAM shutdown commands, you can use the SHUTDOWN button as an
alternative shutdown method.
For further information on the Firewall Services Module, refer to the
Catalyst 6500 Series Firewall Services Module Installation and Configuration
Note.
Table 1-14 Firewall Services Module STATUS LED Description
Color/State Description
Green All diagnostic tests pass. The module is
operational.
Red A diagnostic test other than an individual port test
failed.
Orange Indicates one of three conditions:
• The module is running through its boot and
self-test diagnostic sequence.
• The module is disabled.
• The module is in the shutdown state.
Off The firewall module power is off.
FIREWALL SERVICES MODULE
SHUTDOWN
WS-SVC-FWM-1
STATUS
73755
STATUS LED
SHUTDOWN button
