1.14 1.14 Fan-Tray Assembly

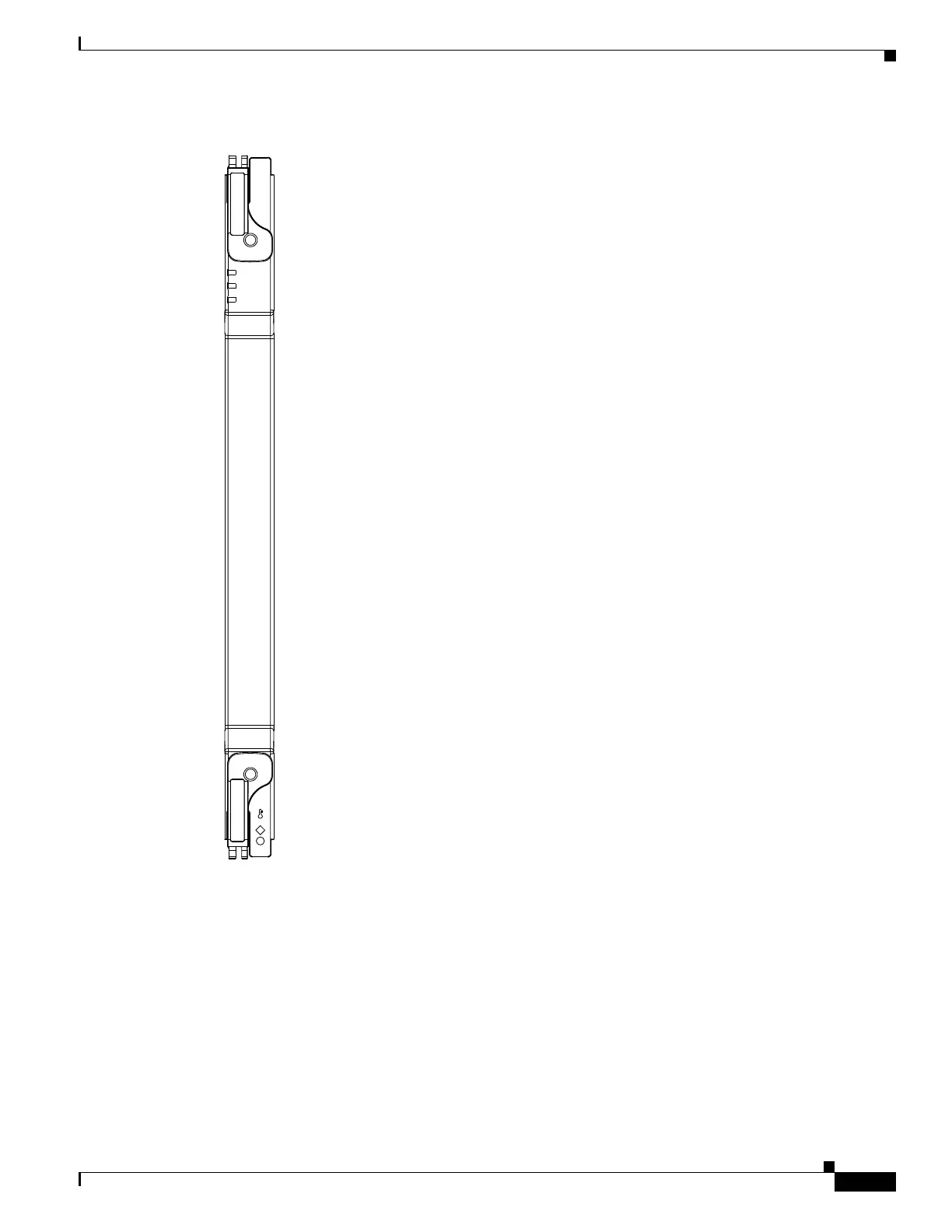

Figure 1-40 Detectable Filler Card Faceplate
1.14 Fan-Tray Assembly
The fan-tray assembly is located at the bottom of the ONS 15454 bay assembly. The fan tray is a
removable drawer that holds fans and fan-control circuitry for the ONS 15454. The front door can be left
in place or removed before installing the fan-tray assembly. After you install the fan tray, you should
only need to access it if a fan failure occurs or if you need to replace or clean the fan-tray air filter.
