15.5 15.5.9 DS3-EC1-48 Card Performance Monitoring Parameters
15.5.9 DS3-EC1-48 Card Performance Monitoring Parameters
Figure 15-18 shows the signal types that support near-end and far-end PMs.

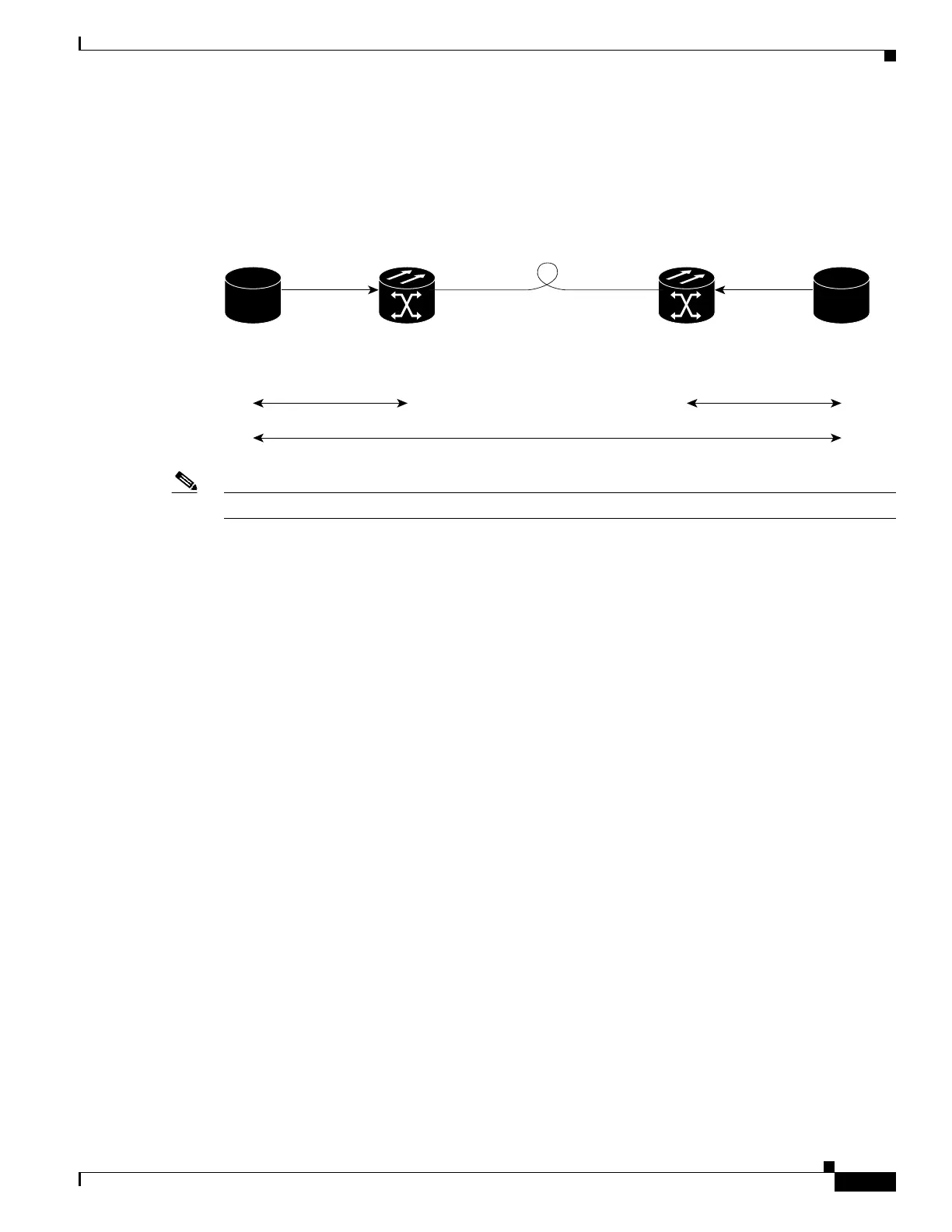

Figure 15-18 Monitored Signal Types for the DS3/EC1-48 Card
Note The XX in Figure 15-18 represents all PMs listed in Table 15-12 with the given prefix and/or suffix.
Figure 15-19 shows where the overhead bytes detected on the ASICs produce PM parameters for the
DS3-EC1-48 card.
78975
ONS 15454
PTE
DS3 OC-N
Fiber
DS3 Signal
DS3 Path (DS3 XX) PMs Near and Far End Supported
DS3 Signal
ONS 15454
DS3OC-N
STS Path (STS XX-P) PMs Near and Far End Supported
PTE
