Figure 13-36 OSI/IP Scenario 5: GNE Without an OSI DCC Connection
13.7.9.6 OSI/IP Scenario 6: IP OSS, OSI DCN, ONS GNE, OSI DCC, and Other Vendor ENE

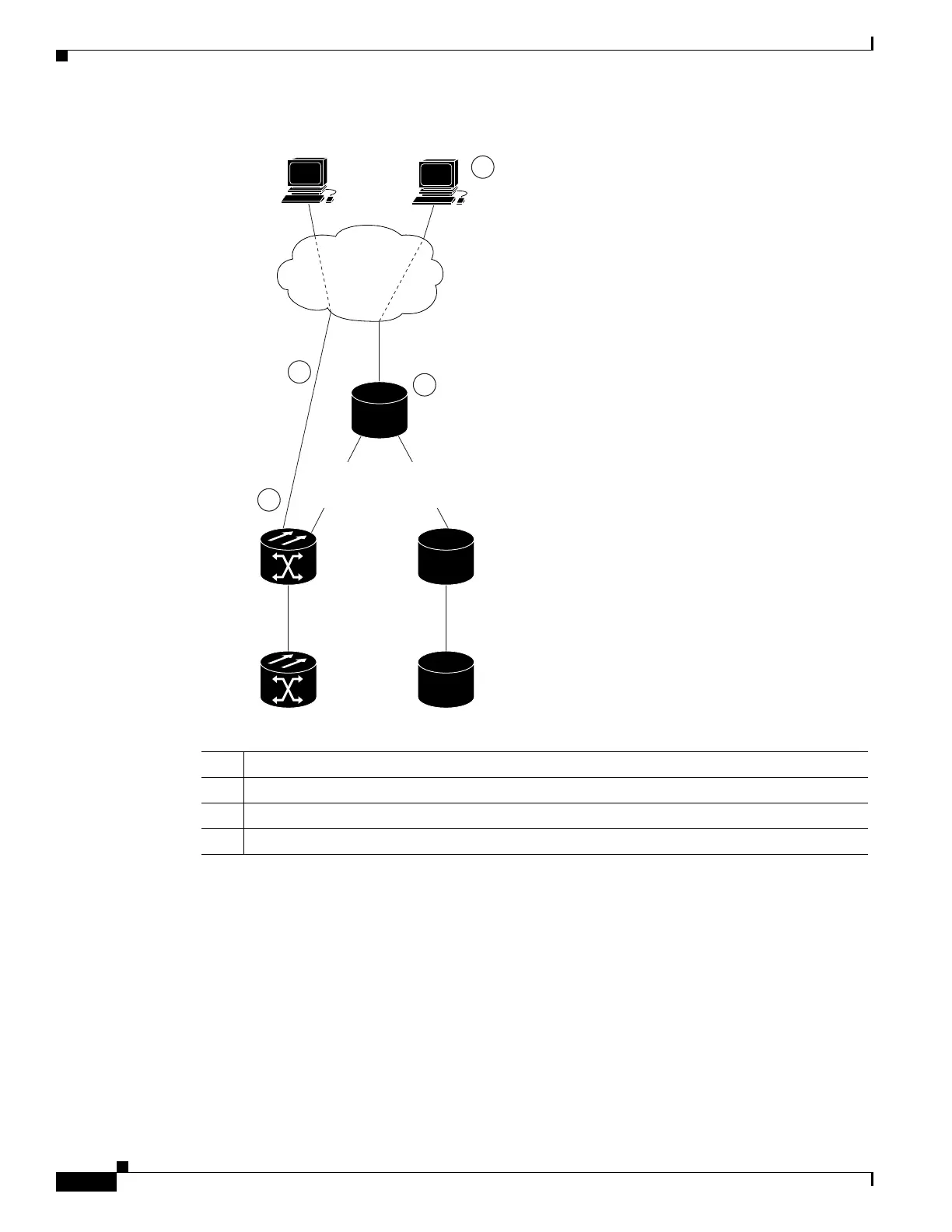

OSI/IP Scenario 6 (Figure 13-37) shows how the ONS 15454 supports OSI DCNs. The OSI DCN has no
impact on the ONS 15454 because all IP traffic (CTC/CTM, FTP, and TL1) is tunneled through the OSI
DCN.
1 The IP OSS manages ONS 15454 and other vendor NEs using TL1 and FTP.
2 The other vendor GNE performs mediation on TL1 and FTP, so DCCs are OSI-only.
3 CTC/CTM communicates with ONS 15454 NEs over a separate IP DCN connection.
4 ONS 15454 NE exchanges TL1 over the full OSI stack. FTAM is used for file transfers.
131935
IP DCN
IP
IPIP
CTC/CTM
IP OSS
IP
ONS NE
ONS NE
IP and
OSI/PPP/DCC
1
2
4
3
OSI/LAP-D/DCC
Other
vendor GNE
Other
vendor NE
Other
vendor NE
OSI/
LAP-D/
DCC
OSI/
LAP-D/
DCC
