Chapter 15 Performance Monitoring
15.5 15.5.5 DS3-12E and DS3N-12E Card Performance Monitoring Parameters
Figure 15-10 Monitored Signal Types for the DS3-12E and DS3N-12E Cards
Note The XX in Figure 15-10 represents all PMs listed in Table 15-8 with the given prefix and/or suffix.
Figure 15-11 shows where overhead bytes detected on the ASICs produce PM parameters for the
DS3-12E and DS3N-12E cards.

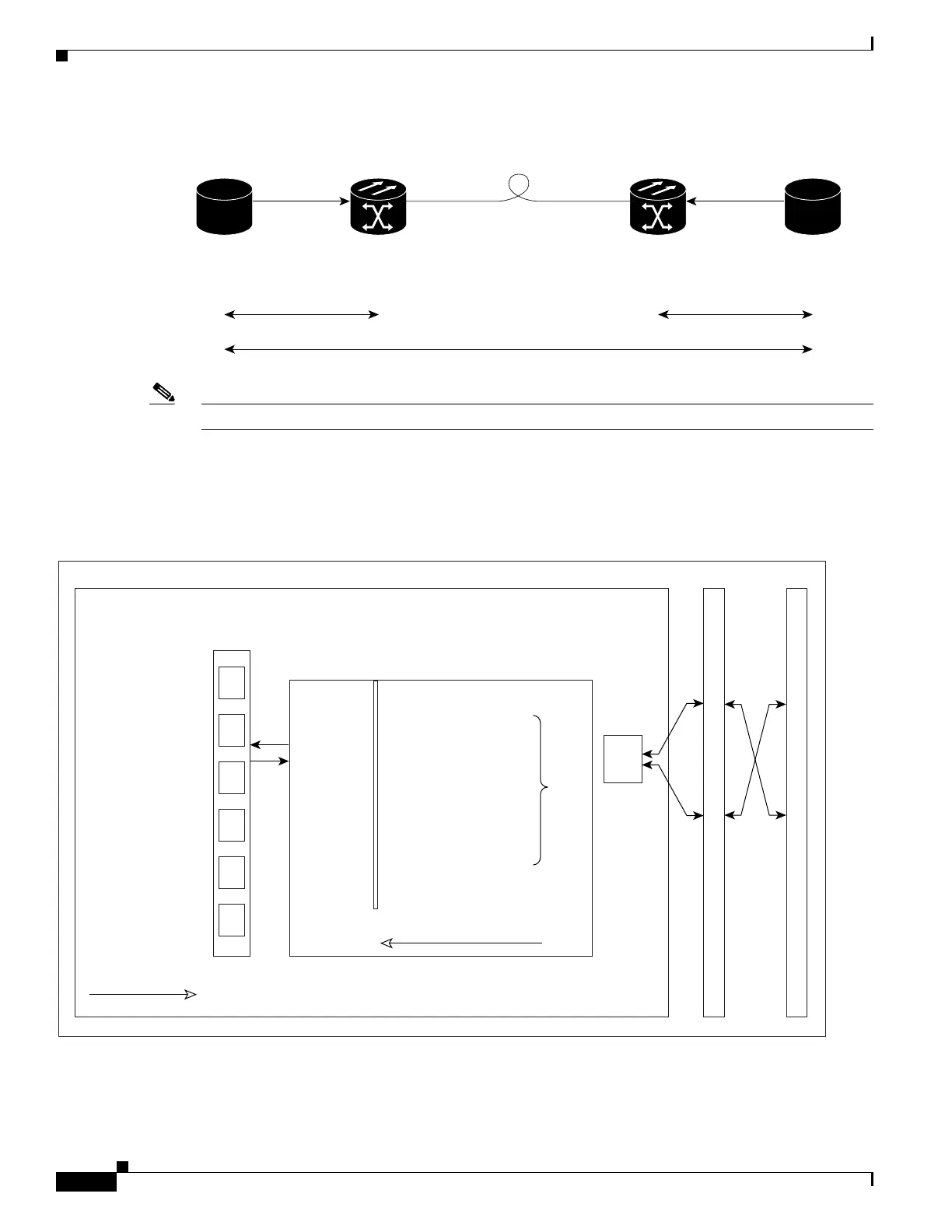

Figure 15-11 PM Read Points on the DS3-12E and DS3N-12E Cards
Table 15-8 describes the PM parameters for the DS3-12E and DS3N-12E cards.
78977
ONS 15454
PTE
DS3E OC-N
Fiber
DS3 Signal
DS3E Path (DS3 XX) PMs Near and Far End Supported
DS3 Signal
ONS 15454
DS3EOC-N
STS Path (STS XX-P) PMs Near and Far End Supported
PTE
78978
ONS 15454
DS3-12E & DS3N-12E Cards
LIU
Mux/Demux ASIC
BTC
ASIC
XC Card(s) OC-N
DS3 Side
Path
Level
SONET Side
STS CV-P
STS ES-P
STS FC-P
STS SES-P
STS UAS-P
STS CV-PFE
STS ES-PFE
STS FC-PFE
STS SES-PFE
STS UAS-PFE
DS3 CV-L
DS3 ES-L
DS3 SES-L
DS3 LOSS-L
DS3 AISS-P
DS3 CVP-P
DS3 ESP-P
DS3 SASP-P
DS3 SESP-P
DS3 UASP-P
DS3 CVCP-P
DS3 ESCP-P
DS3 SESCP-P
DS3 UASCP-P
DS3 CVCP-PFE
DS3 ESCP-PFE
DS3 SASCP-PFE
DS3 SESCP-PFE
DS3 UASCP-PFE
PMs read on LIU
PMs read on Mux/Demux ASIC
