Chapter 1 Shelf and Backplane Hardware
1.9 1.9 UBIC-H Cables

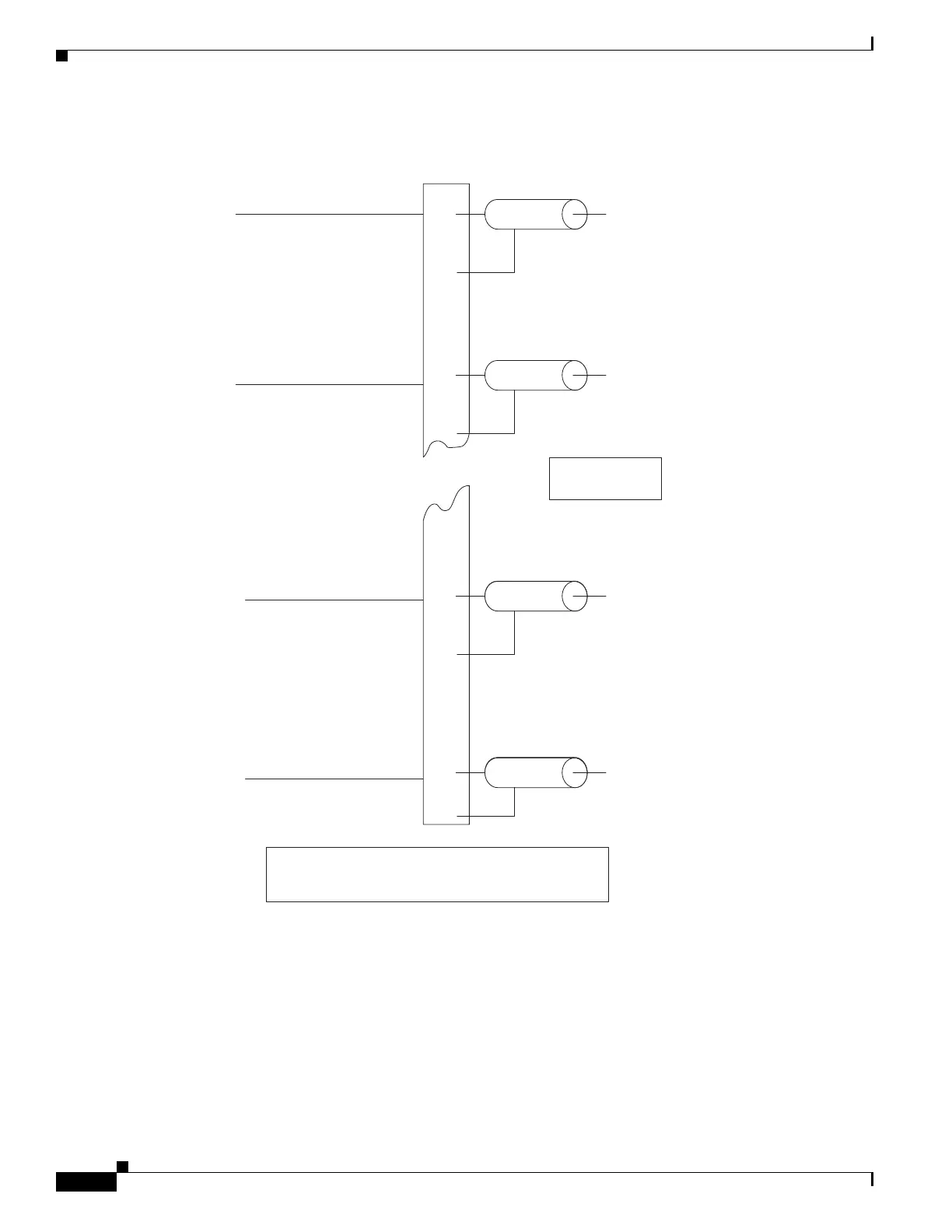

Figure 1-25 UBIC-V DS-3/EC-1 Cable Schematic Diagram
1.9 UBIC-H Cables
The UBIC-H EIA is designed to support DS-1, DS-3, or EC-1 signals. The type of signal supported is
determined by the UBIC-H cable assembly that you order.
To support DS-1 signals, select the DS-1 UBIC-H cable assembly (part number
15454-CADS1-H-<length>).
DS-3 75Ω
Port #1
DS-3 75Ω
Port #2
FGND
FGND
FGND
Pin 1
Pin 5
DS-3 75Ω
Port #11
Pin 42
75Ω Signal
To/From UBIC
75Ω Signal To/From
75Ω Signal To/From
DS-3 75Ω
Port #12
Pin 46
75Ω Signal To/From
From/To
Customer DSx
273811
DS-3/EC1 Cable
Port #1
Port #2
Port #11
Port #12
75Ω DS-3/EC1 signal coming to/from Tyco SCSI
connector and being placed on 735A (or 735C) Coax
Frame GND from
shield to connector
