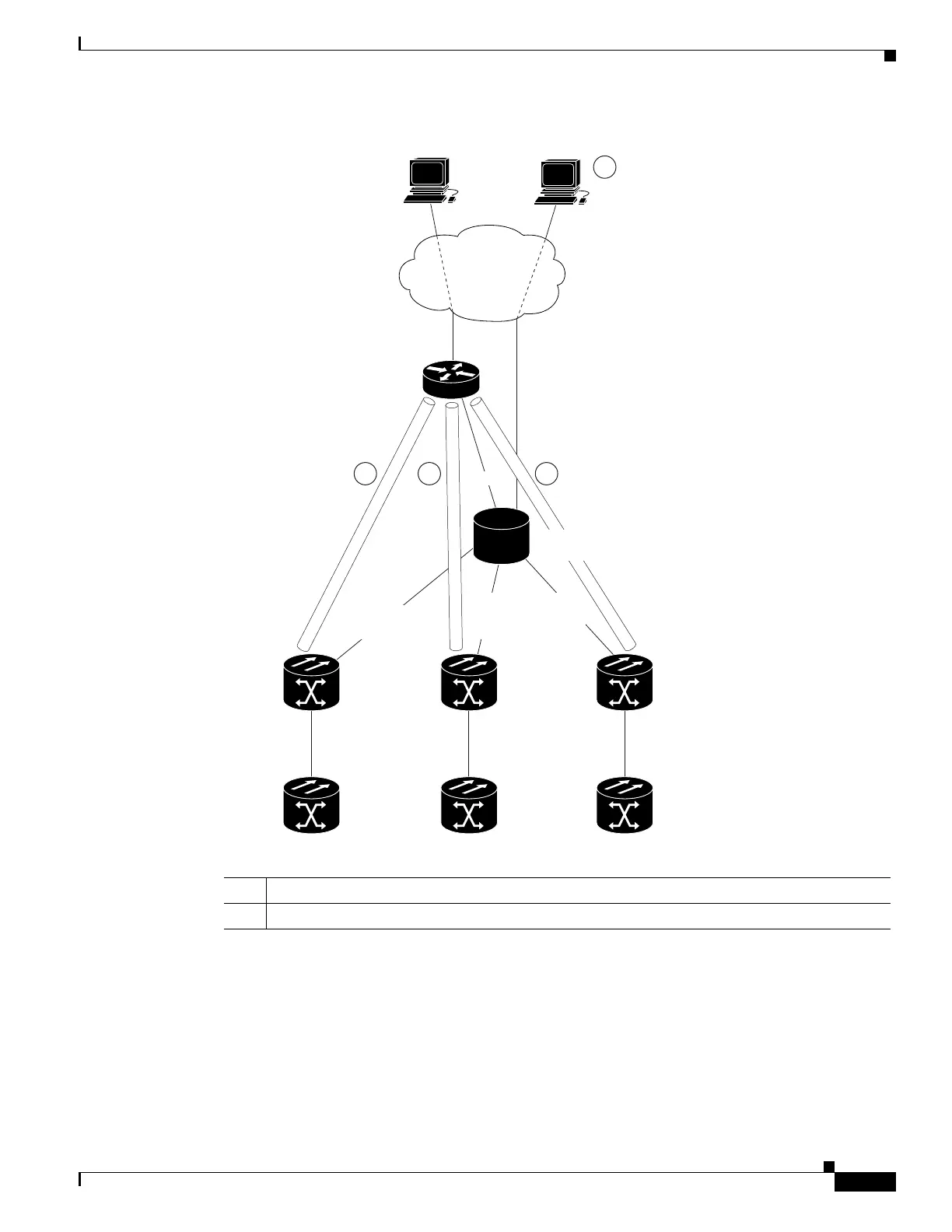

Figure 13-35 OSI/IP Scenario 4: Multiple ONS DCC Areas
13.7.9.5 OSI/IP Scenario 5: GNE Without an OSI DCC Connection
OSI/IP Scenario 5 (Figure 13-36) is similar to OSI/IP Scenario 3 except that the OSI GNE only has an
IP connection to the DCN. It does not have an OSI DCN connection to carry CTC/CTM IP traffic through
an IP-over-OSI tunnel. A separate DCN to ONS 15454 NE connection is created to provide CTC/CTM
access.
1 The IP OSS manages ONS 15454 and other vendor NEs using TL1 and FTP.
2 A separate tunnel is created for each isolated ONS 15454 DCC area.
131934
IP DCN
IP
IP
IP
CTC/CTM
IP OSS
IP
ONS NE
ONS NE
IP and
OSI/PPP/DCC
1
2 2 2
ONS NE
ONS NE
ONS NE
ONS NE
IP and
OSI/PPP/DCC
IP and
OSI/PPP/DCC
OSI/
LAP-D/
DCC
OSI/
LAP-D/
DCC
OSI/
LAP-D/
DCC
Other
vendor GNE
OSI
