4023074 Rev B Model D9858 Advanced Receiver Transcoder Installation and Operation Guide 2-5
Control and Management Interfaces
Ethernet
The Management interface for the D9858 Advanced Receiver Transcoder is the 10/
100/1000 BaseT Ethernet interface. It is used for upgrading the software
application. SNMP or Web GUI control is not supported in this software release.
Front Panel Control
The front panel keypad and LCD is used to control the operating parameters of the
D9858 transcoder.

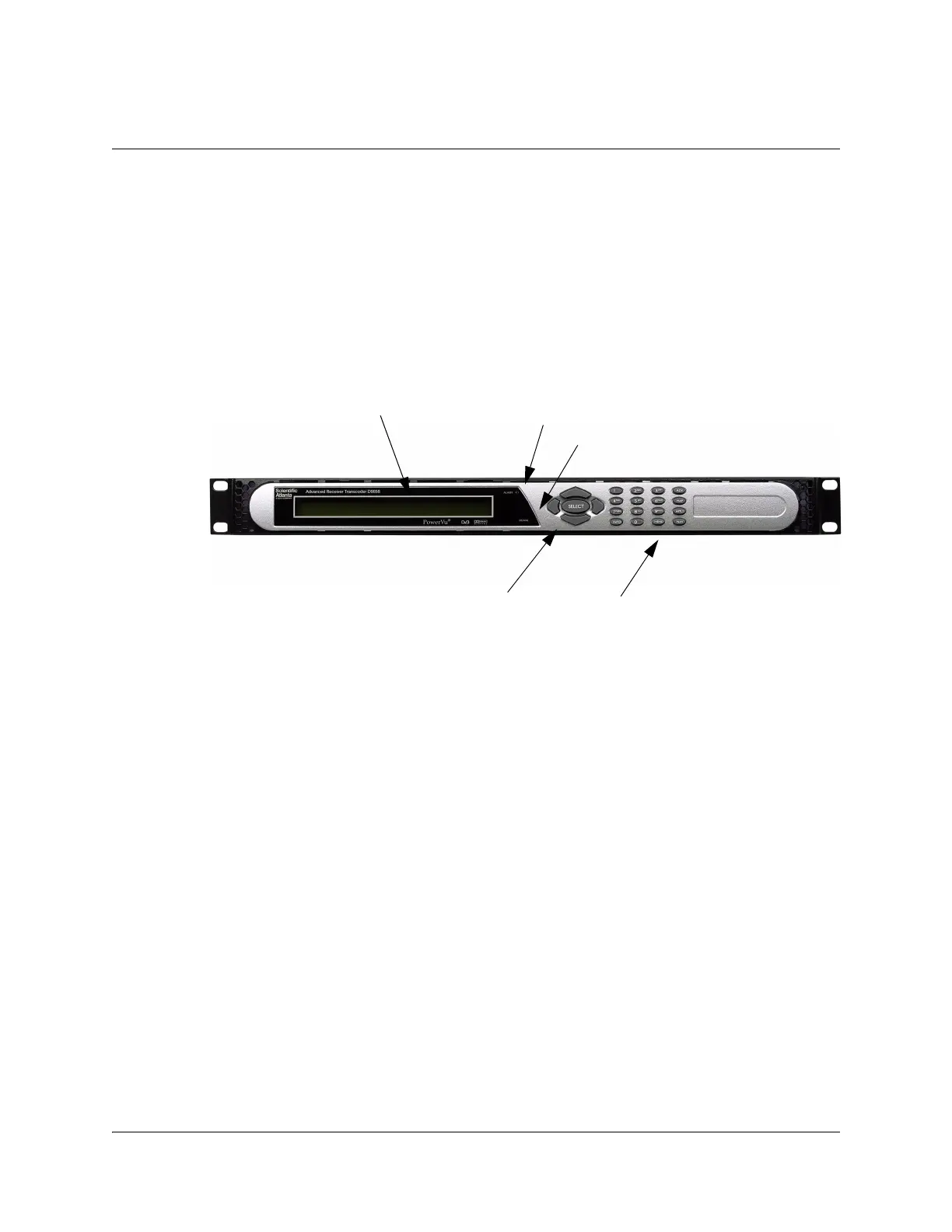

The following diagram shows the front panel with its different sections.
Numeric Keypad
Alarm LED
LCD Panel
Navigation/Selection
Signal LED
