4023074 Rev B Model D9858 Advanced Receiver Transcoder Installation and Operation Guide 3-5
Section B - Rear Connector Panel
Overview

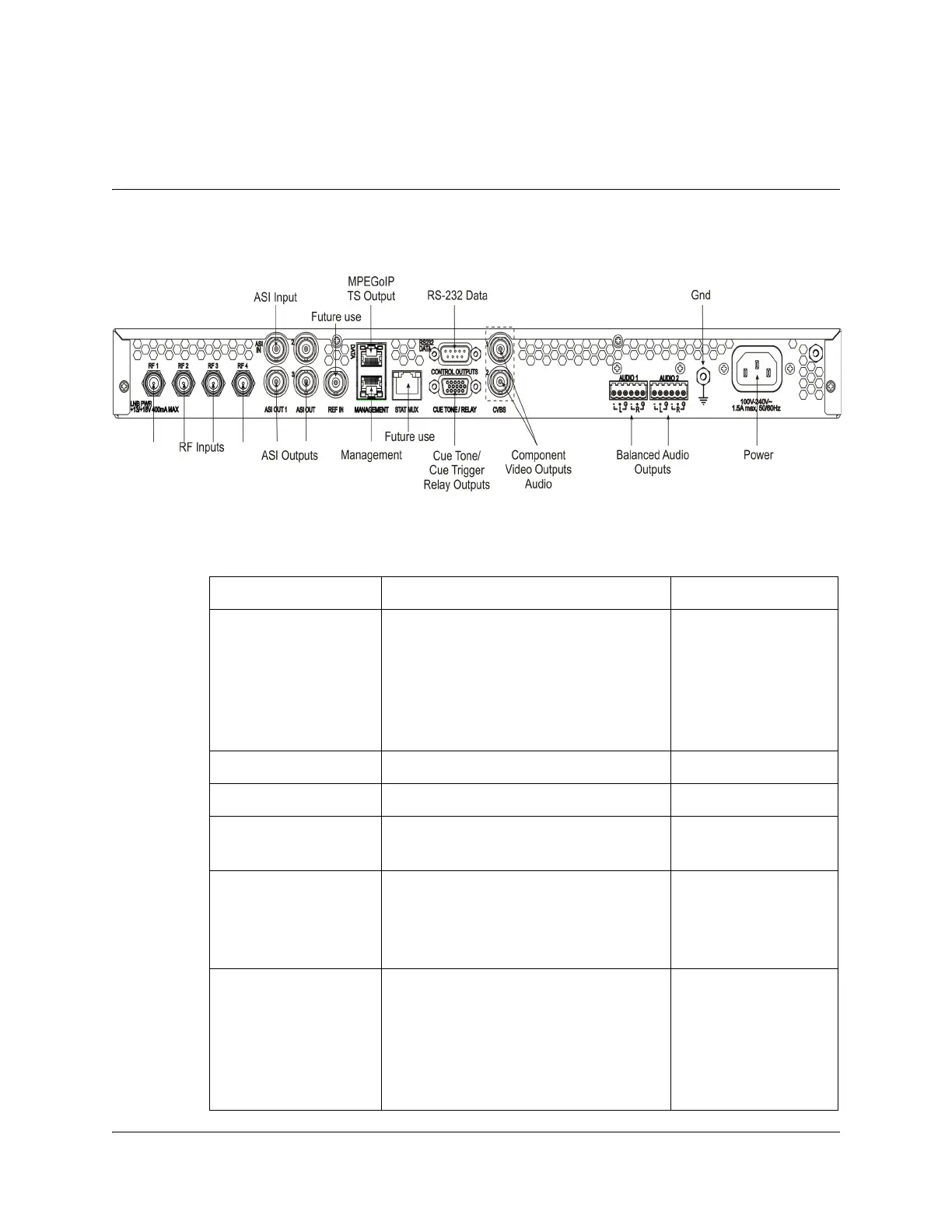

D9858 Advanced Receiver Transcoder Rear Connector Panel
The following diagram shows the rear connector panel of the D9858 transcoder.
Connectors
The following table describes the function and type of the various connectors.
Connector
Function Connector Type
RF Inputs Each input accepts an LNB signal
input. RF1 provides LNB power for
use when no external LNB power
source is available. RF2 to RF4
require an external LNB power
source.
F
Reference Input For future use. BNC
ASI Input Asynchronous Serial Interface Input. BNC
ASI Outputs Three Asynchronous Serial Interface
Outputs.
BNC
Management For upgrading the software
application (code downloading) for
the D9858 Advanced Receiver
Transcoder.
RJ45
Cue Tone/Cue
Trigger Relay
Outputs
Program relay provides
programmed responses for alarms,
cue trigger states for ad-insertion
equipmnent, or a cue tone output for
connection to ad-insertion
equipment.
9-pin sub-D female
To Next Page
