COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 111 of 138
(23.) Press the right inner knob.
(24.) Verify that the “Select Function” window appears over the display as shown in
Figure 8.14.
(25.) Press the “HOME” button.
(26.) Verify that the menu returns to the default display similar to Figure 8-1.
(27.) Press and hold the left inner knob.
(28.) Verify that the window shown in Figure 8-9 appears when the left knob is
pressed.
(29.) Verify that the UUT turns off when left inner knob is pressed in for three
seconds.
(30.) Release the left inner knob.

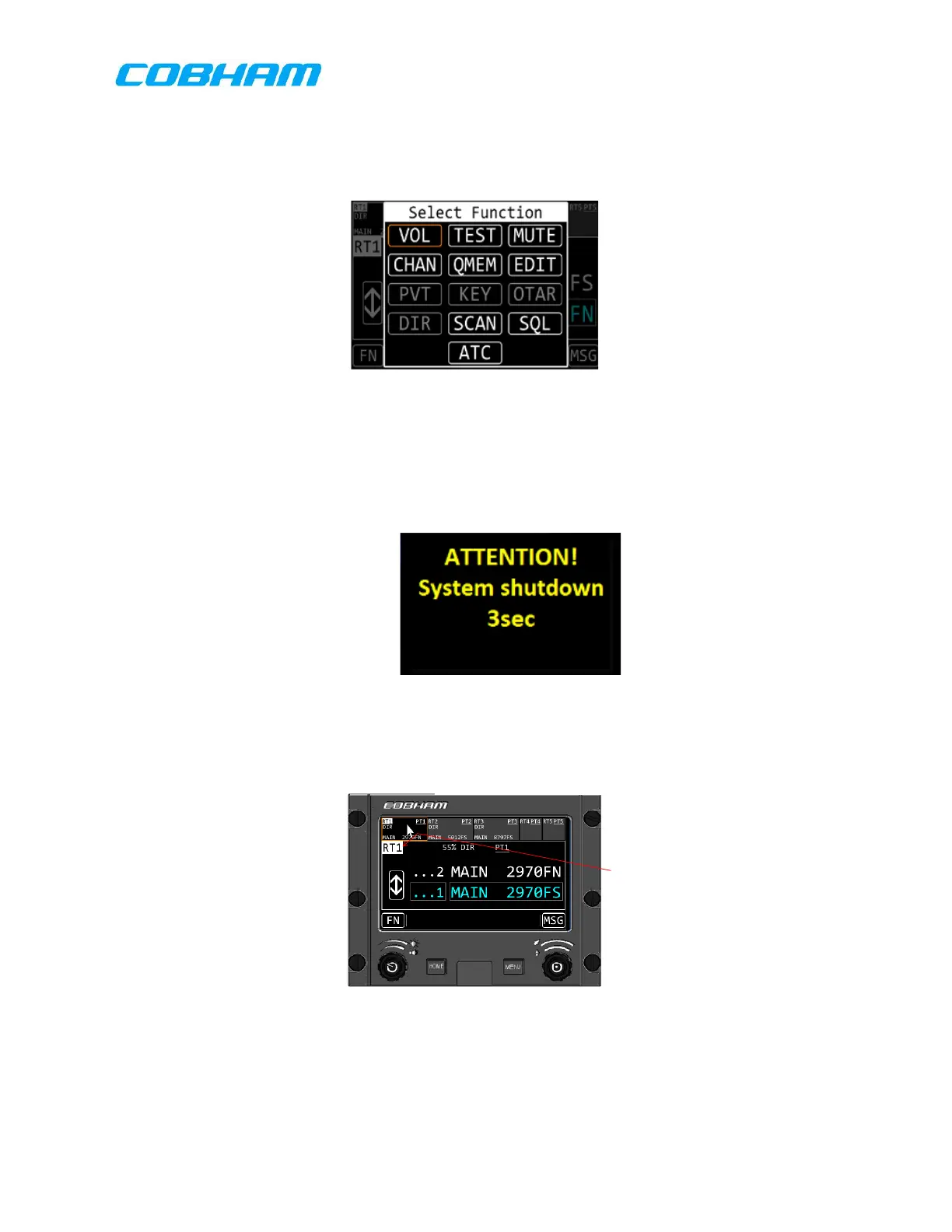

Figure 8-9 System Shutdown Message
Figure 8-10 RT1 Selected
Figure 8-8 Select Function Menu
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
