COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 77 of 138
Cosite_TX_N
67
RT-7000 PMR/RMR
J101
TX Interlock In
PTT In
Comm Radio
To Comm PTT
RT-7000 PMR/RMR TX Interlock with one external radio
RT-7000 PMR/RMR TX Interlock with two external radios
Cosite_TX_N
67
RT-7000 PMR/RMR
J101
TX Interlock In
Comm Radio
RT-7000 PMR/RMR TX Interlock with one external radio.
( Comm Radio Interlock Bi-directional. No PTT tie in required)
Cosite_TX_N
67
RT-7000 PMR/RMR
J101
TX Interlock In
PTT In
Comm1 Radio
To Comm1 PTT
TX Interlock In
PTT In
Comm2 Radio
To Comm2 PTT
1N4001 or
equivalent diode
1N4001 or
equivalent diode
1N4001 or
equivalent diode

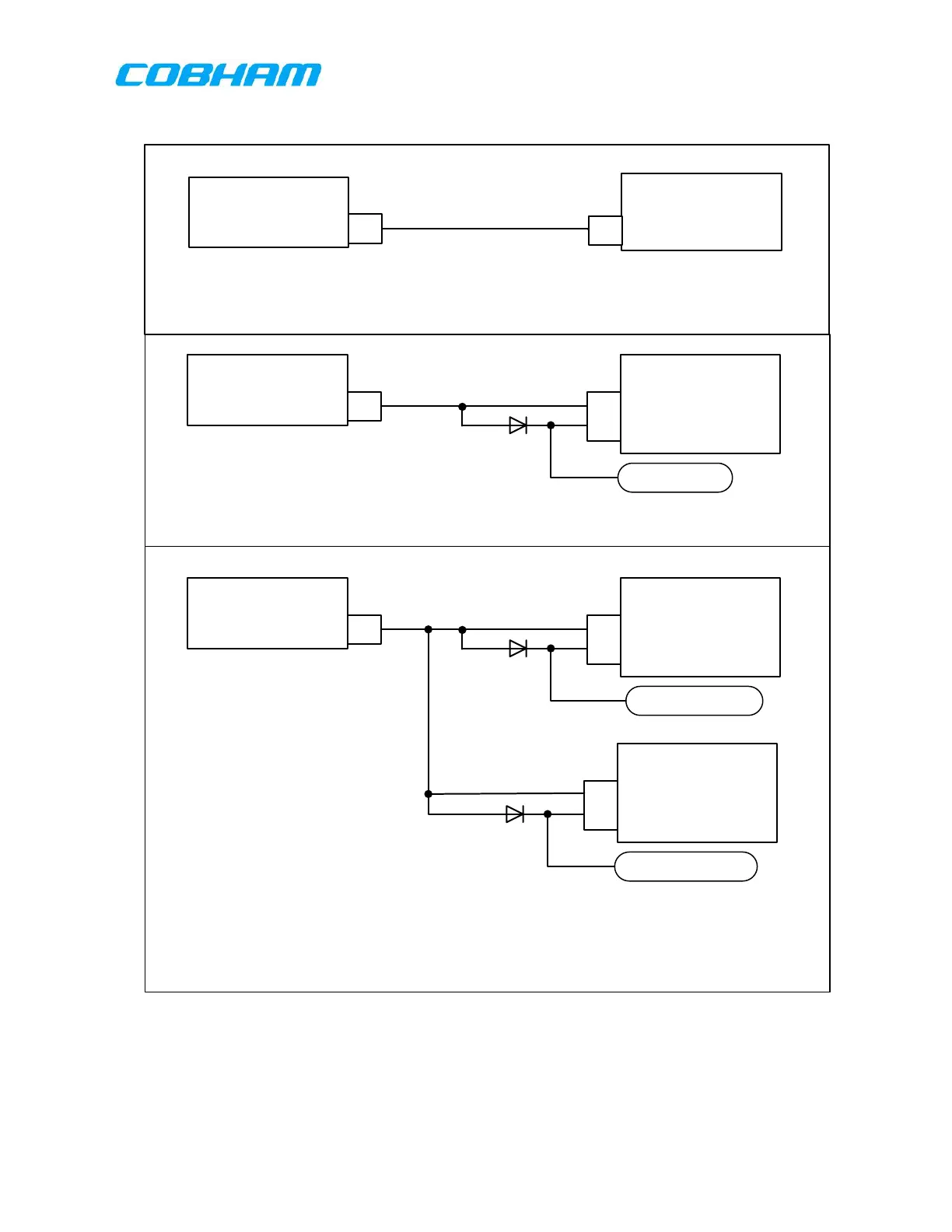

Figure 7-19: RT-7000 PMR/RMR Transmitter Interlocks
Note: The Cosite_TX/TX_Interlock is required for TSO-C169a Certified Installations
