COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information, see
proprietary statement on first page.
Page 38 of 138

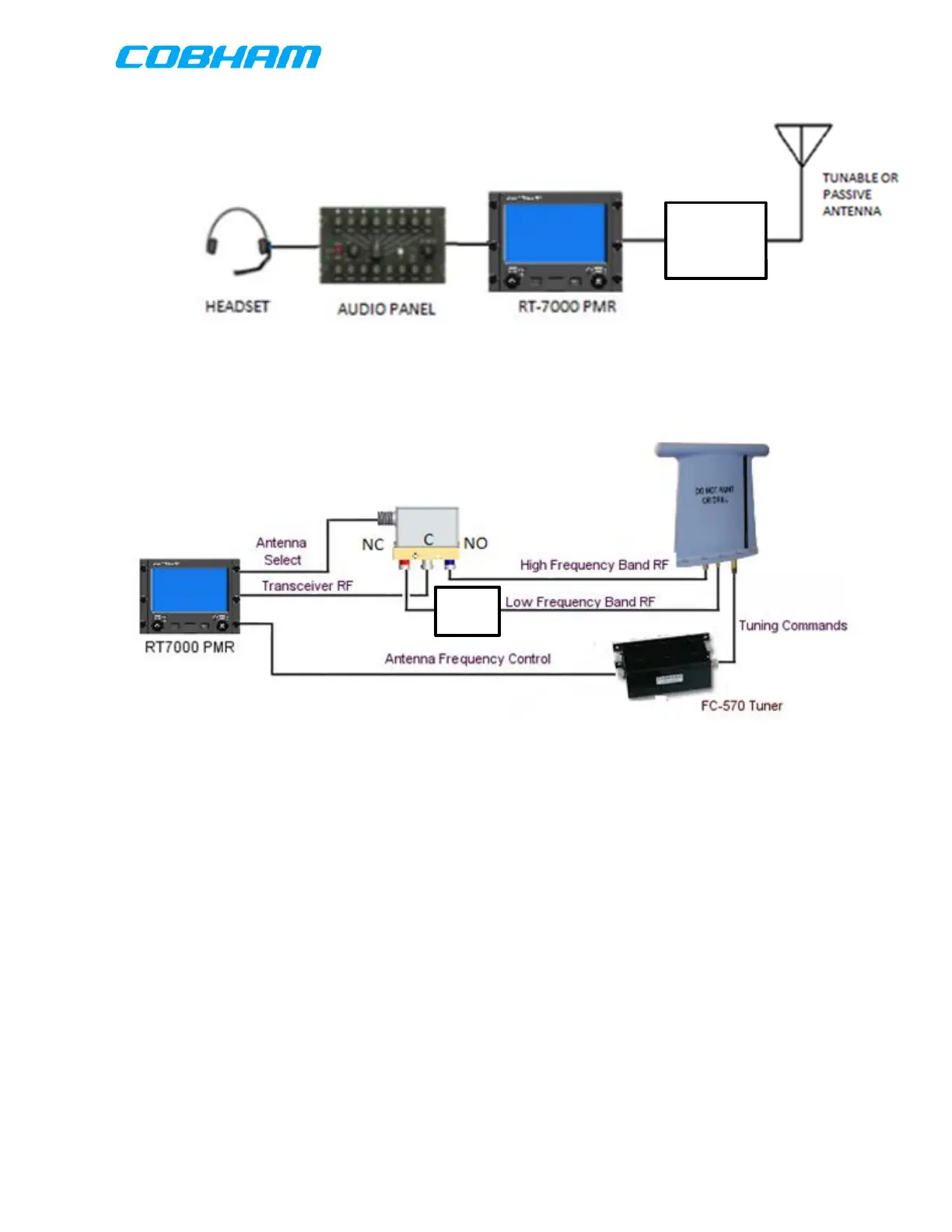

Figure 5-15: RT-7000 PMR with 118 MHz HPF and no Antenna Switching Unit (for radio
systems requiring certification to TSO-C169a)
Figure 5-16: RT-7000 PMR with 118 MHz HPF and Antenna Switching Unit (for radio
systems requiring certification to TSO-C169a)
Note: Not all installation configurations are shown here. The 118 MHz HPF goes into
the antenna feed line, as shown in the two figures above, for PMR and RMR
installations with either a passive or tunable antenna. If the system contains multiple
Wideband Transceivers (CWTs), a 118 MHz HPF is required in the antenna feed line
for each CWT.
118 MHz
HPF
118 MHz
HPF
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
