COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 91 of 138
PI
N
SIGNAL NAME
Connection
Wire
Destination
1
28V
20
-Aircraft Power
2
28V
20
-Aircraft Power
3
28V
20
-Aircraft Power
4
28V
20
-Aircraft Power
5
Ground
20
-Aircraft Power Ground
6
Ground
20
-Aircraft Power Ground
7
Ground
20
-Aircraft Power Ground
8
Ground
20
-Aircraft Power Ground
9
Reserved
NC
-
-
Table 7-6: RCDU Power Connector M2J2
C. Antenna Switching Unit Wiring Considerations
(1) J1
The J1 connector provides power and ground interconnects. J1 is a 6 pin
D38999/25NA35PN connector with aircraft mating connector SD38999/26FA35SN-ND
or equivalent.

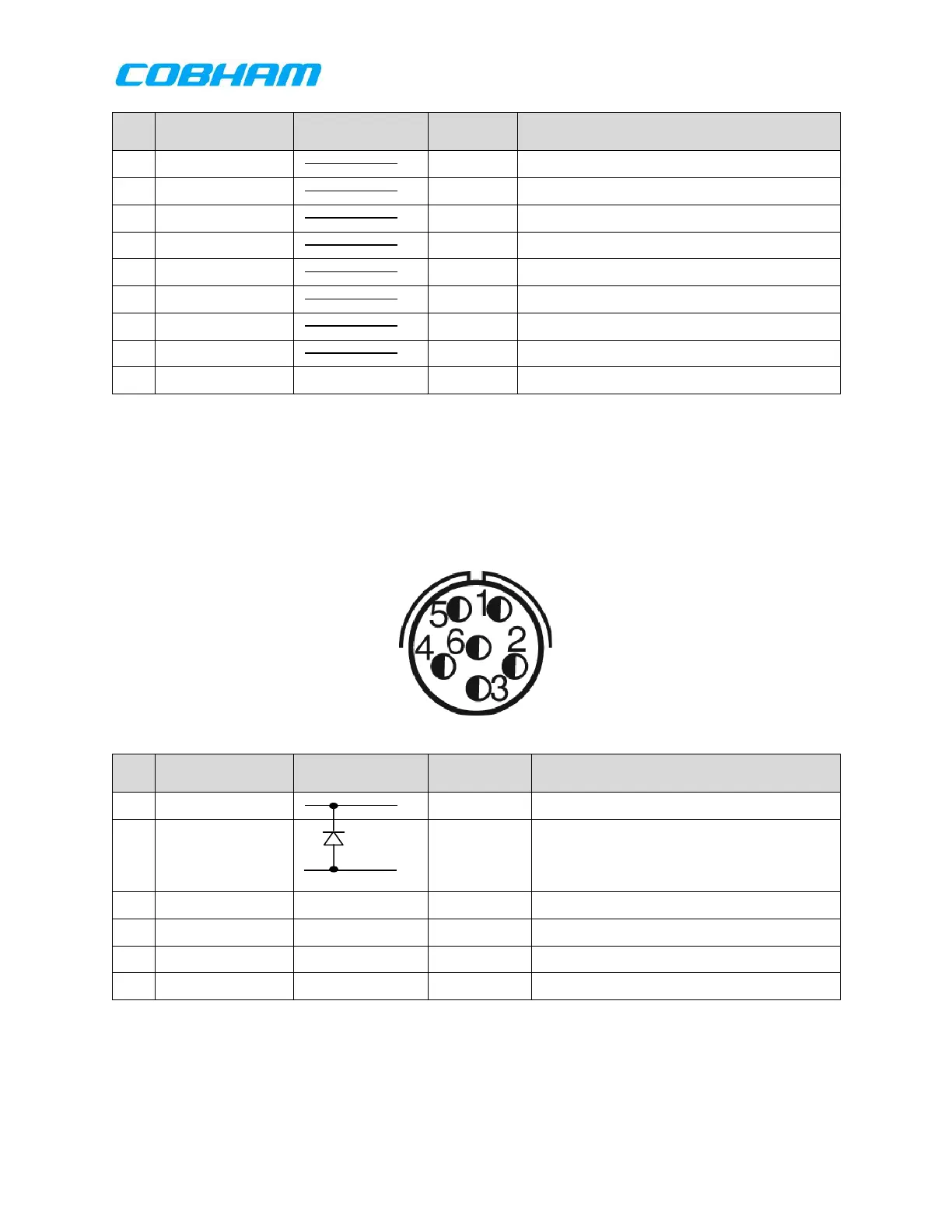

Figure 7-24: Antenna Switching Unit Connector J10
PI
N
SIGNAL NAME
Connection
Wire
Destination
1
28V
22
-28V Aircraft Power (110 mA)
2
Control
22
Antenna Port 1: RT-7000 PMR J101-74
Antenna Port 2: RT-7000 PMR J101-75
Antenna Port 3: RT-7000 PMR J101-68
3
Spare
NC
-
-
4
Spare
NC
-
-
5
Spare
NC
-
-
6
Spare
NC
-
-
Table 7-7: Antenna Switching Unit Connector J1
(2) COM
COM connects the antenna switching unit to an antenna port on the RT-7000 PMR .
COM is a TNC connector with mating connector Amphenol P/N 122393 (for LMR400
Coax) or equivalent.
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
