COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 69 of 138
Figure 7-11 and Figure 7-9 illustrate audio connections to the RT-7000 PMR/RMR.
RT-7000 PMR/RMR1
Audio Out 1 H
Audio Out 1 L
Mic In 1 H
Mic In 1 L
PTT 1
Mic Mode
Ground
Backshell
Ground for Direct Connection
5, 75 or 150 Headphone, define in ICT
5, 75 or 150 Microphone, define in ICT
Note: For 150 Microphone, turn on Mic Bias via in ICT
Ground for PTT
Direct Headset Connection for RT-7000 PMR/RMR with external PTT to ground
1
2
69
70
33
76
66
J101
RT-7000 PMR/RMR1
Audio Out 1 H
Audio Out 1 L
Mic In 1 H
Mic In 1 L
PTT 1
Mic Mode
Ground
Backshell
Ground for Direct Connection
5, 75 or 150 Headphone, define in ICT
5, 75 or 150 Microphone, define in ICT
Note: For 150 Microphone, turn on Mic Bias via in ICT
Set Low Side Mic Ground in ICT
Close Switch for PTT
Direct Headset Connection for RT-7000 PMR/RMR with inline PTT switch
J101

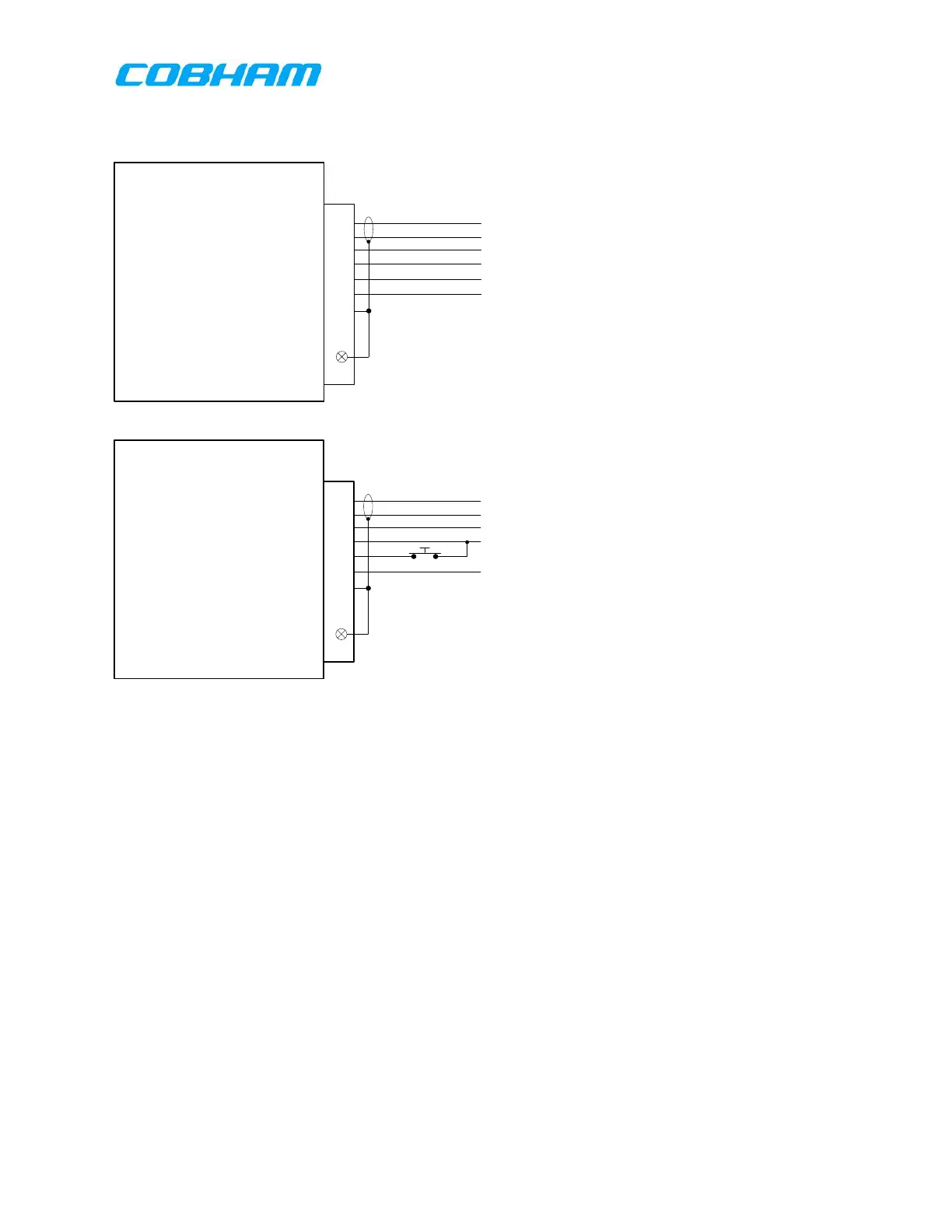

Figure 7-11: Direct Audio Connections to Channel 1
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
