COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 86 of 138
(5) J105
J105 provides system power and ground. J105 is a 9 pin D-sub connector with mating
connector Positronic P/N RD9S1000S/AA-14 or equivalent.

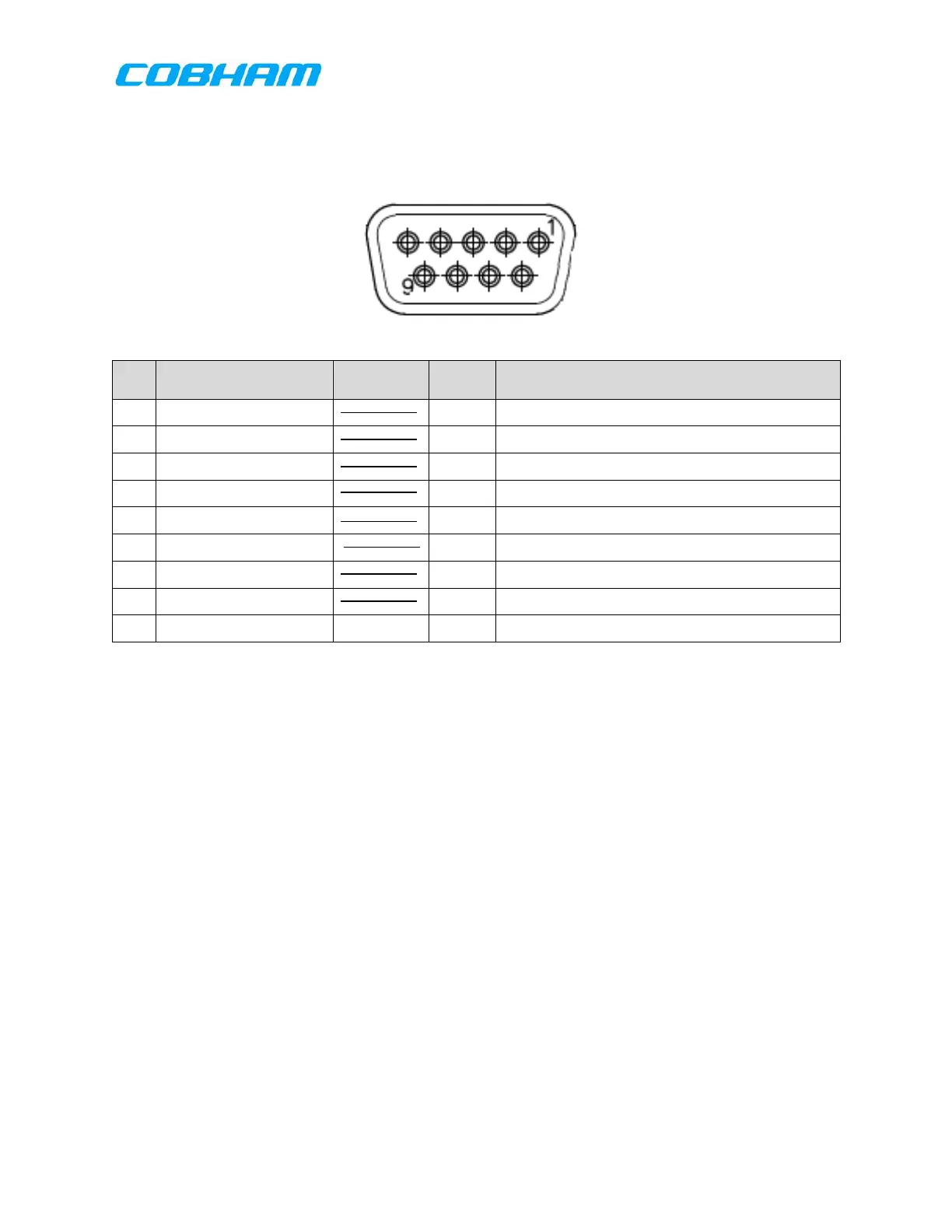

Figure 7-21: RT-7000 PMR/RMR Power Connector J105
PI
N
SIGNAL NAME
Connectio
n
Wire
Destination
1
28V
20
-Aircraft Power
2
28V
20
-Aircraft Power
3
28V
20
-Aircraft Power
4
28V
20
-Aircraft Power
5
Ground
20
-Aircraft Power Ground
6
Ground
20
-Aircraft Power Ground
7
Ground
20
-Aircraft Power Ground
8
Ground
20
-Aircraft Power Ground
9
Reserved
NC
-
-
Table 7-3: RT-7000 PMR/RMR Power Connector J105
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
