COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 67 of 138
RT-7000 PMR/RMR1
Ground for PTT

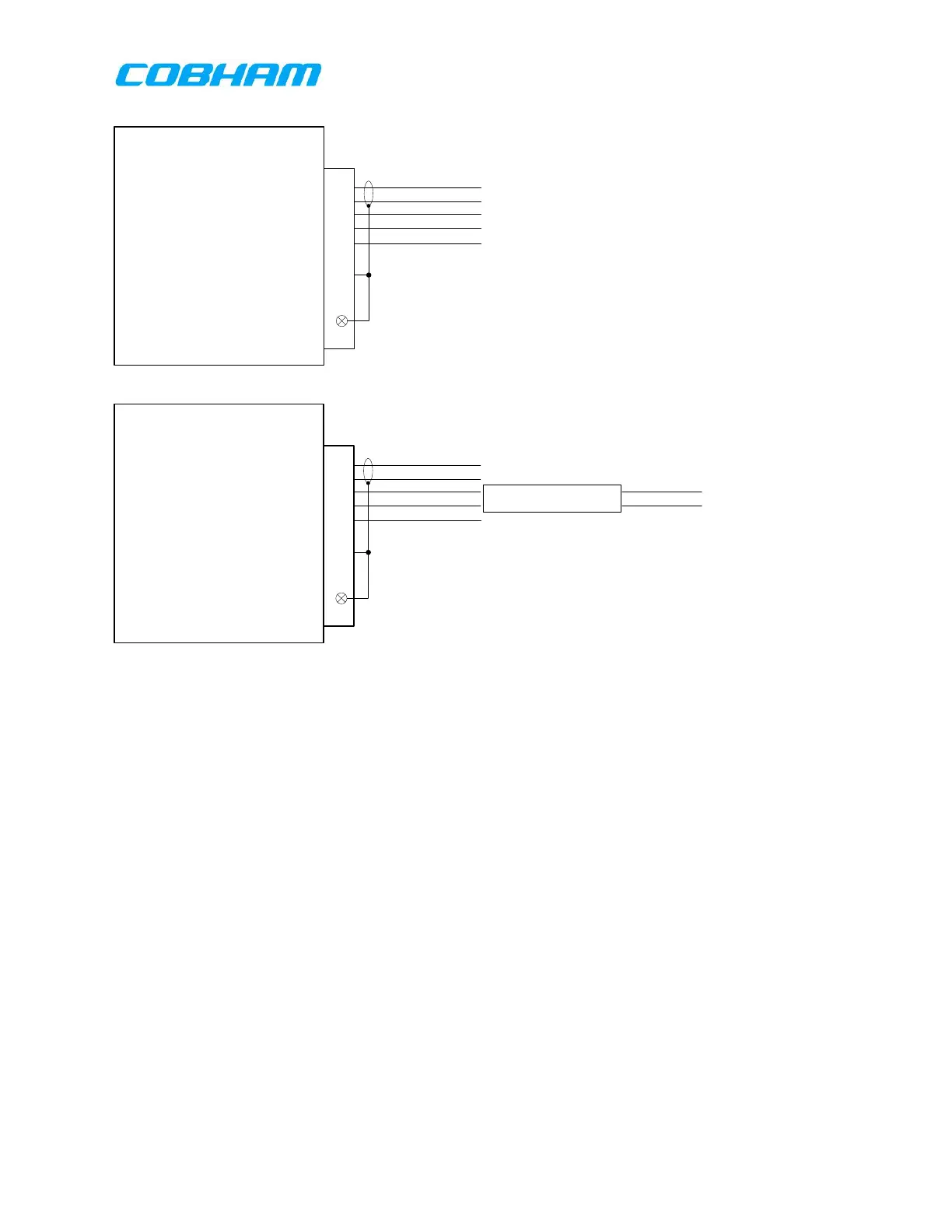

Audio Panel Connection for RT-7000 PMR/RMR with Mic Bias in Audio Panel
(Audio channels 1-8)
J101
RT-7000 PMR/RMR1
Audio Out x H
Audio Out x L
Mic In x H
Mic In x L
PTT x
Ground
Backshell
Audio output to audio panel
Audio Panel Connection for RT-7000 PMR/RMR with Mic Bias supplied by
RT7000 through an adapter
J101
Audio Out x H
Audio Out x L
Mic In x H
Mic In x L
PTT x
Ground
Backshell
10,25, or 100 mWatt
audio input from audio
panel, define in ICT
Ground for PTT
10,25, or 100 mWatt audio input from audio panel, define in ICT
Audio output to audio panel
AA34 or Model 247
Note: AA34 provides one channel of Mic Bias
The Model 247 provides three independent channels.
Figure 7-9: Alternate Audio Connections to Audio Panel with/without MIC BIAS adaptor
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
