COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 95 of 138

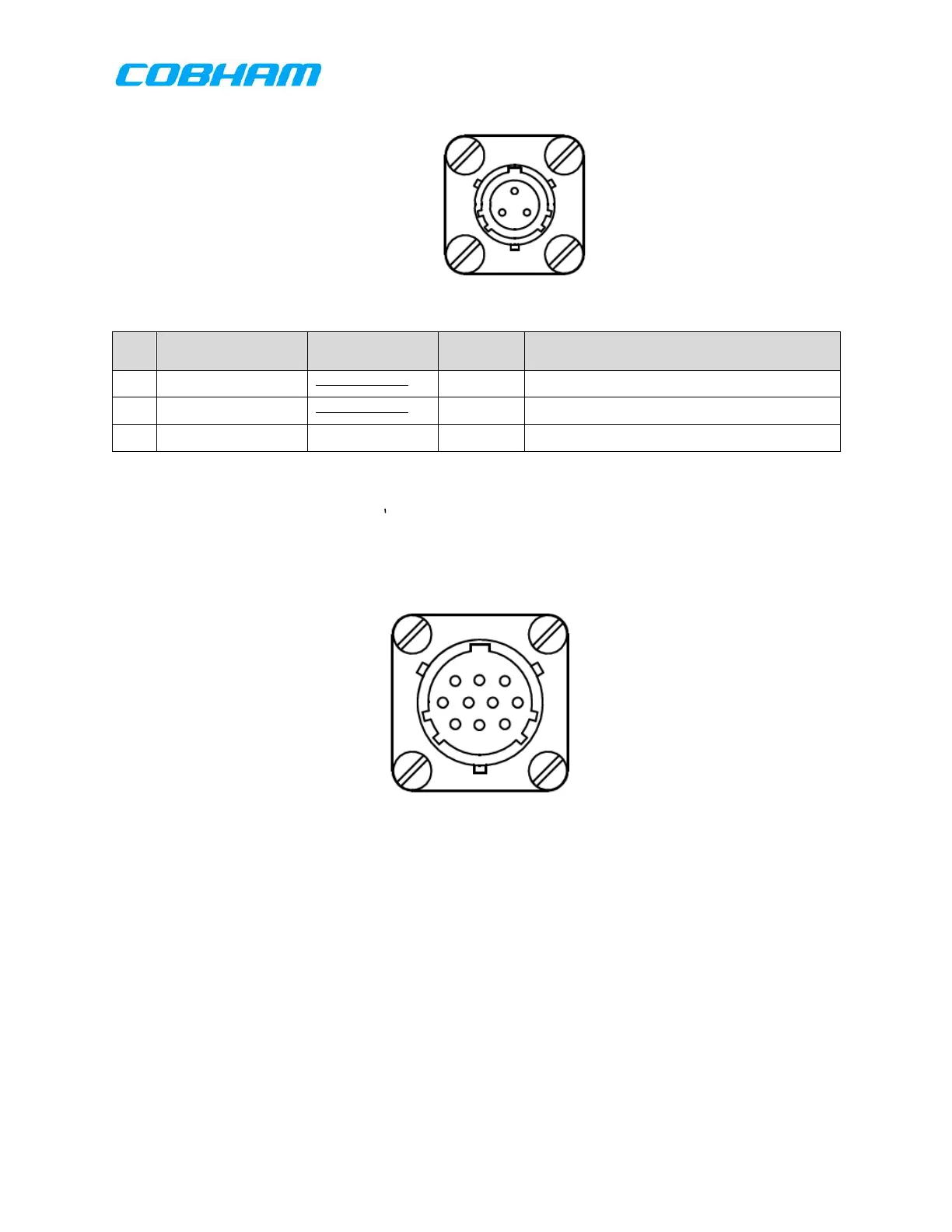

Figure 7-26: Antenna Tuner J2
PI
N
SIGNAL NAME
Connection
Wire
Destination
A
28 VDC
20
Aircraft 28V, 500mA
B
DC Return
20
Aircraft Power Return
C
Ground
NC
20
Backshell
Table 7-9: Antenna Tuner J2 Signals
(3) J3
The J3 connector provides tuning information between the RT-7000 PMR and the
tuner. J3 is a KPTO2E-12-10S, 10 pin connector, with aircraft mating connector:
KPT06E-12-10P.
Figure 7-27: Antenna Tuner J3
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
