COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 78 of 138
7.3.1 RT-7000 PMR/RMR CONNECTORS
(1) J101 Connector
The J101 connector provides system interconnects. J101 is a 78 pin D-sub
connector with mating connector Positronic P/N ODD78S1000S/AA-14 or
equivalent.

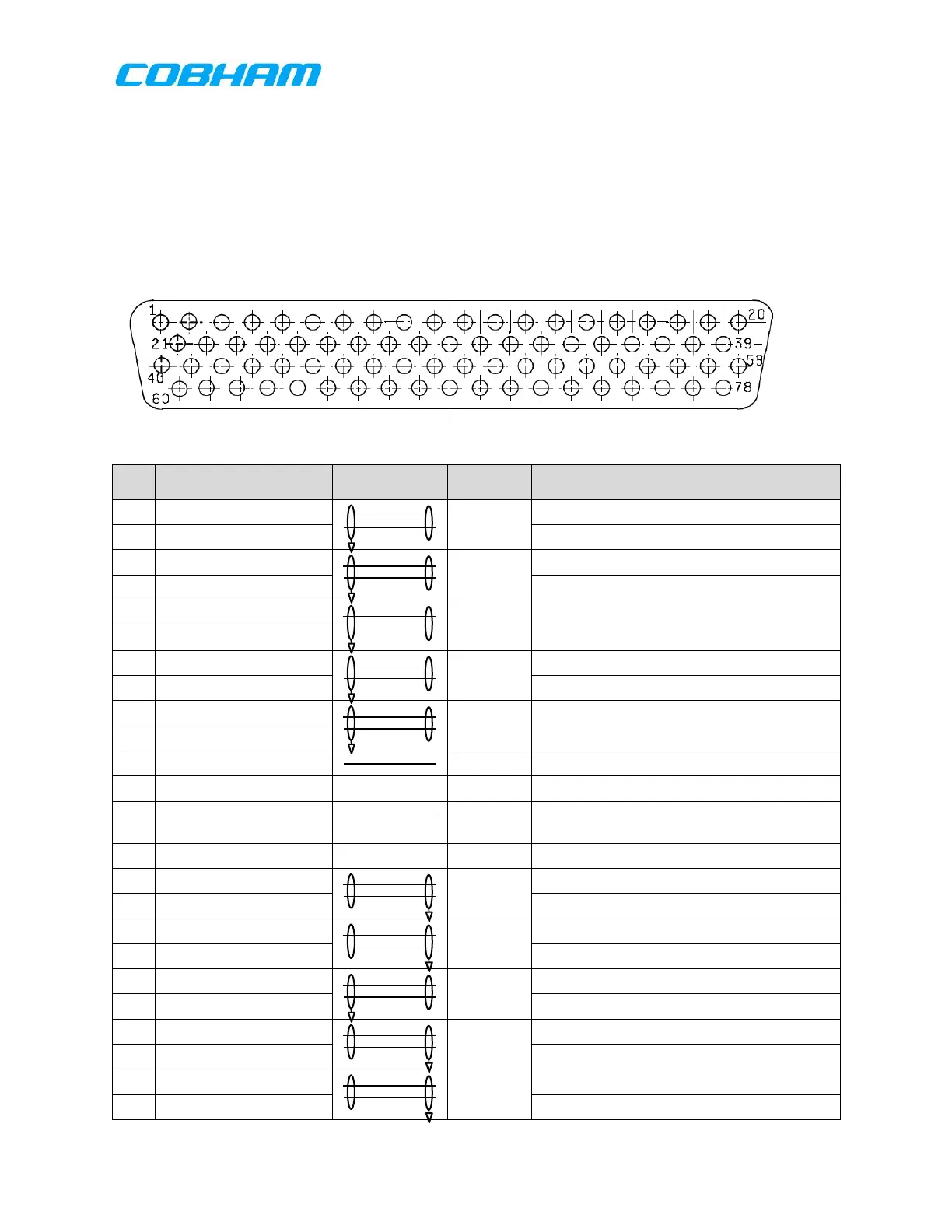

Figure 7-20: J101 Connector
PI
N
SIGNAL NAME
Connection
Wire
Destination
1
Audio 1 Out Hi
24 TSP
Audio Panel In Hi (typically Channel 1)
2
Audio 1 Out Lo
Audio Panel In Lo (typically Channel 1)
3
Audio 6 Out HI
24 TSP
CVR Audio Output
4
Audio 6 Out Lo
CVR Audio Output
5
Ext Radio 2 AUD Hi
24 TSP
Audio Panel In Hi (typically Channel 5)
6
Ext Radio 2 AUD Lo
Audio Panel In Lo (typically Channel 5)
7
Audio 3 Out Hi
24 TSP
Audio Panel In Hi (typically Channel 3)
8
Audio 3 Out Lo
Audio Panel In Lo (typically Channel 3)
9
Ext Radio 1 AUD Hi
24 TSP
Audio Panel In Hi (typically Channel 4)
10
Ext Radio 1 AUD Lo
Audio Panel In Lo (typically Channel 4)
11
Audio 3 PTT In_N
22
Audio Panel PTT Out for Channel 3
12
Test_N
NC
-
Reserved for Factory Use
13
Day/Night_N
22
Aircraft Day/Night switch (Optional) (PMR
only)
14
PS Enable_N
22
Remote Radio Power Supply Enable (Optional)
15
Antenna Control 1 RX LO
24 TSP
Antenna Tuner 1 TX- (P1-D) (Optional)
16
Antenna Control 1 RX HI
Antenna Tuner 1 TX+ (P1-C) (Optional)
17
Antenna Control 3 RX LO
24 TSP
Antenna Tuner 3 TX- (P1-D) (Optional)
18
Antenna Control 3 RX HI
Antenna Tuner 3 TX+ (P1-C) (Optional)
19
Antenna Control 3 TX HI
24 TSP
Antenna Tuner 3 RX+ (P1-A) (Optional)
20
Antenna Control 3 TX LO
Antenna Tuner 3 RX- (P1-B) (Optional)
21
Jack 2 In Hi
24 TSP
Ext Radio 2 Out Hi (Optional)
22
Jack 2 In Lo
Ext Radio 2 Out Lo (Optional)
23
Jack 1 In Hi
24 TSP
Ext Radio 1 Out Hi (Optional)
24
Jack 1 In Lo
Ext Radio 1 Out Lo (Optional)
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
