COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 79 of 138

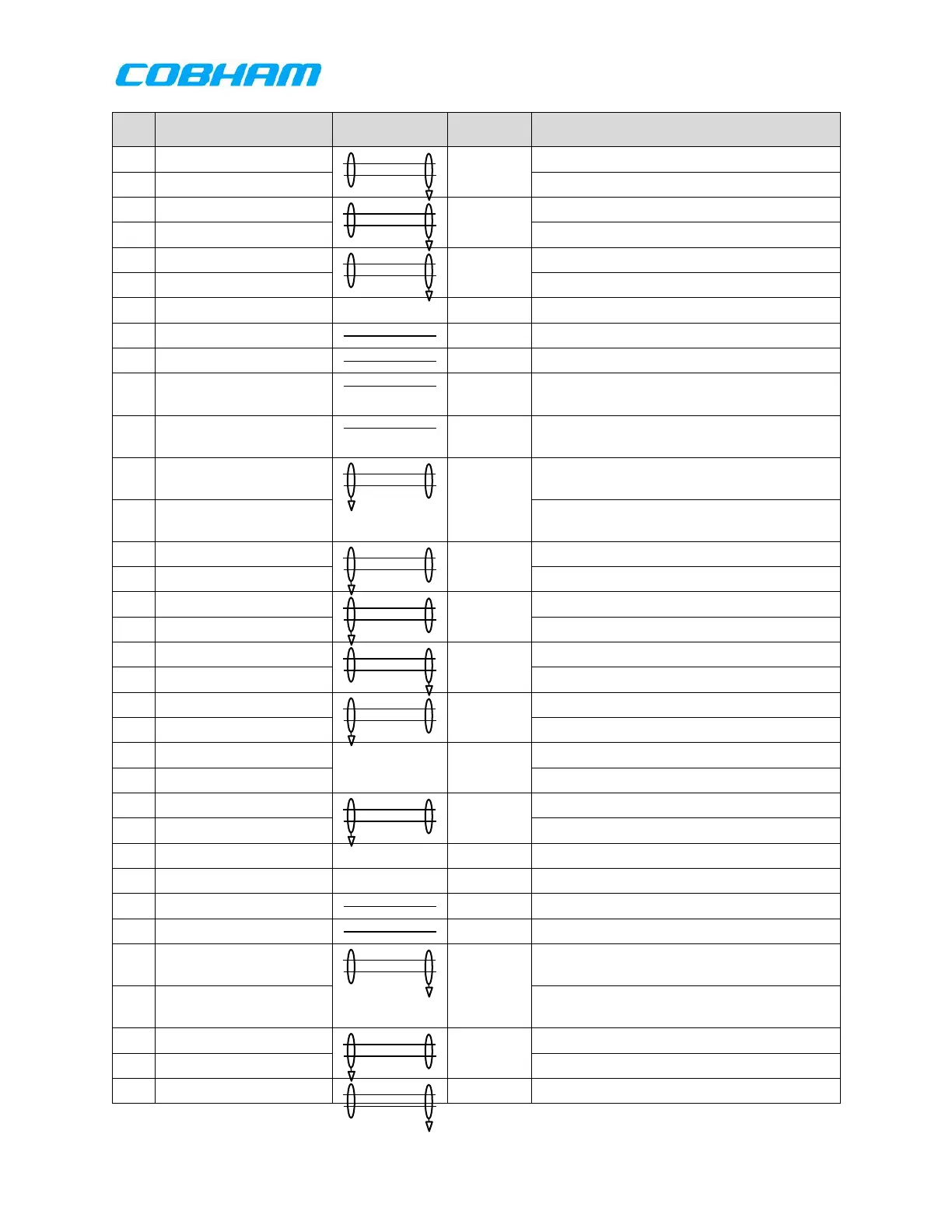

PI
N
SIGNAL NAME
Connection
Wire
Destination
25
Mic 3 In Hi
24 TSP
Audio Panel Out Hi (typically Channel 3)
26
Mic 3 In Lo
Audio Panel Out Lo (typically Channel 3)
27
Mic 2 In Hi
24 TSP
Audio Panel Out Hi (typically Channel 2)
28
Mic 2 In Lo
Audio Panel Out Lo (typically Channel 2)
29
Ext Radio 1 MIC Hi
24 TSP
Audio Panel Out Hi (typically Channel 5)
30
Ext Radio 1 MIC Lo
Audio Panel Out Lo (typically Channel 5)
31
Reserved
NC
-
-
32
Audio 2 PTT In*
22
Audio Panel PTT Out for Channel 2
33
Audio 1 PTT In*
22
Audio Panel PTT Out for Channel 1
34
Ext Radio 2 PTT IN_N
22
Audio Panel PTT for Ext Radio 2 (Typically
Channel 5) (Optional)
35
Ext Radio 1 PTT IN_N
22
Audio Panel PTT for Ext Radio 1 (Typically
Channel 4) (Optional)
36
Remote Radio Control TX
HI
24 TSP
RCDU (or third party control head) RX+ (J101-
54) (Optional)
37
Remote Radio Control TX
LO
RCDU (or third party control head) RX- (J101-
55) (Optional)
38
Antenna Control 1 TX LO
24 TSP
Antenna Tuner 1 RX+ (P1-A) (Optional)
39
Antenna Control 1 TX HI
Antenna Tuner 1 RX- (P1-B) (Optional)
40
Jack 1 Out Hi
24 TSP
External Radio 1 Jack Audio In Hi (Optional)
41
Jack 1 Out Lo
External Radio 1 Jack Audio In Lo (Optional)
42
Ext Radio 2 MIC Hi
24 TSP
Audio Panel Out Hi (typically Channel 4)
43
Ext Radio 2 MIC Lo
Audio Panel Out Lo (typically Channel 4)
44
Jack2 Out Hi
24 TSP
External Radio 2 Jack Audio In Hi (Optional)
45
Jack2 Out Lo
External Radio 2 Jack Audio In Lo (Optional)
46
Reserved
NC
24 TSP
47
Reserved
48
Audio 2 Out Hi
24 TSP
Audio Panel In Hi (typically Channel 2)
49
Audio 2 Out Lo
Audio Panel In Lo (typically Channel 2)
50
Reserved
NC
-
-
51
Reserved
NC
-
-
52
Zeroize_N
22
Aircraft Zeroize switch (Optional)
53
NVIS_N
22
Aircraft NVIS switch (Optional) (PMR only)
54
Remote Radio Control RX
HI
24 TSP
RCDU (or third party control head) TX +
(J101-36) (Optional)
55
Remote Radio Control RX
LO
RCDU (or third party control head) TX - (J101-
37) (Optional)
56
Antenna Control 2 TX HI
24 TSP
Antenna Tuner 2 RX+ (P1-A) (Optional)
57
Antenna Control 2 TX LO
Antenna Tuner 2 RX- (P1-B) (Optional)
58
Antenna Control 2 RX HI
24 TSP
Antenna Tuner 2 TX- (P1-D) (Optional)
