Pin(s)
Signal Name
Definition
13
Day/Night_N
A ground on this pin invokes nighttime lighting mode to reduce
the brightness of the panel lighting. Lighting levels are
configurable
14
PS Enable_N
Grounding this pin enables the power supply in remote radios
being controlled by the RT-7000 RCDU
15,16
Remote RCDU 1 TX+/-
These pins provide an RS-485 data signal to secondary RCDU
(see Figure 7-5)
19,20
Remote RCDU 2 TX+/-
These pins provide an RS-485 data signal to the primary
RCDU (see Figure 7-5)
36. 37
Remote Radio Control
1 TX+/-
These pins provide an RS-422 data signal to the RT-7000 PMR
53
NVIS_N
A ground on this pin invokes NVIS lighting mode to reduce the
brightness of the panel lighting
54,55
Remote Radio Control
RX+/-
These pins receive an RS-422 data signal from the RT-7000
PMR
61,60
5 VDC/28 VDC
Backlighting, Ground
These pins provide the backlighting reference to the panel.
Selection of 5 VDC or 28 VDC is a programmable option The
RT-7000 PMR does not draw significant power from the
backlighting source, but only uses it as a reference.
Table 7-5: RCDU Signal Definitions
(2) M2J2
The M2J2 connector provides power and ground interconnects. M2J2 is a 9 pin D-sub
connector with mating connector Positronic P/N RD9S1000S/AA-14 or equivalent.

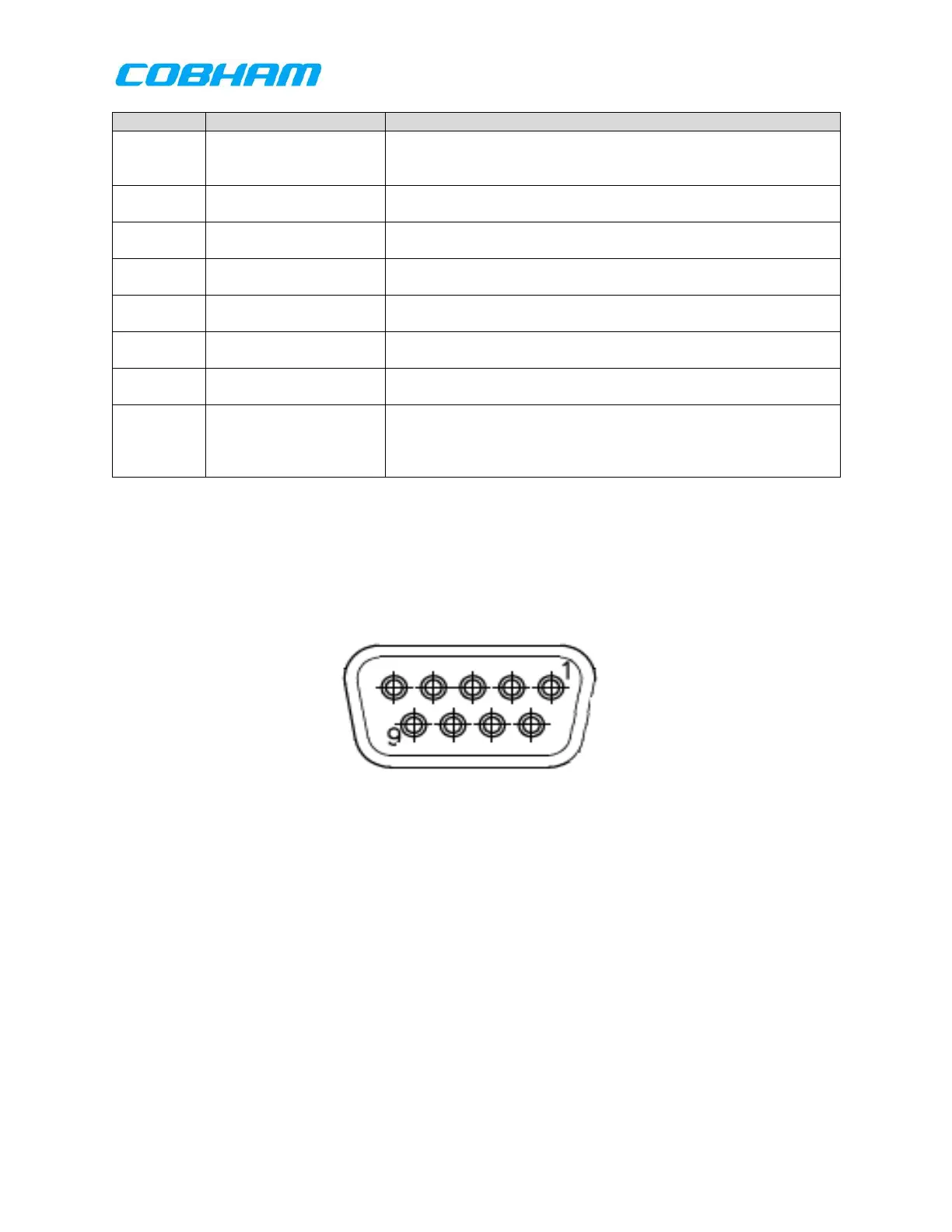

Figure 7-23: RCDU Power Connector M2J2
