COBHAM RT-7000 PMR User Manual

150-071724 Rev N
This document contains proprietary information,
see proprietary statement on first page.
Page 76 of 138

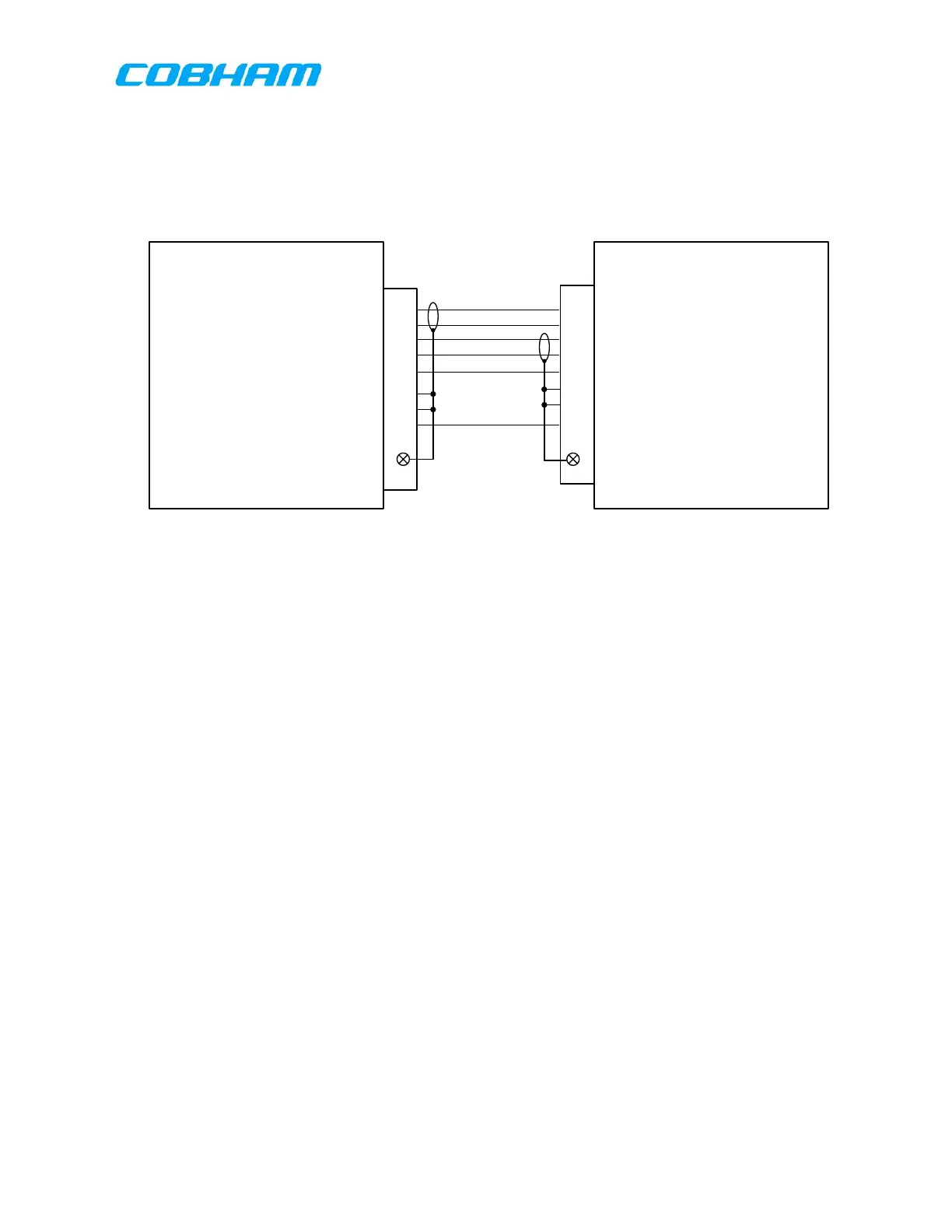

The user may want to relay or simulcast between two RMRs in a dual installation (or
even between two PMRs). The figure below indicates an approach to do this. This uses
RT5 in each radio as a link to the other radio. The user may want to identify RT5 using
the ICT to indicate that this is a relay channel.
RT-7000 PMR/RMR1
Jack 2 Out H
Jack2 Out L
Jack 2 In H
Jack2 In L
Jack2 PTT Out
Jack2 PTT Ground
Ground
PTT5 In
Backshell
J101
RT-7000 PMR/RMR2
Jack 2 In H
Jack 2 In L
Jack 2 Out H
Jack 2 Out L
PTT5 In
Jack 2 PTT Ground
Ground
Jack 2 PTT Out
Backshell
J101
Figure 7-18 : Relay between two RMR/PMRs
NOTE: The diagram shown above will require users to know the fifth slot, RT-5, as
shown on the display is a hardware connection between the two RT-7000 series
products. When you select RT-5 for transmit on one RT-7 it will then transmit to the
other.
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
