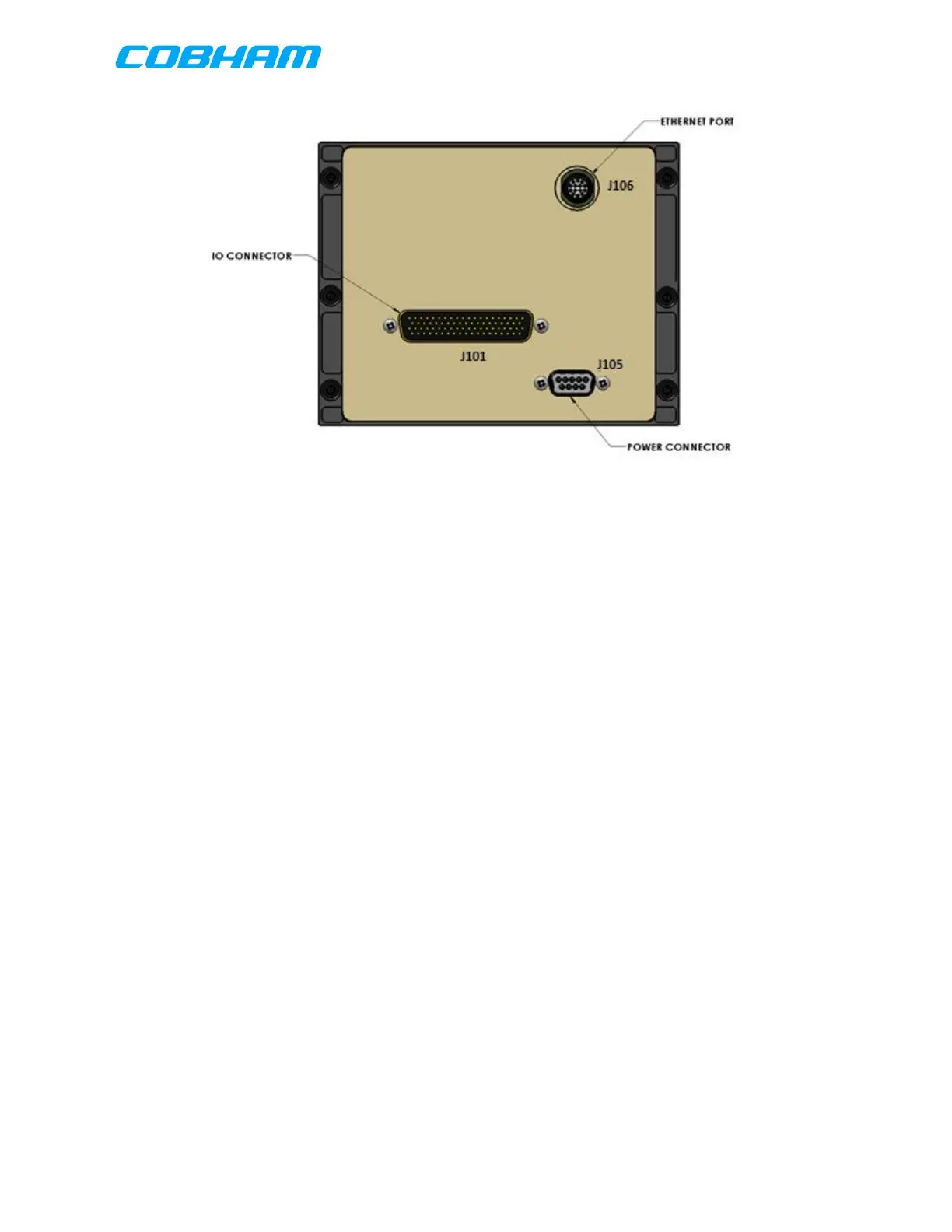

Figure 7-3: Rear View of RCDU
7.2 WIRING CONSIDERATIONS
To simplify the system’s design, follow the steps below:
Step 1: Determine the type and number of radios - The RT-7000 can contain
one to three transceivers. *See section 5.2 for more information on the System
Configuration and port connections.
Step 2: Determine the type of antennas - For each transceiver, determine the
appropriate antenna for the RT-7000. For each transceiver the RT-7000 contains,
you will need an antenna.
The process begins by determining if the user needs optimum 30-88MHz
performance. If so, the recommended antenna system will be a “tunable”
antenna (i.e. one that is electrically tuned for maximum performance). If the
user rarely uses 30-88 MHz, then a passive antenna is suggested. Passive
antennas are less expensive and less complex to install.
Performance in the 30-88 MHz frequency range with a passive antenna may be
degraded versus an active antenna.
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
