The following are examples of ways to configure the aircraft installation:
Note: All tunable antennas will require an antenna tuner, even if not shown in these
diagrams. Each module will require its own antenna and tuner.

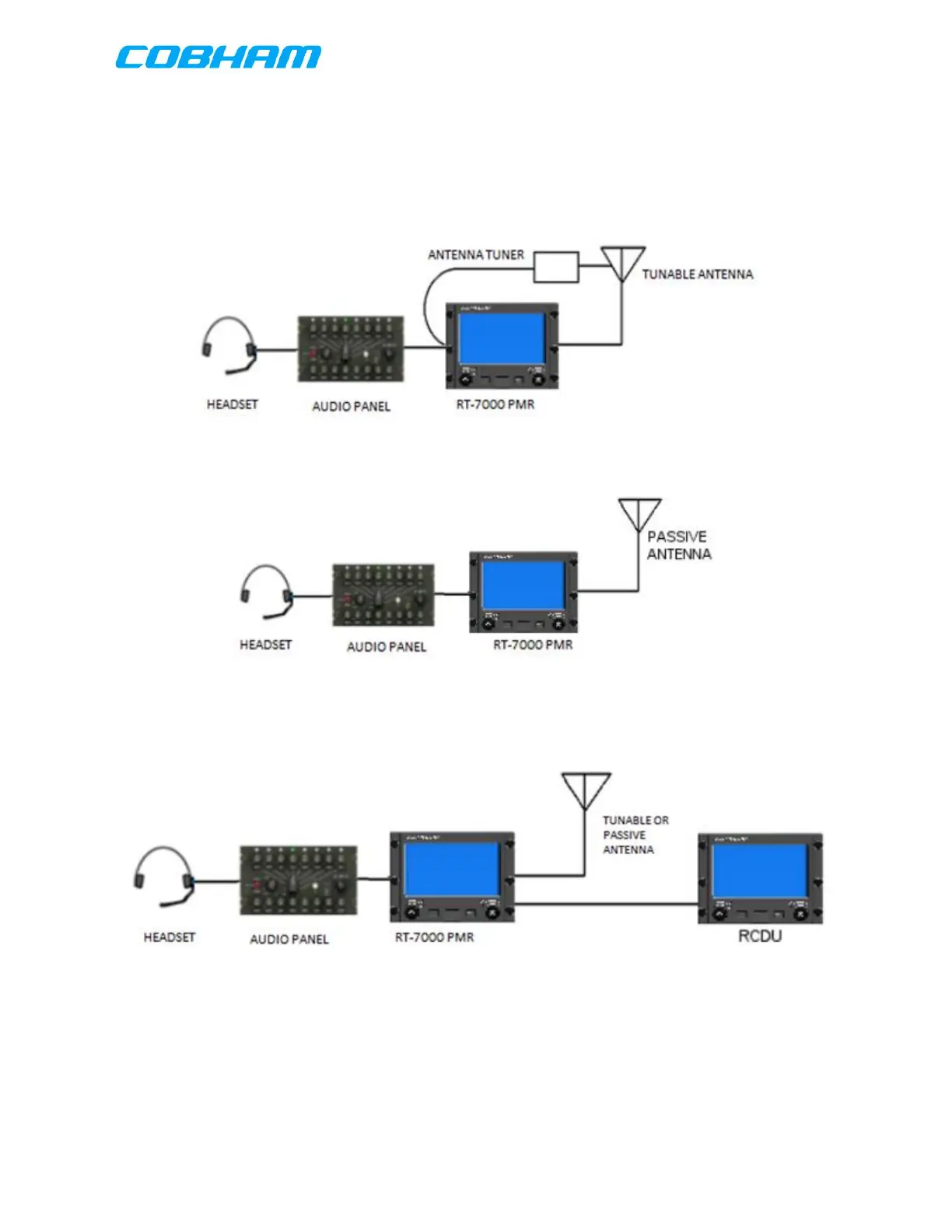

Figure 5-4: Single RT-7000 PMR with Active Antenna
Figure 5-5: RT-7000 PMR with Passive Antenna
Figure 5-6: RT-7000 PMR with optional RCDU
