Figure 9-12: RMR Configured for remote control.
9.7.2 RCDU 1 (PRIMARY) PROGRAMMING AND CONFIGURATION
This section will cover the PRIMARY RCDU programming. The Primary RCDU will coordinate all
communications between the RT-7000 RMRs, and the secondary programming and hence forth with
require configuration for each of the devices in the RCDU’s menu. Please observe that the first action is
to configure the RCDU Control to be selected to Primary (Orange). The next action is to select the RT-
7000’s that the RCDU can control (GREEN). The final action is to connect the secondary RCDU, which
will require setting the device to RCDU, and setting the Baud rate to match (BLUE).

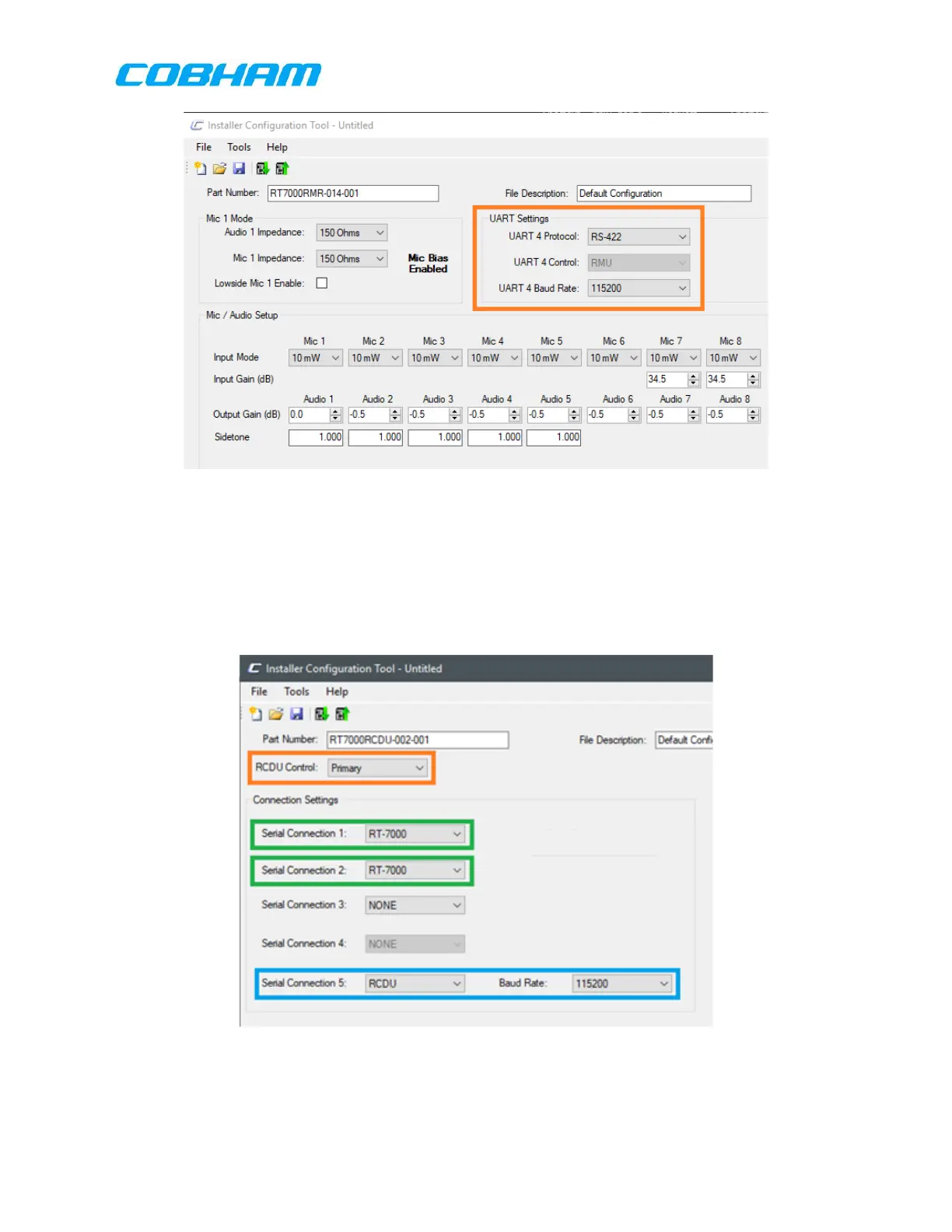

Figure 9-13: Primary RCDU Configratin Screen with dual RMR and dual RCDU
9.7.3 RCDU 2 (SECONDARY) PROGRAMMING AND CONFIGURATION
