This document contains proprietary information, see
proprietary statement on first page.

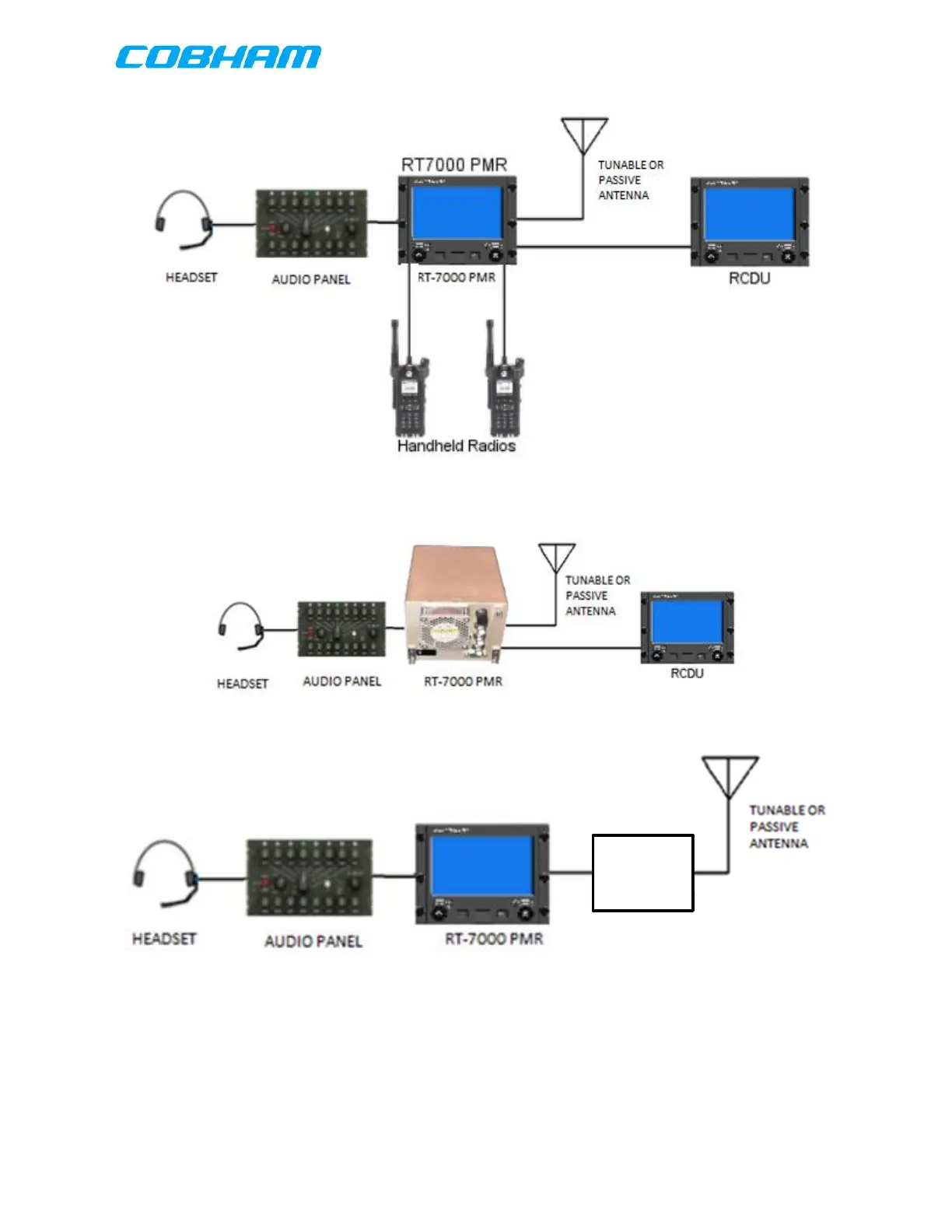

Figure 5-7: RT-7000 PMR with up to 2 (optional) Hand Held Radios and optional RCDU
Figure 5-8: RT7000 RMR with RCDU
Figure 5-9: RT-7000 PMR with 118 MHz HPF (for radio systems requiring certification to
TSO-C169a)
Note: Not all installation configurations are shown here. The 118 MHz HPF goes into
the antenna feed line, as shown above, for PMR and RMR installations with either a
passive or tunable antenna. If the system contains multiple Wideband Transceivers
(CWTs), a 118 MHz HPF is required in the antenna feed line for each CWT.
These commodities, technology or software are controlled in accordance with the United States Export Administration Regulations, Export Classification
Control Number (ECCN) EAR99. When exporting, diversion contrary to U.S. law is prohibited.
