Cognex DataMan 50 - PNP Configuration; NPN Configuration; Dataman 150 Digital Output Wiring Diagrams

PNPConfiguration
NPNConfiguration

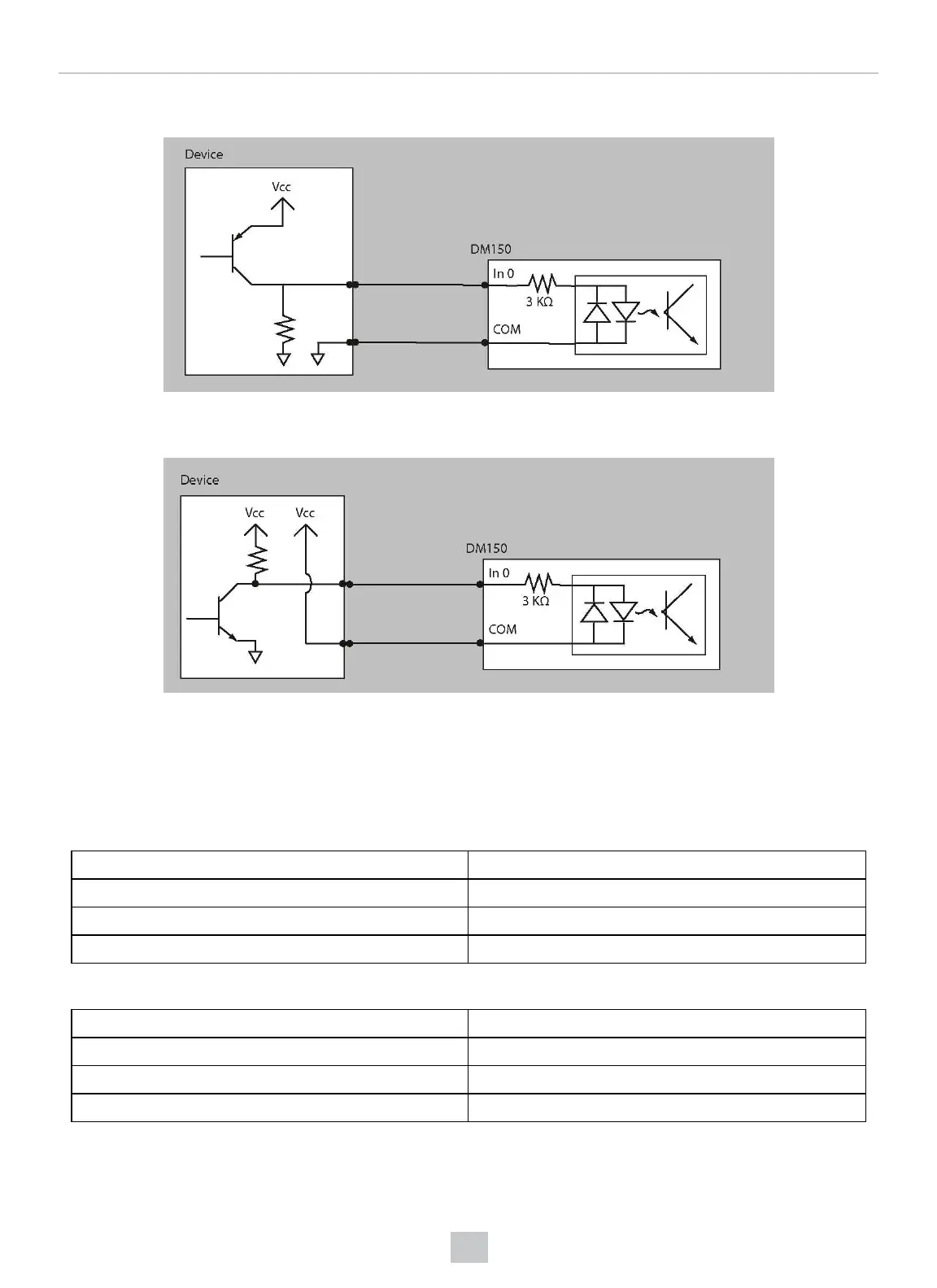

Dataman 150 Digital Output Wiring Diagrams
The digital outputs can be used as either NPN (pull-down) or PNP (pull-up) lines. For NPN lines, the external load
should be connected between the output and the positive supply voltage (<26 V). The outputs pull down to less than 3 V
when ON, which causes current to flow through the load. When the outputs are OFF, no current flows through the load.
NPN (pull down) output type characteristics are the following:
Applied voltage 26 VDC or less
Residual voltage 0.85 V or less
Maximum sink current 100 mA
Overcurrent protection multifuse - 160 mA
PNP (pull up) output type characteristics are the following:
Output voltage range 26 VDC or less
Residual voltage 0.85 V or less
Maximum source current 100 mA
Overcurrent protection multifuse - 160 mA
