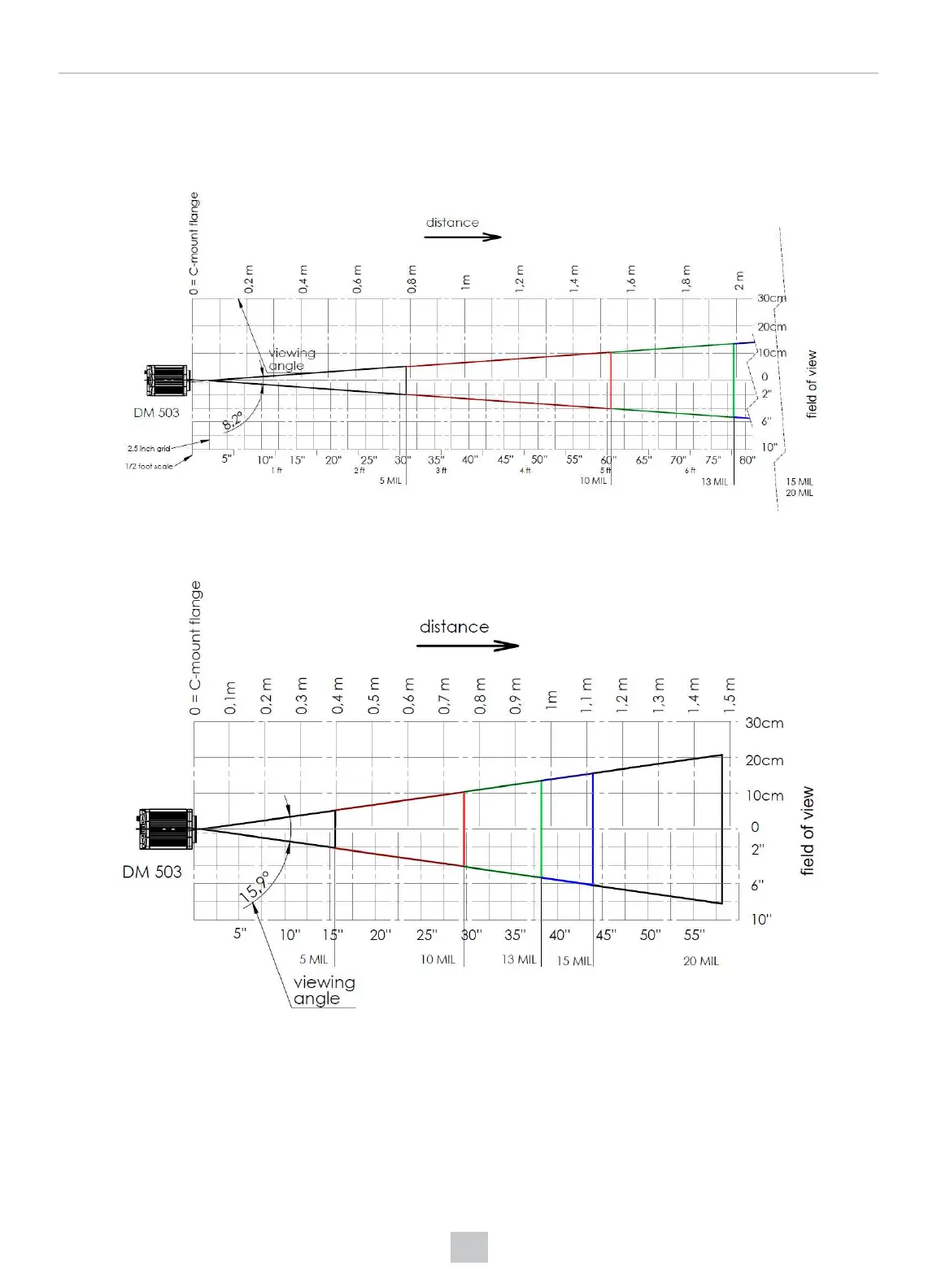

Scan Map for DataMan 503 Series Readers Using a 25 mm Lens Module
The following map shows the reading distance and field of view charts for the DataMan 503 reader with a 25 mm lens for
1-D codes. The minimum 1-D resolution is at 1.2 pixels per module.
The following map shows the reading distance and field of view charts for the DataMan 503 reader with a 25 mm lens for
2-D codes. The minimum 2-D resolution is at 2.5 pixels per module.
Scan Map for DataMan 503 Series Readers Using a 35 mm Lens Module
The following map shows the reading distance and field of view charts for the DataMan 503 reader with a 35 mm lens for
1-D codes. The minimum 1-D resolution is at 1.2 pixels per module.
