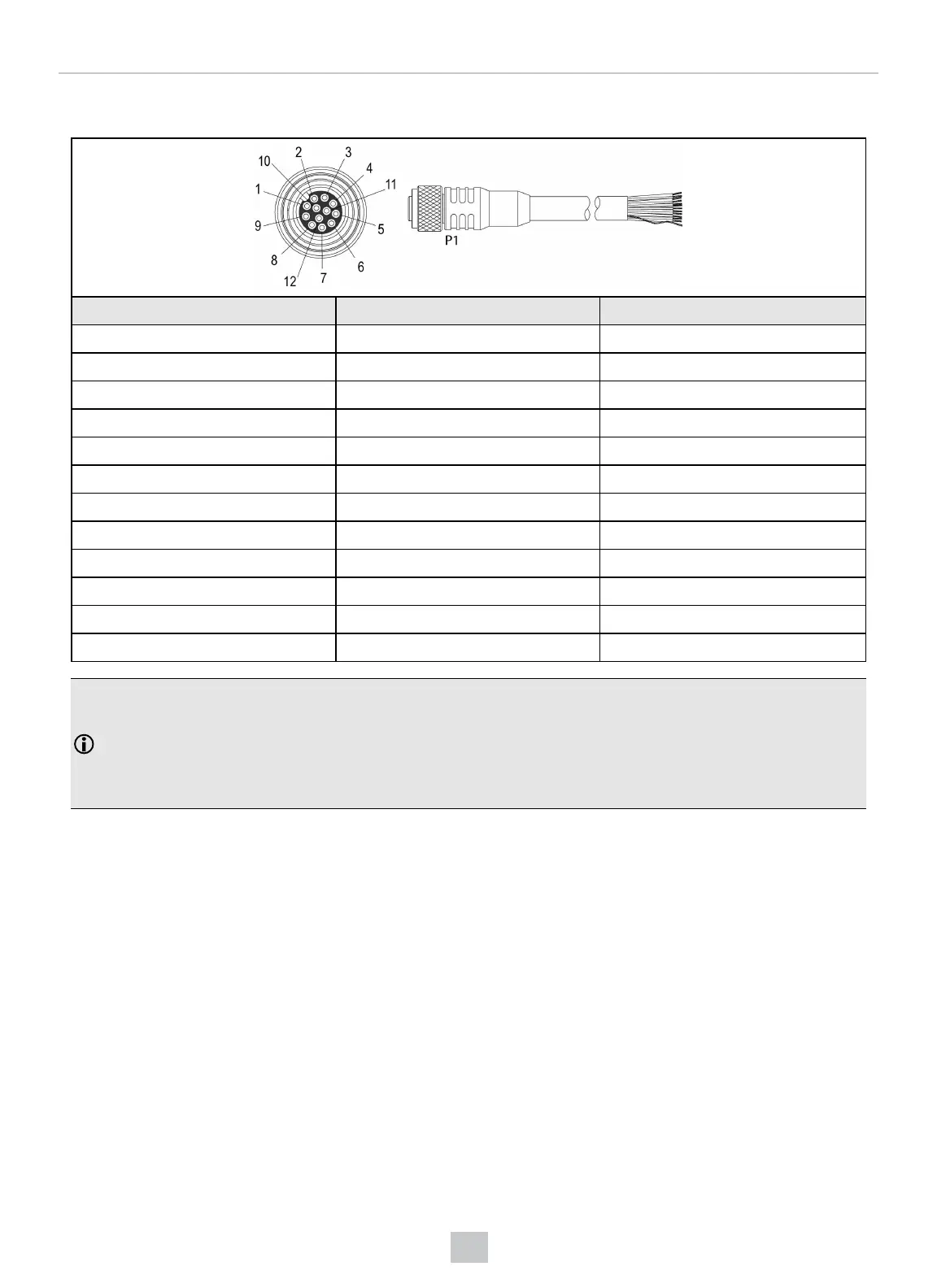

CCB-M12x12Fy-xx
Pin# Signal Names Wire Color
1 Out 2/In 2 White
2 TxD Green
3 RxD Pink
4 Out 3/In 3 Yellow
5 In 1 Grey
6 Common In Black
7 +24 VDC Brown
8 GND Blue
9 Common Out Purple
10 In 0 Red
11 Out 0 Grey/Pink
12 Out 1 Red/Blue
Note:
l Cables are sold separately.
l Perform wiring or adjustments to I/O devices when the reader is not receiving power.
l You can cut exposed wires short or trim wire ends. You also can tie the wires back if you use a tie made of
non-conductive material. Keep bare wires separated from the +24VDC wire.
Dataman 300 5m RS-232 Connection Cable (CCB-M12XDB9Y-05)
You can clip unused wires short or use a tie made of non-conductive material to tie them back.
The figure on the left shows the plug on the device.
111
Electrical Information
