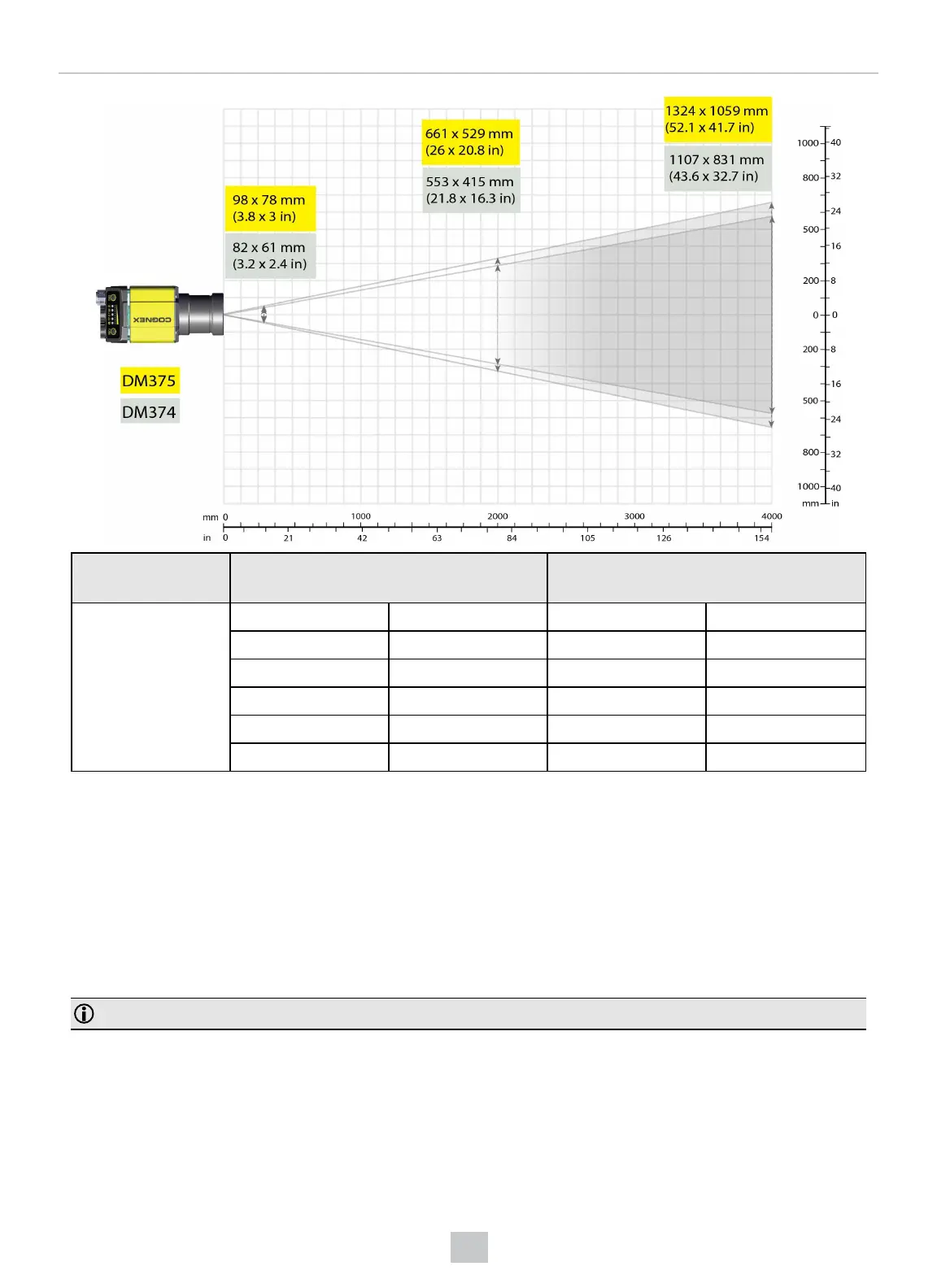

Cognex DataMan 50 - Dataman 470 Series Readers Reading Distances and Field of View

Device Distances in mm / 1Dmin code
24 mm HSLL
Distances in mm / 2Dmin code
24 mm HSLL
DM37x
1029 6 MIL 709 6 MIL
1370 8 MIL 944 8 MIL
1711 10 MIL 1178 10 MIL
2223 13 MIL 1530 13 MIL
2564 15 MIL 1764 15 MIL
3417 20 MIL 2351 20 MIL
DataMan 470 Series Readers Reading Distances and Field of
View
The following maps show the reading distance and field of view charts for the various lenses that can be used with the
DataMan 470 series readers. Reading distance values are also provided for 1-D and 2-D example code distances.
Reading Distance and Field of View for DataMan 470 Series Readers with a
10 mm High-Speed Liquid Lens
Note: Due to tolerances, ranges can vary by +/- 5 % from unit to unit.
The map below shows the field of view (FoV) of the DataMan 470 series readers with a 10 mm high-speed liquid lens.
