DataMan 50 and 60 External Load Strobe Output

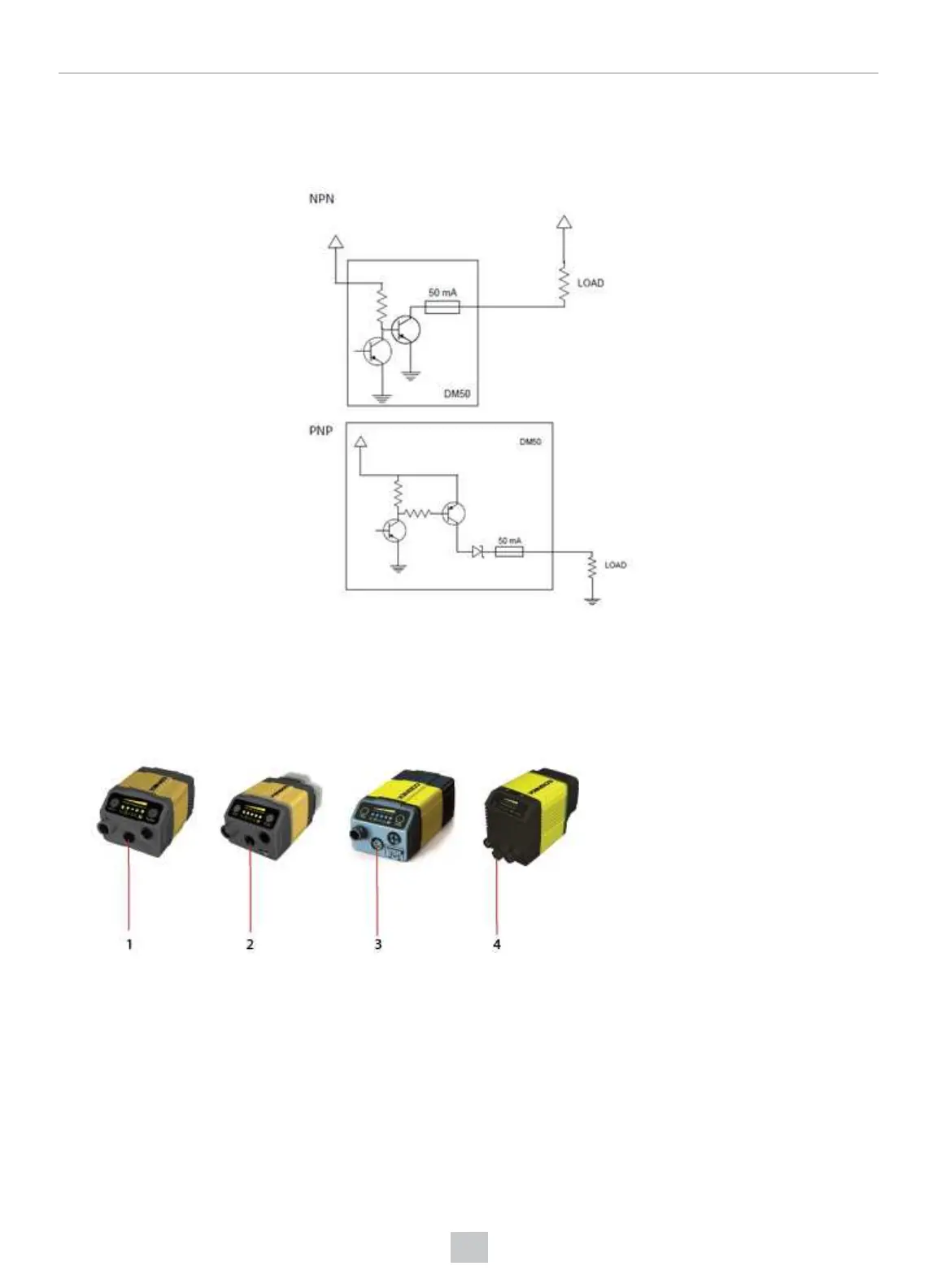

The following image shows the external load strobe output for the DataMan 50. The DataMan 60 has the same
characteristics.
DataMan 300, 360, 370, and 470 Series Readers External Lighting
On the back of the reader, there is a socket dedicated to external light control (1, 2, 3, and 4 in the following image).
There are four mounting holes on the front of the reader to mount external illumination.
