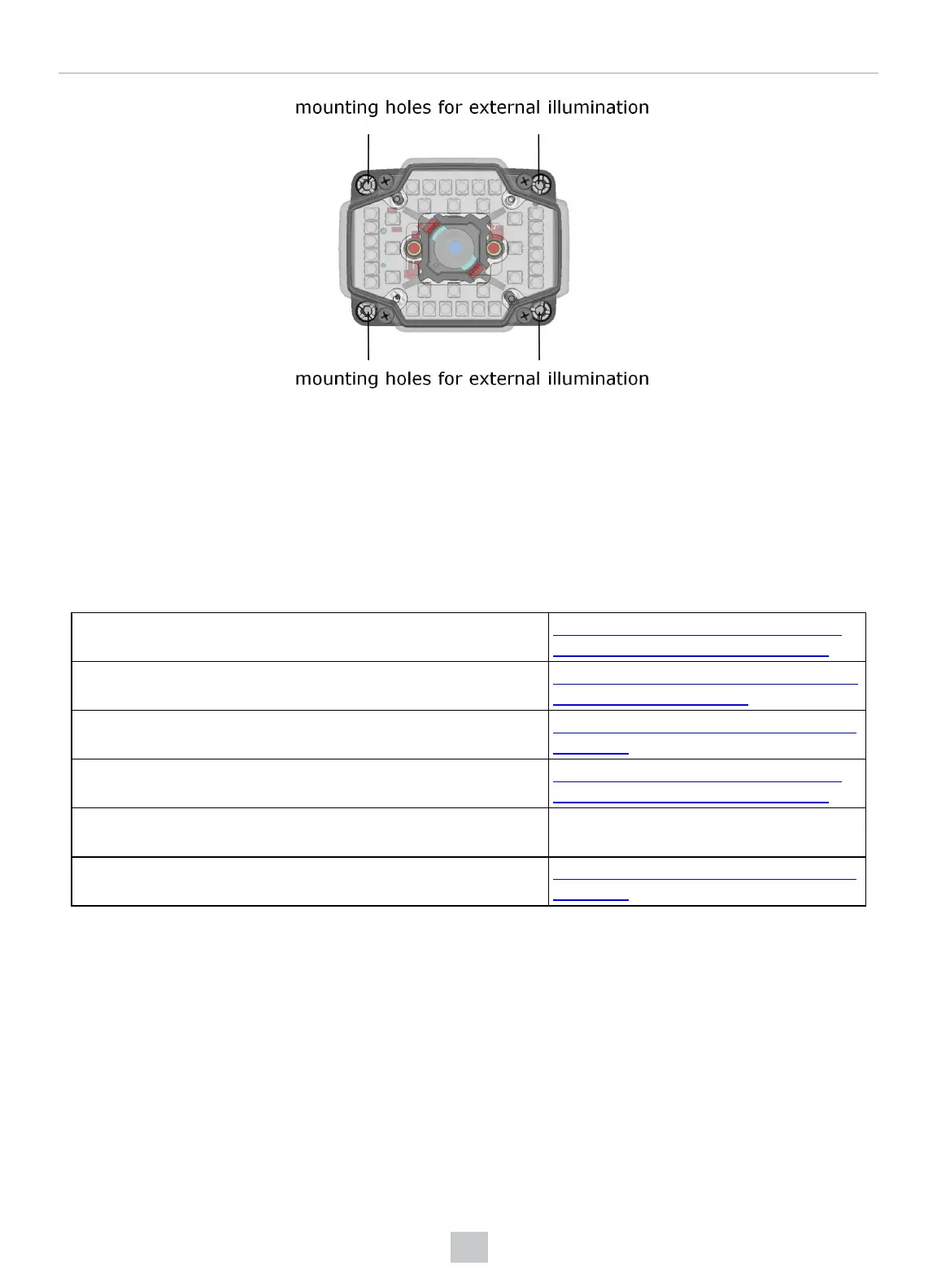

You can control the intensity output of the external illumination connector if the external illumination you use supports
this control. In the DataMan Setup Tool, go to the Optimize Image pane and check the External checkbox. You can also
choose your light type from the drop-down box below. In the Optimize Image pane's Advanced tab, you can make
further external illumination settings.
The DataMan 300, 360, 370, and 470 series readers support high power illumination accessories. For more information,
see the Accessories sections in the DataMan 300 ReferenceManual, the DataMan 360 Reference Manual, the DataMan
370 Reference Manual, and the DataMan 470 Reference Manual.
For detailed instructions on how to set the DataMan 370 and 470 series readers up with high power illumination
accessories, see the following sections:
DataMan 370 series readers with High Power Integrated Light Installing the Liquid Lens Module with High
Power Integrated Light (HPIL) on page58
DataMan 370 series readers with High Power Illumination Accessory Installing a Lens with High Power Illumination
Accessory (HPIA) on page62
DataMan 370 series readers with High Power Integrated Torch (HPIT) Installing High Power Integrated Torch (HPIT)
on page64
DataMan 470 series readers with High Power Integrated Light Installing the Liquid Lens Module with High
Power Integrated Light (HPIL) on page58
DataMan 470 series readers with High Power Illumination Accessory Installing a Lens with High Power Illumination
Accessory (HPIA) on page1
DataMan 470 series readers with High Power Integrated Torch (HPIT) Installing High Power Integrated Torch (HPIT)
on page64
External Light Mounting Brackets
You can mount your reader using external light mounting brackets. The brackets are intended to mount any of the
different lights to the reader. They can also be used to mount the reader (with lights attached) to your machine. Pivot
mounting, as illustrated, is optional. Perform the following steps:
