DataMan 280 Discrete I/O Connector
CCBL-05-01 and CCB-PWRIO-05
The Power and I/O Breakout cable provides access to trigger and high-speed outputs. For RS-232, use the Power
Supply return path for ground.

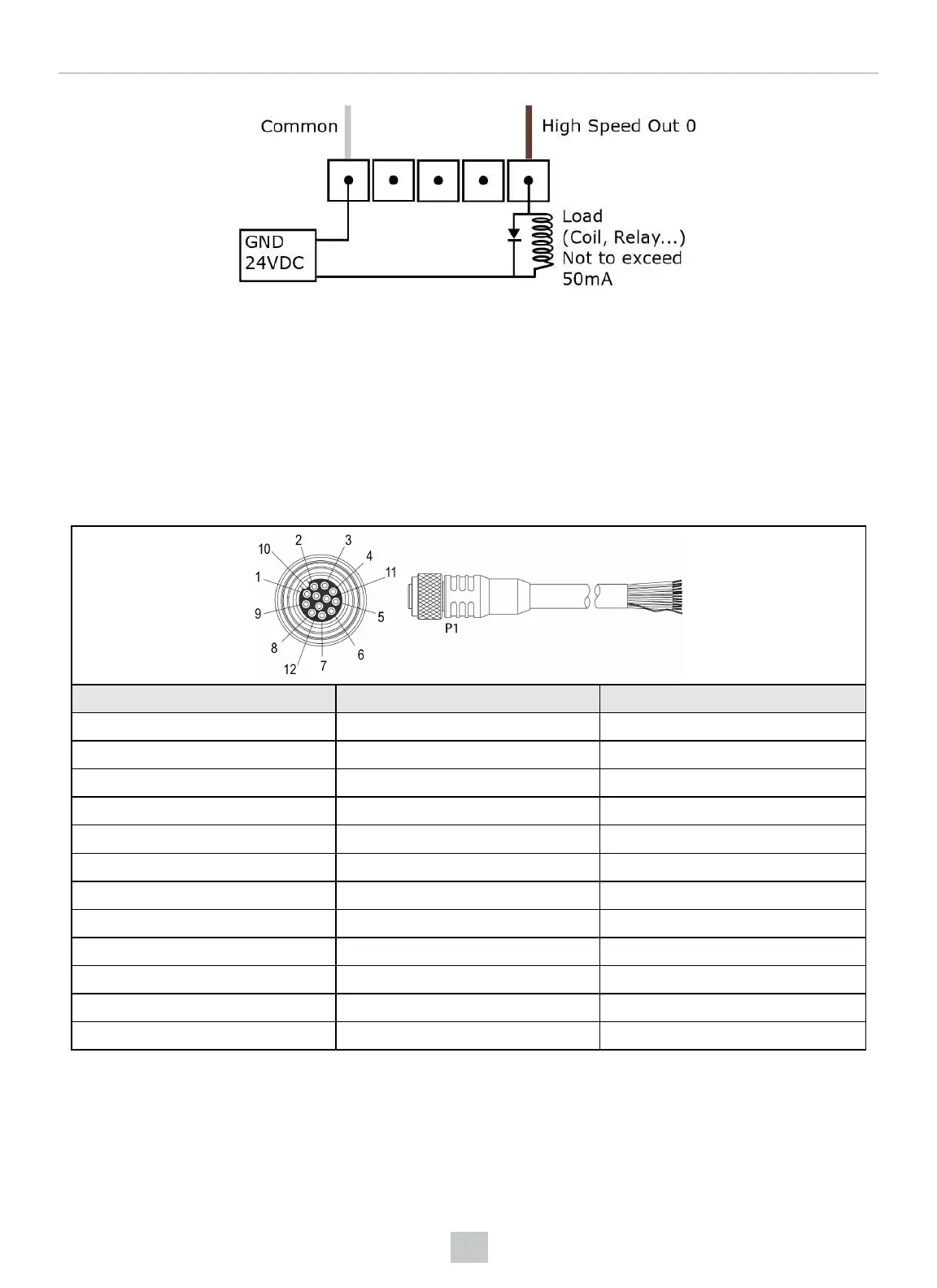

The figure on the left shows the plug on the device.
Pin# Signal Names Wire Color
1 Out 2/In 2 Yellow
2 TxD White/Yellow
3 RxD Brown
4 Out 3/In 3 White/Brown
5 In 1 Violet
6 Common In White/Violet
7 +24 VDC Red
8 GND Black
9 Common Out Green
10 In 0 Orange
11 Out 0 Blue
12 Out 1 Grey
110
Electrical Information
