DataMan 300, 360, 370, and 470 Series Readers Discrete I/O
Connector
The Breakout cable provides access to trigger and high-speed outputs. You can clip unused wires short or use a tie
made of non-conductive material to tie them back. For RS-232, use the Power Supply return path for ground.

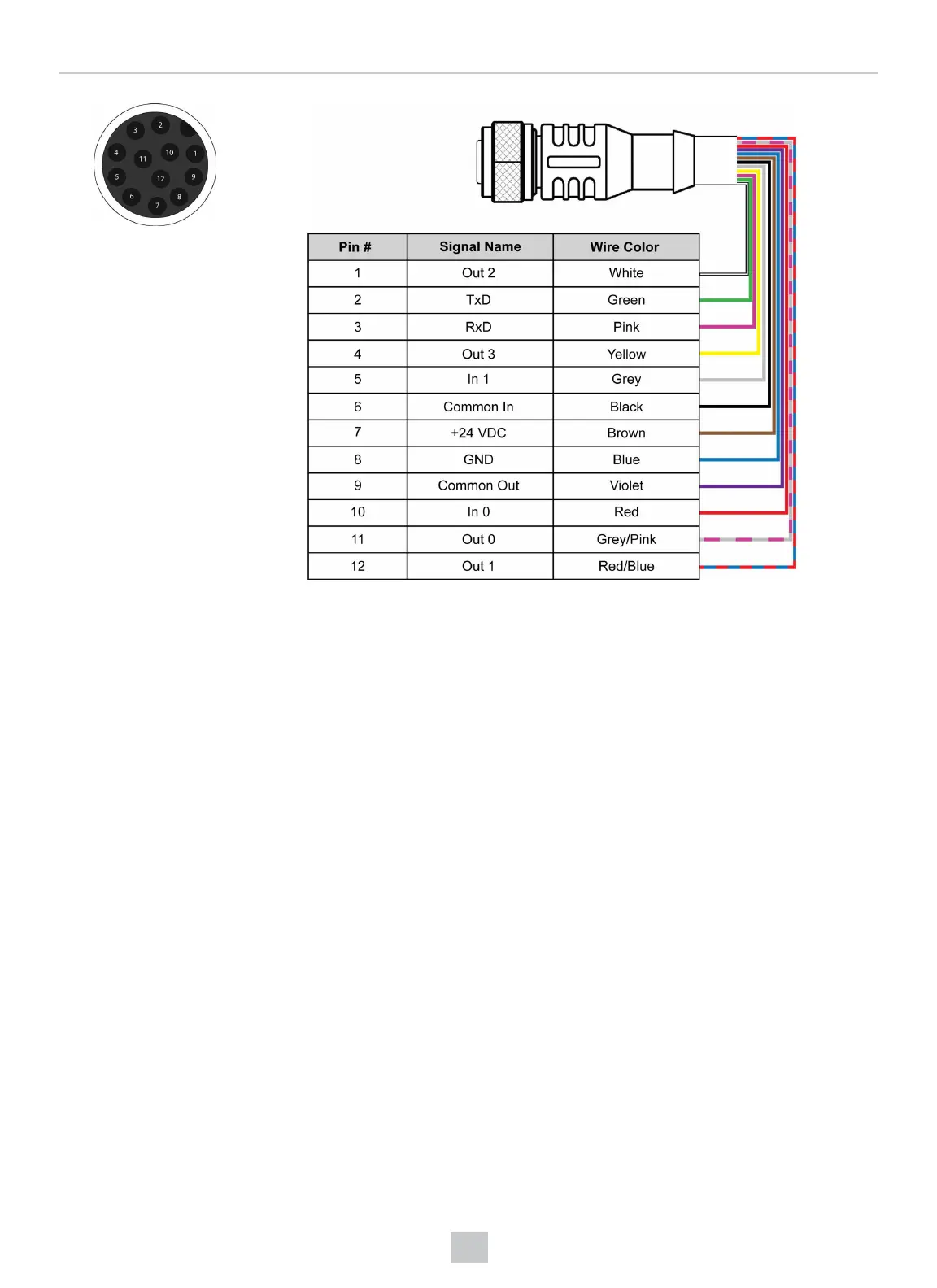

5m Breakout Cable (CCBL-05-01)
The figure on the left shows the plug on the device.
112
Electrical Information
