DataMan 50 and 60 RS-232 & Flying Leads I/O Cable

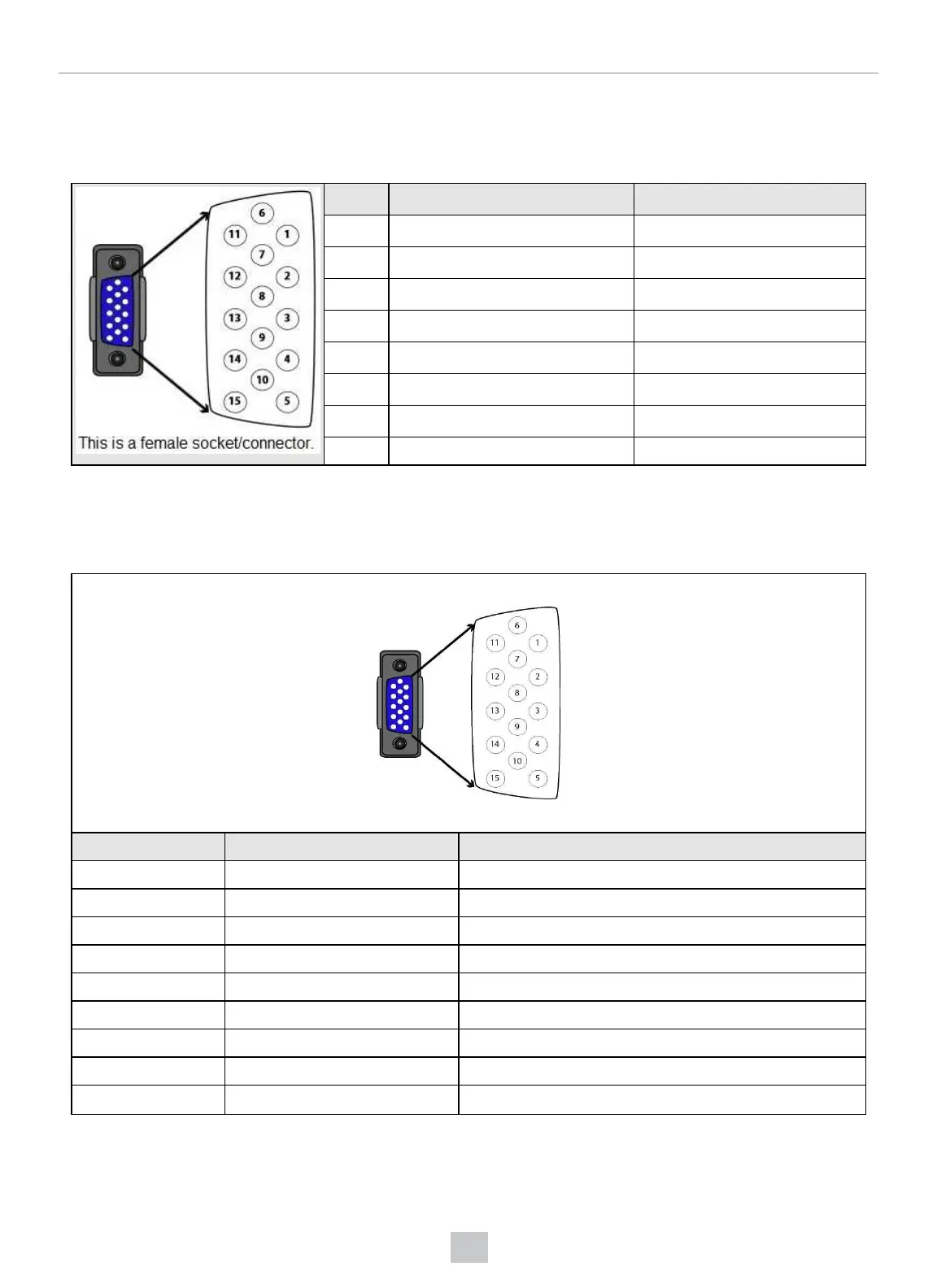

You can connect a cable with RS-232 & flying leads (DM-RS232IO-00) to the cable that is attached to the device. The
following table shows the pinout and color description of the flying leads.
PIN Color Signal
4 Black GND
5 Brown/White VDC
7 Blue/White Output-0
8 White Input-0
9 White/Black Input-1
11 Light Blue/Black Output-1
12 Light Blue/Yellow Output-Common
13 Light Blue/Green Output-Strobe
DataMan 50 and 60 Flying Leads Cable
You can connect a cable with flying leads (DM50-PWRIO-05) to the cable that is attached to the device. The following
table shows the pinout and color description of the flying leads.
This is a female connector/socket.
IN Color Signal
2 Green TxD
3 Green/Black RxD
4 Red GND
5 Brown/White DC+ (system power, 5-24 VDC)
6 Blue RTS
7 Blue/White Output-0
8 White Input-0
9 White/Black Input-1
10 Light Blue CTS
