Cognex DataMan 50 - DataMan 150 Series Electrical Connections

DataMan 70 Serial IO Adapter (DMA-SERIALREST-ST)
This is a male connector/plug.
Pin Number Signal Name
1 Reserved
2 TxD
3 RxD
4 GND
5 DC+ (system power, 5-24 VDC)
6 NC
7 Output-0
8 Input-0
9 NC
10 NC
11 NC
12 Output-Common
13 NC
14 Reserved
15 Reserved
DataMan 150 USB Cable
The DataMan 150 is available with USB and RS-232 communication options.

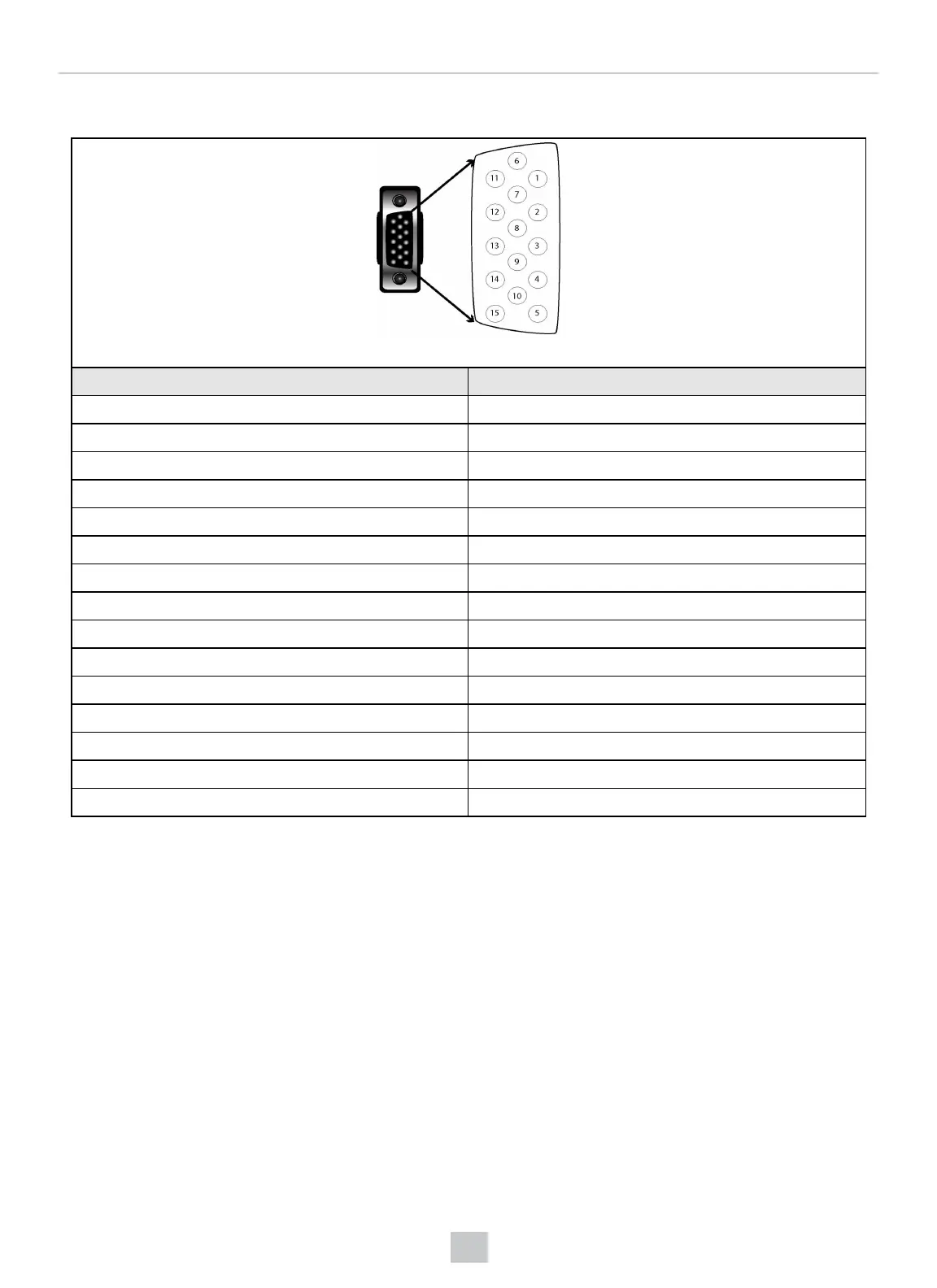

The I/O module with USB has all signals on a SUB-D 15 connector with the following pinouts:
