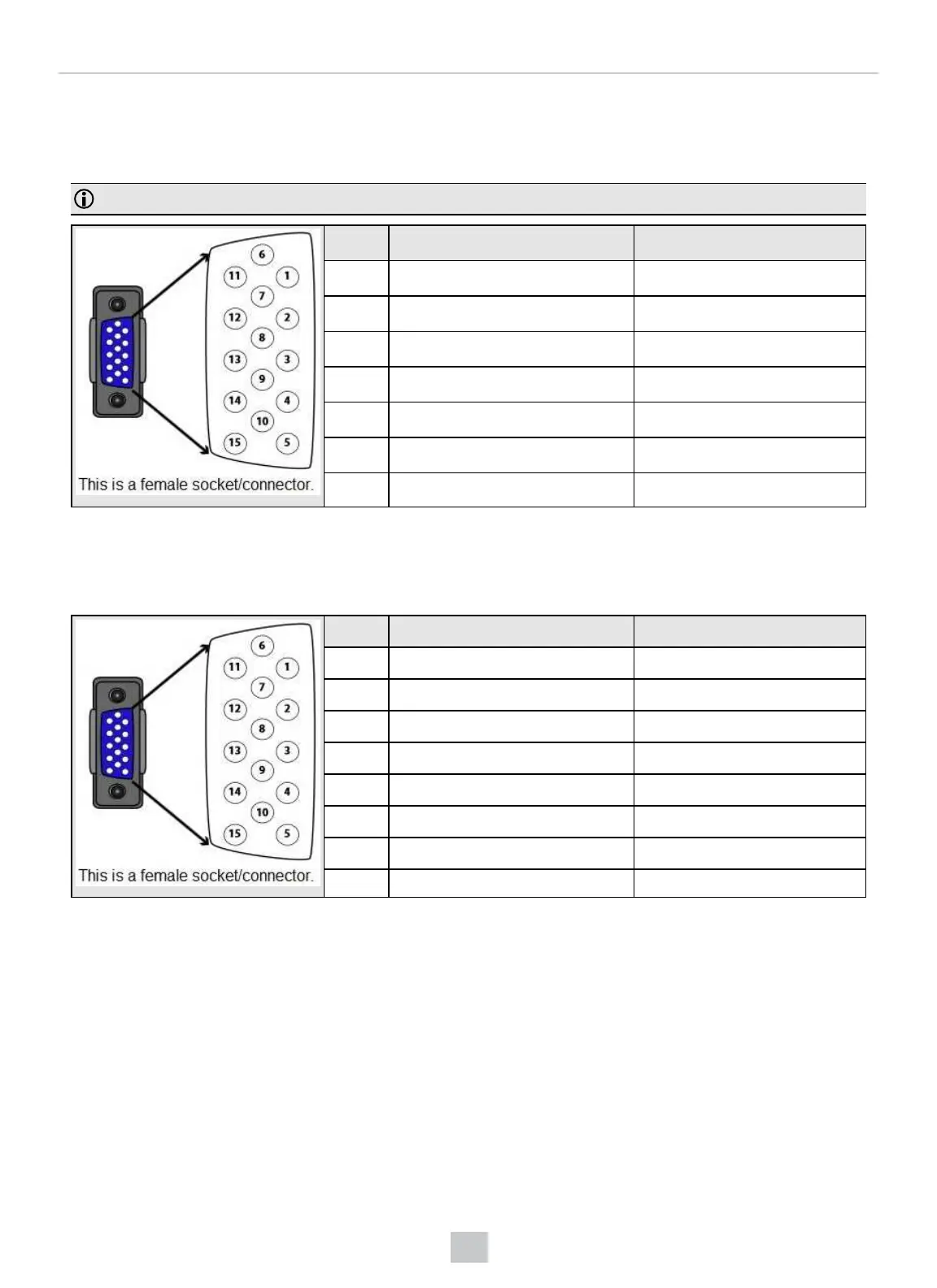

DataMan 70 and 150 Discrete I/O Connector
You can connect a cable with USB & flying leads (DM-USBIO-00) to the cable that is attached to the device. The
following table shows the pinout and color description of the flying leads.
Note: GND (Pin 4) is connected to the reader housing, cable shield, and DB15 shell.
PIN Color Signal
4 Black GND
7 Blue/White Output-0
8 White Input-0
9 White/Black Input-1
11 Light Blue/Black Output-1
12 Light Blue/Yellow Output-Common
13 Light Blue/Green Input-Common
DataMan 70 and 150 RS-232 Cable
You can connect a cable with RS-232 & flying leads (DM-RS232IO-00) to the cable that is attached to the device. The
following table shows the pinout and color description of the flying leads.
PIN Color Signal
4 Black GND
5 Brown/White VDC
7 Blue/White Output-0
8 White Input-0
9 White/Black Input-1
11 Light Blue/Black Output-1
12 Light Blue/Yellow Output-Common
13 Light Blue/Green Input-Common
