Cognex DataMan 50 - DataMan 70 Series Pinout Information

To Next Page

To Previous Page

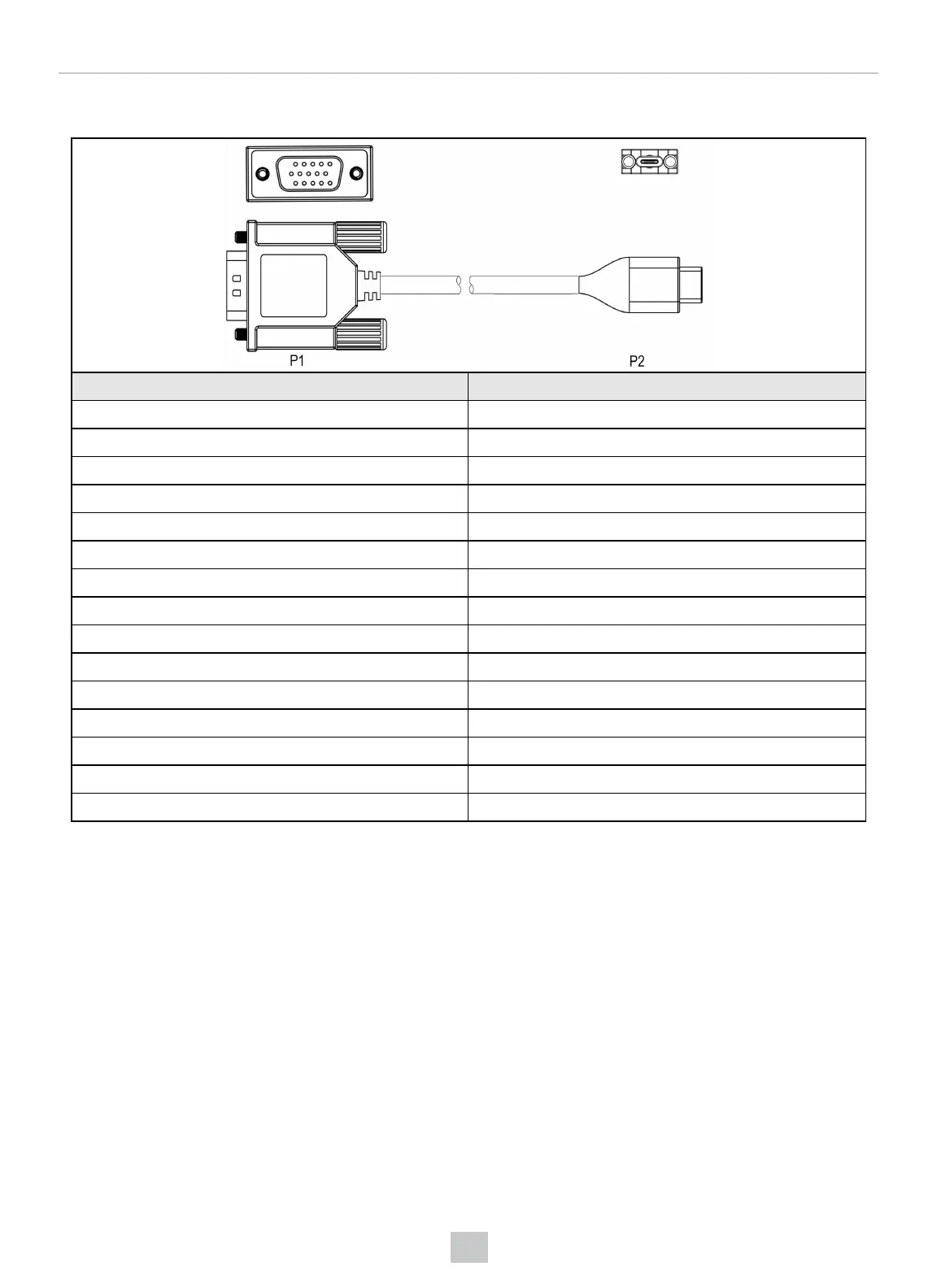

DataMan 70 15 Pin Adapter Cable

P1 Pin Number Signal Name

1 Reserved

2 Reserved

3 Reserved

4 Reserved

5 Reserved

6 Ground

7 TXD

8 RXD

9 Reserved

10 Reserved

11 Adapter Power

12 CTS

13 RTS

14 External Trigger

15 External Illumination
