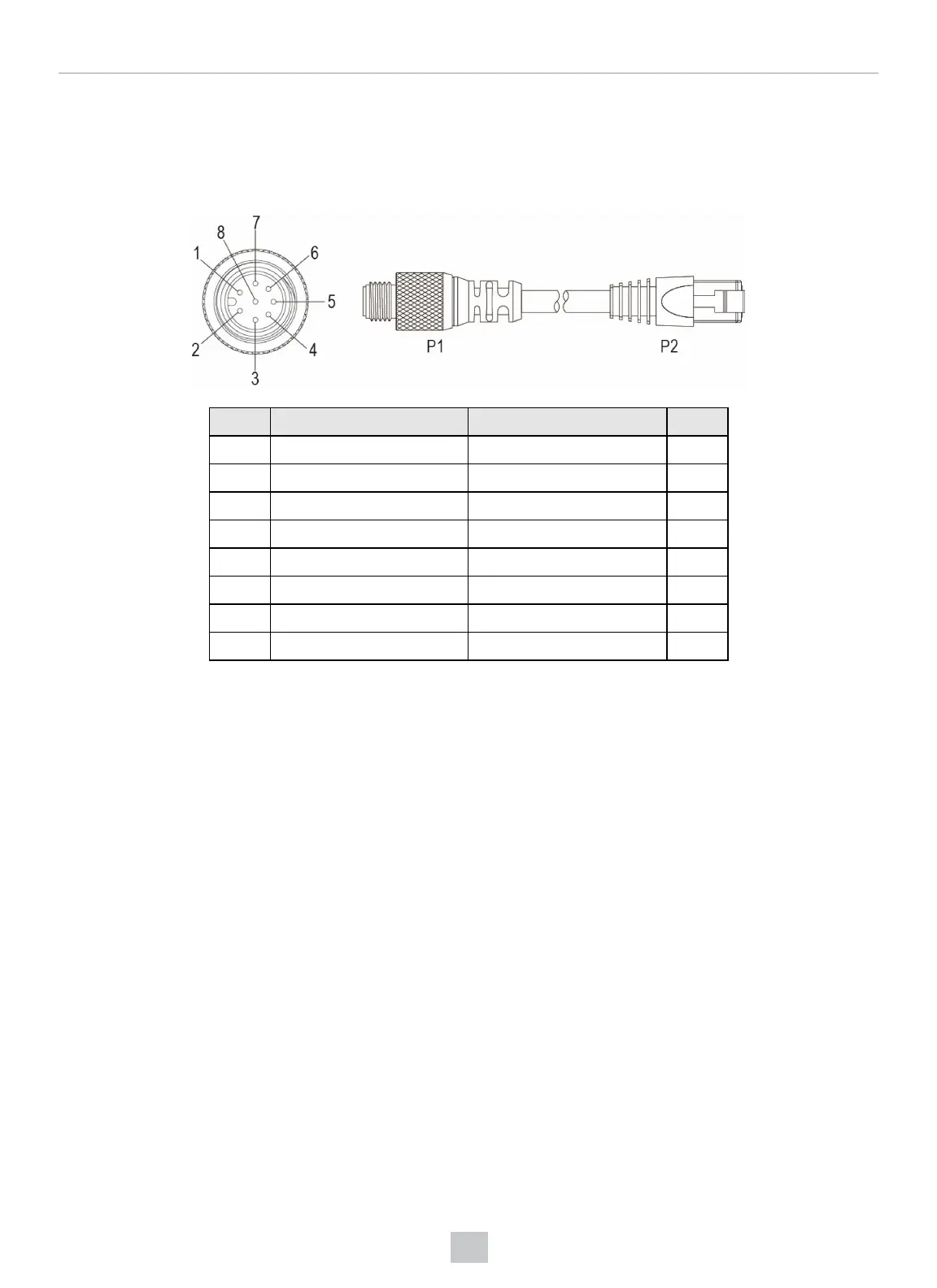

DataMan 300 and 503 Ethernet M12 to RJ45 Cable (CCB-84901-
y00x-xx)
The Ethernet cable provides Ethernet connection for network communications. The Ethernet cable can be connected to a
single device or provide connections to multiple devices via a network switch or router.
P1 Pin# Signal Name Wire Color P2 Pin#
6 TPO+ White/Orange 1
4 TPO- Orange 2
5 TPI+ White/Green 3
7 TRMA Blue 4
1 TRMB White/Blue 5
8 TPI- Green 6
2 TRMC White/Brown 7
3 TRMD Brown 8
