DataMan 300, 360, 370, and 470 Series Readers External Light
Control
The External Light cable is used to connect to an external lighting device, providing power and strobe control.

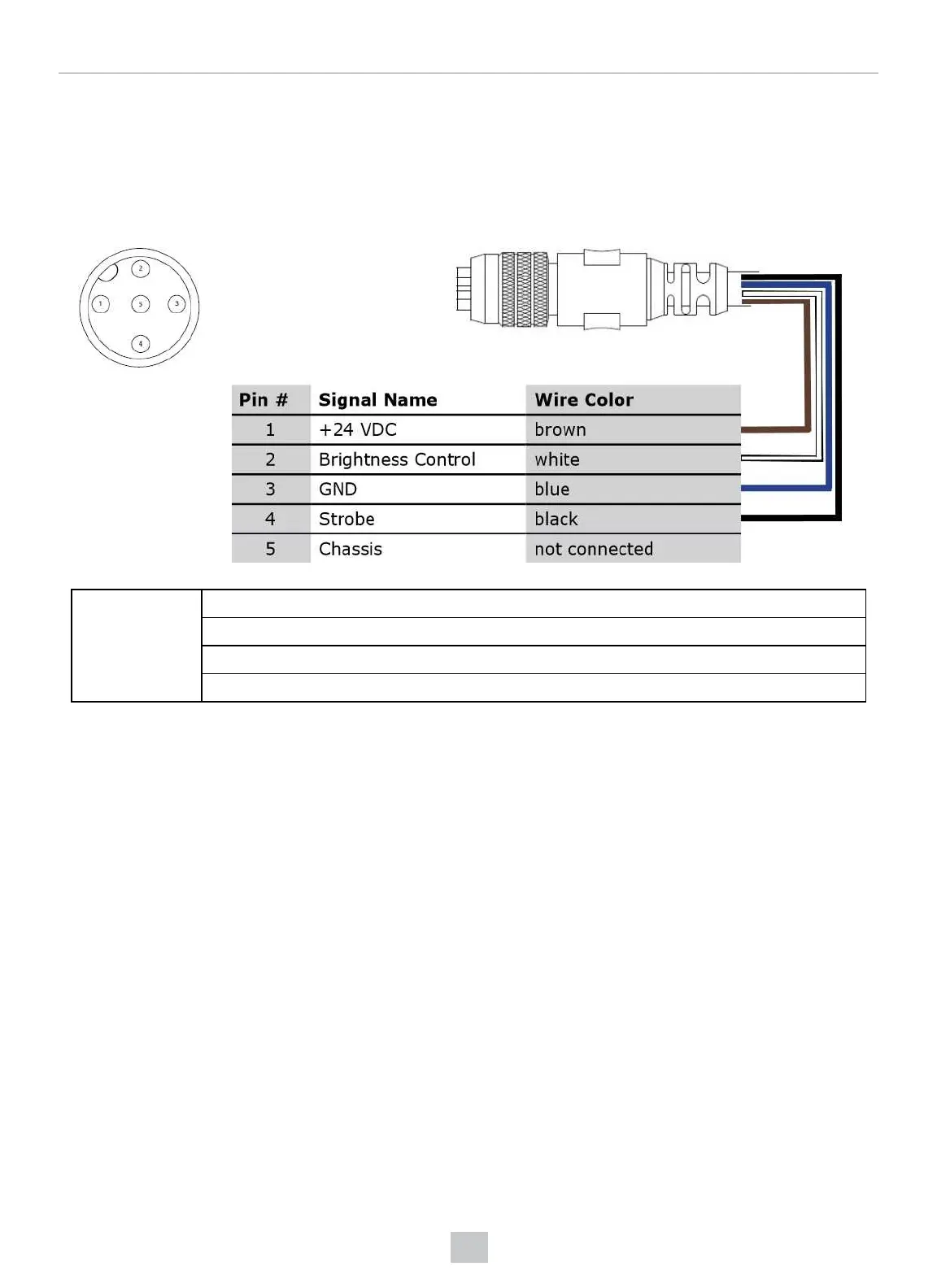

A 4-pin cable is provided for the external light control. The drawing on the left shows the socket on the device. This
socket does not work if the external light is connected to one of the outputs on the breakout cable.
Output Voltage 24 V+/-5% (20 V – 27 V) Voltage may drop depending on the length of the cable.
Max avg Current 1 A
Peak Operating Current 1.5 A up to 100 µs, avg to not exceed 1 A
Max Inrush Current 5 A not exceeding 0.4 As
DataMan 300, 360, 370, and 470 Series Readers Power
Requirements
For the DataMan 300, 360, 370, and 470 series readers, 24 VDC power is provided through the I/O+RS232+24 V cable.
Maximum power consumption is 5 W (internal illumination) or 18 W (internal and external lights).
DataMan 300, 360, 370, and 470 Series and DataMan 503
Readers Acquisition Triggering
The acquisition trigger input on the reader is opto-isolated.
To trigger from an NPN (pull-down) type photo-detector or PLC output, connect Common In to +24 VDC and connect In
to the output of the detector. When the output turns on, it pulls In down to 0 VDC, turning the opto-coupler on.
To trigger from an PNP (pull-up) photo-detector or PLC output, connect In 0 to the output of the detector and connect
Common In to 0 VDC. When the output turns on, it pulls In 0 up to 24 VDC, turning the opto-coupler ON.
115
Electrical Information
