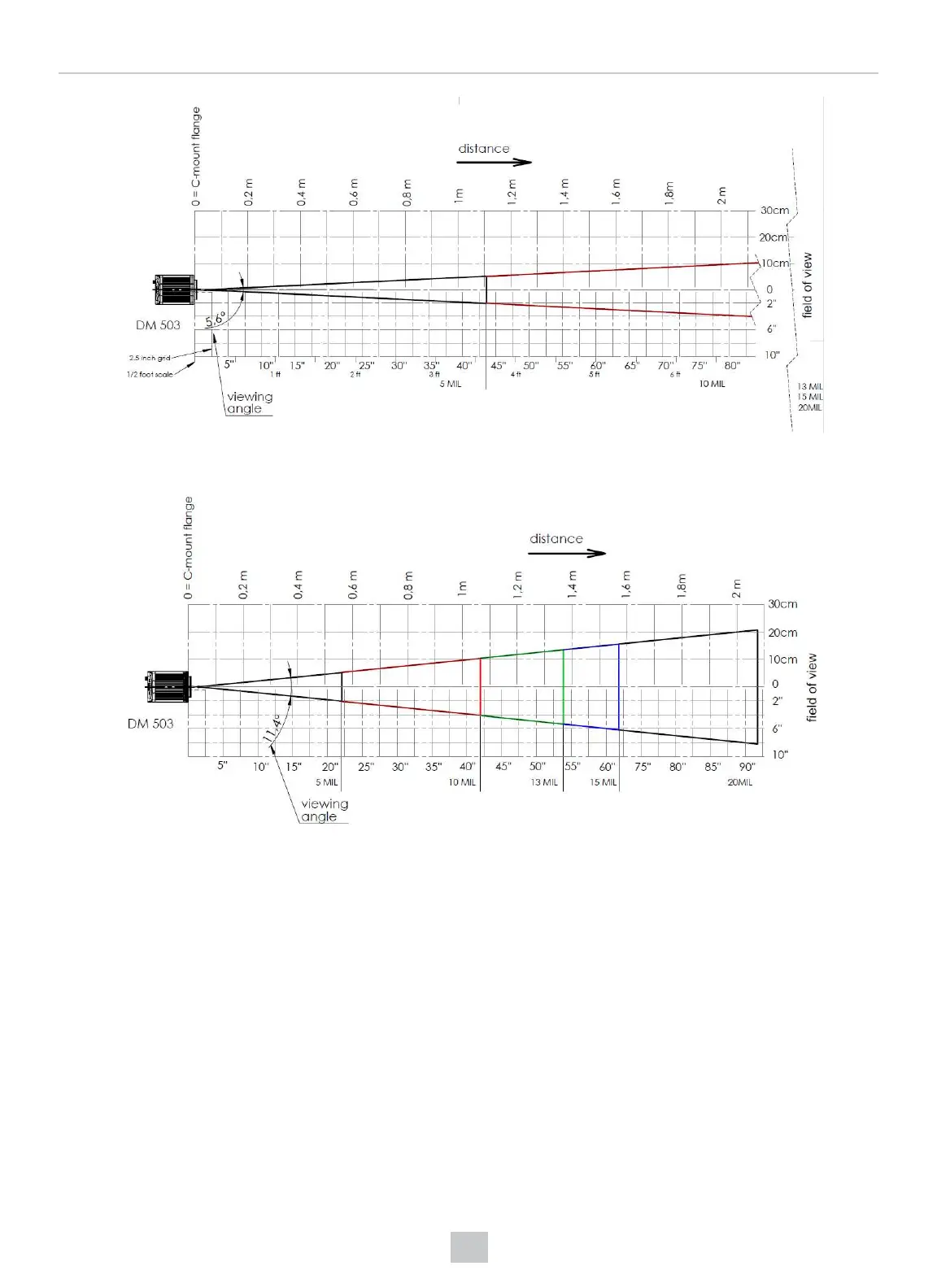

The following map shows the reading distance and field of view charts for the DataMan 503 reader with a 35 mm lens for
2-D codes. The minimum 2-D resolution is at 2.5 pixels per module.
CS-Mount Lens Characteristics
This section provides information on using CS-mount lenses.
DataMan 503 CS-Mount Lens Characteristics
CS-mount lenses must meet the following requirements to be used with DataMan 503:
l No aspect of the lens may protrude past the end of the lens threads.
l The threads must be no more than 4 mm deep.
l The maximum size lens barrel that fits within the CS-mount lens cover is 30 mm long (measured from lens mount
base) and 28 mm in diameter. You can remove the lens (and front) covers from DataMan to fit a larger lens, but
the reader will not maintain its IP rating.
148
Optics and Lighting
