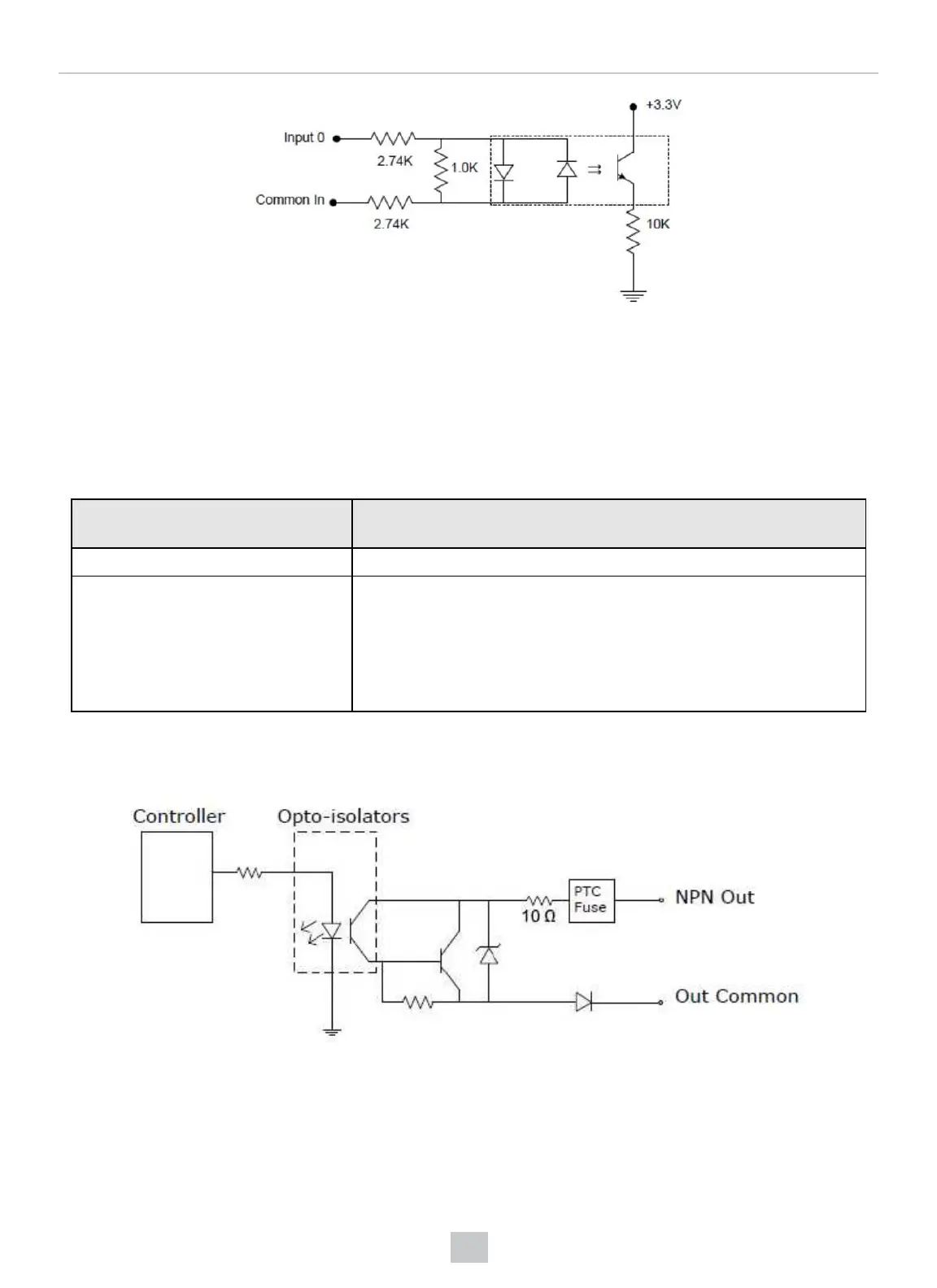

The DataMan 300, 360, 370, and 470 series readers support 26.4 V maximum across input pins – Transition
approximately 12 V (Min.). The DataMan 503 reader supports 28 V maximum across input pins - Transition
approximately 12 V (Min.).
DataMan 300, 360, 370, and 470 Series, and DataMan 503
Readers High-Speed Output Lines
The high-speed outputs can be used as either NPN (pull-down) or PNP (pull-up) lines.
Specification DataMan 300, 360, 370, and 470 Series Readers, and DataMan 503
Reader Description
Voltage 26.4 V maximum through external load
Current 50 mA maximum sink current
OFF state leakage current 100 µA
External load resistance 240 Ohms to 10K Ohms
Each line rated at a maximum 50 mA, protected against over-current, short
circuits and transients from switching inductive loads. High current inductive
loads require external protection diode.
For NPN lines, the external load should be connected between the output and the positive supply voltage (<26.4 VDC).
The outputs pull down to less than 3 VDC when ON, which causes current to flow through the load. When the outputs are
OFF, no current flows through the load.
For PNP lines, the external load should be connected between the output and the negative supply voltage (0 VDC).
When connected to a 24 VDC power supply, the outputs pull up greater than 21 VDC when ON, and current flows
through the load. When the outputs are OFF, no current flows through the load.
116
Electrical Information
