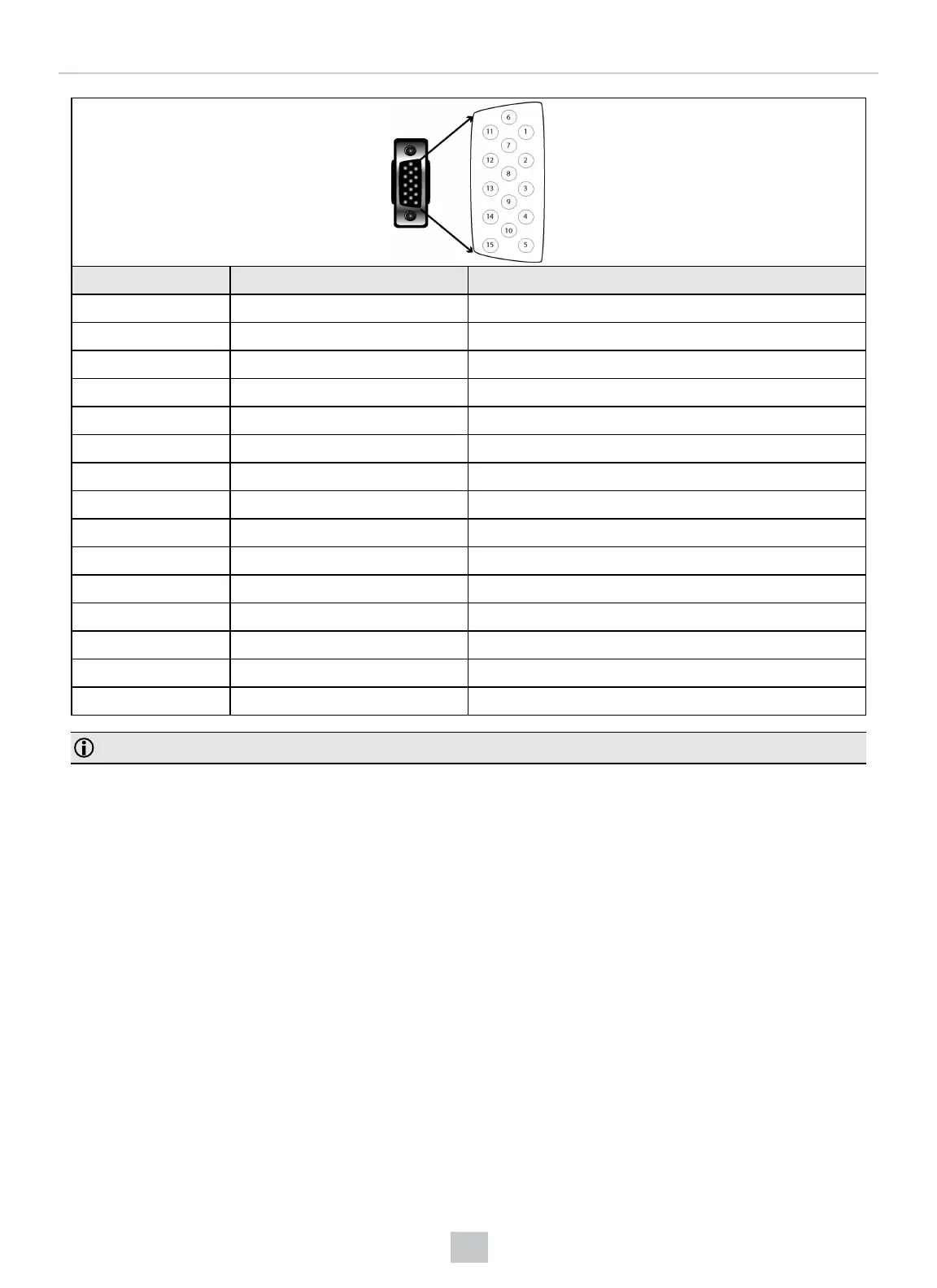

PIN Color Signal
1 Brown Reserved
2 Green TxD (RS-232)
3 Green/Black RxD (RS-232)
4 Red & Red/Black GND
5 Brown/White DC+ (system power, 5-24 VDC)
6 Blue RTS
7 Blue/White Output-0
8 White Input-0
9 White/Black Input-1
10 Light Blue CTS
11 Light Blue/Black Output-1
12 Light Blue/Yellow Output-Common
13 Light Blue/Green Input-Common
14 Yellow Reserved
15 Yellow/Black Reserved
Note: Pin numbers are shown for cable connector, not I/O module.
94
Electrical Information
