Cognex DataMan 50 - Page 143

Device Distances in mm / 1Dmin code
10 mm HSLL
Distances in mm / 2Dmin code
10 mm HSLL
DM47x
445 6 MIL 307 6 MIL
591 8 MIL 408 8 MIL
738 10 MIL 509 10 MIL
958 13 MIL 660 13 MIL
1104 15 MIL 761 15 MIL
1471 20 MIL 1013 20 MIL
Reading Distance and Field of View for DataMan 470 Series Readers with a
16 mm High-Speed Liquid Lens
Note: Due to tolerances, ranges can vary by +/- 5 % from unit to unit.

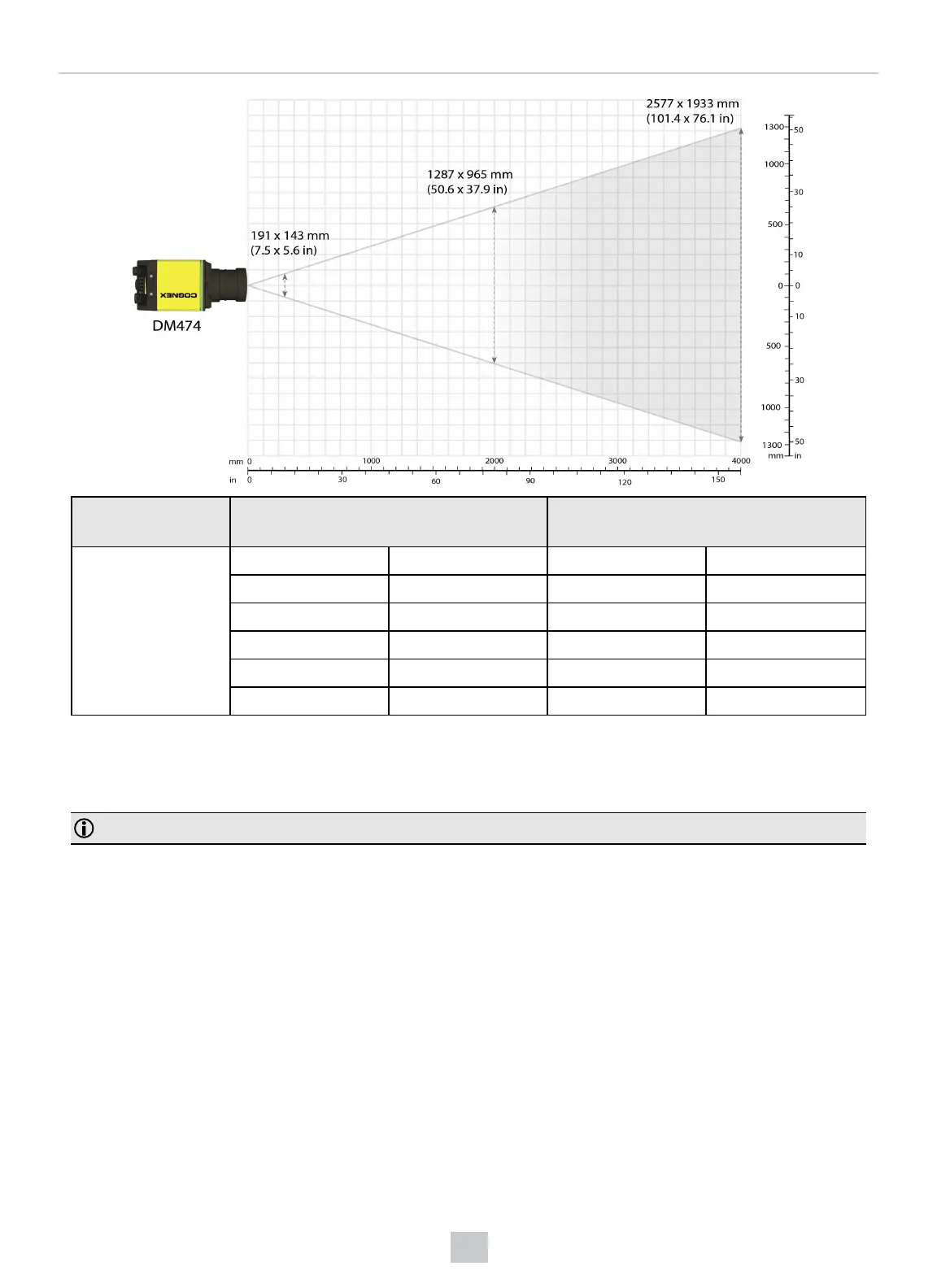

The following map shows the FoV of the DataMan 470 series readers with a 16 mm high-speed liquid lens.
