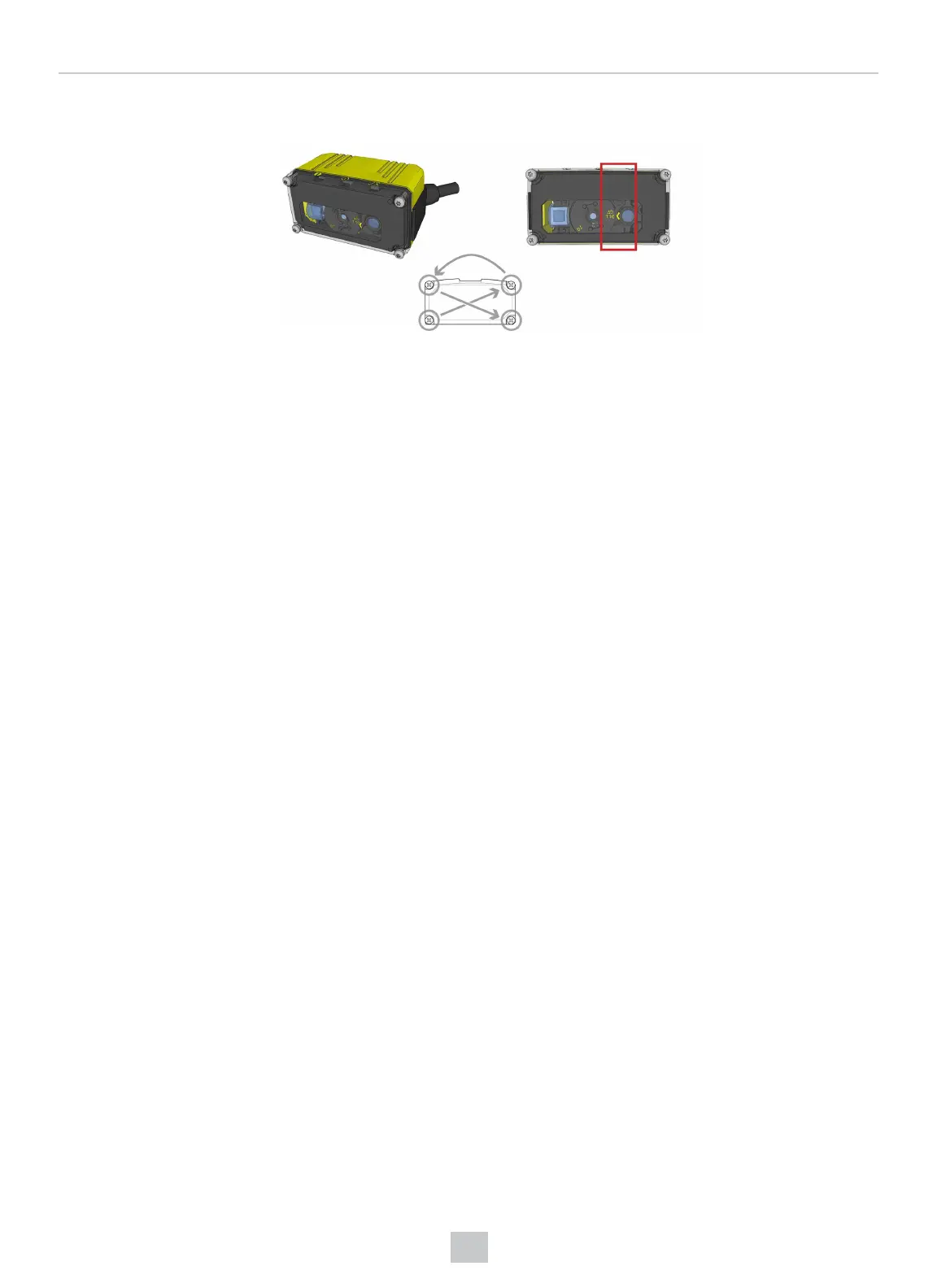

6. Tighten screws in the order shown below. The maximum torque for the cover screws is 5 N-cm (0.4 pound-inch).

The yellow arrow on the cover indicates the selected focus position.

Mechanical Information
